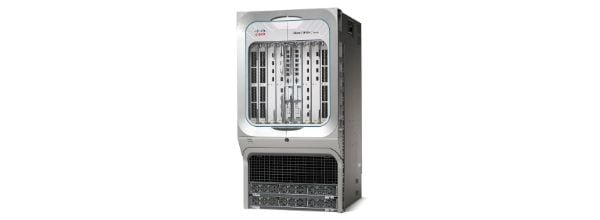

• Cisco ASR-9010-DC 10-slot chassis rack with DC power and LC slots
1 1

Cisco

Cisco ASR-9010-DC | ASR 9000 10-Slot Router Chassis, DC Power, V1

ASR-9010-DC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000 10-Slot Router Chassis is a 21 RU modular service-provider chassis from the Cisco ASR 9000 Series, built for carrier Ethernet, aggregation and edge roles. It suits NEBS-compliant, DC-powered central offices delivering L2VPN and L3VPN business services, IPTV, content delivery networks and mobile backhaul, and it runs Cisco IOS XR Software.

The chassis provides 10 vertical slots: 2 for dual redundant route switch processors with integrated nonblocking fabric, and 8 for line cards. This SKU is the DC-powered V1 chassis with DC power entry modules, taking -40 to -72 V DC input at 50 A nominal and 60 A maximum. It accepts 4.4 kW and 2.1 kW DC power modules with N+1 redundancy and A/B feed redundancy, and AC and DC modules cannot be mixed. Cooling is handled by two fan trays of 12 variable-speed fans each, with front-to-back airflow.

The chassis shares route switch processors, line cards and power entry modules with the ASR 9006, 9904, 9906 and 9910. Compatible fan trays are ASR-9010-FAN and ASR-9010-FAN-V2, with fan filter ASR-9010-FILTER. The chassis itself needs no licence, while software feature licensing depends on the route switch processors and line cards installed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular pay-as-you-grow DC power architecture in field-serviceable power entry modules, with no power zone restrictions
- Nonblocking fabric integrated on the RSP, with dual-RSP active/active redundancy
- Integrated timing infrastructure (SyncE, GPS, BITS, DTI) distributed over the backplane to each slot
- Variable-speed high-efficiency fans for lower power draw and headroom for future line cards
- Fabric, fan, feed, power-supply, RSP and software redundancy
- Cisco IOS XR supports Carrier Ethernet, L2VPN, L3VPN, Segment Routing, SRv6, EVPN, VxLAN, MPLS TE-FRR, MC-LAG, NSF/NSR and H-QoS
- Designed to NEBS Level 3 for carrier central office deployments

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 10-slot, 21 RU, vertical slot orientation
- Slot layout: 2 RSP slots and 8 line-card slots
- Route switch processors: Dual redundant RSPs with integrated fabric
- Fabric: One per RSP, active/active nonblocking in dual-RSP configuration
- DC power input: -40 to -72 V DC, 50 A nominal, 60 A maximum
- Power modules: 4.4 kW and 2.1 kW DC (AC and DC mixing not supported)
- Power redundancy: DC N+1, A/B feed redundancy, PEM redundancy
- Common components: 2 RSPs, 2 fan trays, 2 PEMs, 1 fan filter
- Cooling: 2 fan trays, 12 variable-speed fans per tray
- Airflow: Front-to-back
- Height: 36.75 in. (933.45 mm)
- Width: 17.38 in. (441.45 mm)
- Depth: 28.24 in. (717.3 mm) without doors, 29.03 in. (737.4 mm) with doors
- Weight: 155.6 lb (70.73 kg) chassis with PEM
- Rack mounting: 19-in. default, 21- and 23-in. adapters available
- Operating temperature: 5 to 40 C nominal, -5 to 50 C short-term
- Operating humidity: 5 to 90% RH
- Storage temperature: -40 to 70 C
- NEBS: Designed to meet SR-3580 (Level 3), GR-1089-CORE, GR-63-CORE
- Software: Cisco IOS XR

FAQs

Q: Does this chassis need a licence?
A: The chassis itself needs no licence. Software features run on Cisco IOS XR, and feature licensing depends on the route switch processors and line cards installed.

Q: What DC power does it require?
A: It takes -40 to -72 V DC input, at 50 A nominal and 60 A maximum. It supports 4.4 kW and 2.1 kW DC power modules with N+1 redundancy and A/B feed redundancy.

Q: Can I mix AC and DC power modules?
A: No. AC and DC power modules cannot be mixed in this chassis. This SKU is configured with DC power entry modules.

Q: Which fan trays and filter does it use?
A: Compatible fan trays are ASR-9010-FAN and ASR-9010-FAN-V2, with fan filter ASR-9010-FILTER.

Q: What components are shared with other ASR 9000 chassis?
A: Route switch processors, line cards, power entry modules and power modules are shared with the ASR 9006, 9904, 9906 and 9910.

Q: What rack sizes does it fit?
A: It mounts in 19-in. racks by default, and 21- and 23-in. rack adapters are available. A minimum 17.75-in. opening between posts is needed.
