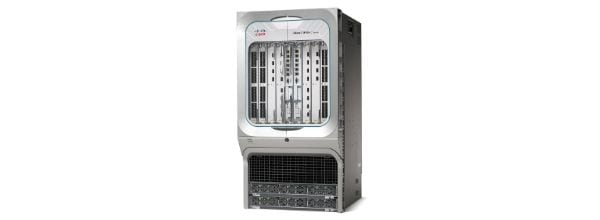

• Cisco ASR-9010-AC-HSBN2 10-slot silver server rack with black accents
1 1

Cisco

Cisco ASR-9010-AC-HSBN2 | ASR 9010 10-Slot Router Chassis, AC, High-Scale

ASR-9010-AC-HSBN2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9010 is a 10-slot, AC-powered chassis bundle from the Cisco ASR 9000 Series, a carrier-grade aggregation and edge router platform running Cisco IOS XR. It is built for service provider edge and aggregation roles, including Carrier Ethernet business services such as L2VPN and L3VPN, IPTV and content delivery.

This High-Scale bundle (HSBN2) is intended for deployments that need high multi-dimensional scale, such as large numbers of VRFs, IPv4 and IPv6 routes, BFD sessions and BGP NSR. High-scale configurations rely on the RSP with 8 GB memory (A9K-RSP-8G). Two redundant route switch processors occupy two slots, leaving the remaining slots for line cards. The chassis takes AC power supplies with a worldwide ranging input of 200-240V, 50-60 Hz, 16A nominal.

The platform shares route switch processors, line cards, power entry modules and power supplies with the ASR 9006. Both RSPs in a chassis must be the same version, either A9K-RSP-4G or A9K-RSP-8G.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed forwarding plane architecture, with line cards forwarding independently
- Redundant RSPs, switch fabric and power for carrier-class availability
- Designed for high 1/10/100-Gbps port densities
- Built-in hardware redundancy and zero-packet-loss fabric signalling on switchover
- Supports Carrier Ethernet services such as L2VPN, L3VPN, IPTV and CDN
- High-scale configurations rely on the A9K-RSP-8G route switch processor with 8 GB memory

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: ASR 9010, 10 slots, AC power
- Bundle: High-Scale (HSBN2)
- Route switch processors: 2 redundant RSPs occupy 2 slots, remaining slots take line cards
- Supported AC power supplies: A9K-3KW-AC, PWR-3KW-AC-V2
- AC power input: 200-240V, 50-60 Hz, 16A nominal (worldwide ranging)
- Redundancy: fabric, power supply, RSP and software redundancy
- Software: Cisco IOS XR
- Operating temperature: 0 to 40 C (32 to 104 F)
- Storage temperature: -40 to 75 C (-40 to 167 F)
- Relative humidity: 10 to 90%, noncondensing
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 (EN55022) Class A, VCCI Class A, BSMI Class A, EN 50121-4
- Safety: UL/CSA/IEC/EN 60950-1, IEC/EN 60825 Laser Safety, AS/NZS 60950, FDA CFR Laser Safety

FAQs

Q: What power supplies does the ASR 9010 AC chassis use?
A: The AC chassis takes A9K-3KW-AC or PWR-3KW-AC-V2 power supplies. The input is worldwide ranging AC at 200-240V, 50-60 Hz, 16A nominal.

Q: Which route switch processors does it work with?
A: It uses the A9K-RSP-4G or A9K-RSP-8G. Both RSPs in the chassis must be the same version, and high-scale configurations rely on the A9K-RSP-8G with 8 GB memory.

Q: Can it share line cards and power modules with the ASR 9006?
A: Yes. The ASR 9010 shares RSPs, line cards, PEMs and power supplies with the ASR 9006, including cards such as the A9K-24x10GE-TR/SE, A9K-2x100GE-TR/SE and A9K-MOD80-TR/SE.

Q: What is the High-Scale bundle designed for?
A: The High-Scale bundle targets deployments needing high multi-dimensional scale, including large VRF counts, IPv4 and IPv6 routes, BFD and BGP NSR, typically at the service provider edge.

Q: How many slots are available for line cards?
A: The chassis has 10 slots in total. Two are occupied by the redundant RSPs, leaving the remaining slots for line cards.
