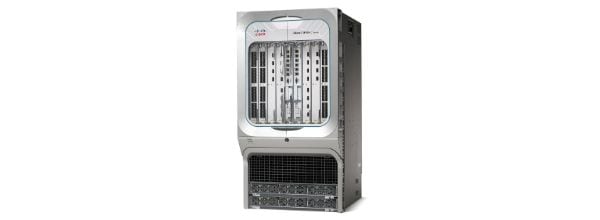

• Cisco ASR-9010-AC 10-slot modular edge router chassis with AC power
1 1

Cisco

Cisco ASR-9010-AC | ASR 9010 10-Slot Router Chassis, AC Power, Non-V2

ASR-9010-AC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9010 is the 10-slot chassis in the Cisco ASR 9000 Series Aggregation Services Routers, built for carrier Ethernet and service provider access and aggregation networks. It suits L2VPN and L3VPN business services, IPTV, content delivery networks and mobile backhaul transport, and runs Cisco IOS XR Software.

This is the AC-powered, original (non-V2) power system version. It takes AC input of 200-240V, 50-60 Hz at 16A nominal, and works with A9K-3KW-AC and PWR-3KW-AC-V2 power supplies. The chassis is designed for no single point of failure, with fabric, power supply, route switch processor and software redundancy, and it uses a matched pair of A9K-RSP-4G or A9K-RSP-8G route switch processors.

The ASR 9010 shares route switch processors, line cards, power entry modules and power supplies with the ASR 9006 chassis. Supported line cards include the A9K-40GE, A9K-8T/4, A9K-4T, A9K-2T20GE and A9K-8T families, the A9K-16T/8-B, A9K-SIP-700, A9K-2x100GE, A9K-24x10GE, A9K-MOD80 and A9K-4T16GE cards.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Powered by Cisco IOS XR, a distributed, self-healing operating system
- Fully distributed forwarding with packet-forwarding decisions made on each line card
- No single point of failure: redundant RSPs, switch fabric, control-plane bus and power supplies
- Zero packet loss on switchover using hardware-based fabric signalling
- Shares RSPs, line cards, PEMs and power supplies with the ASR 9006 chassis
- Supports carrier Ethernet services such as L2VPN, L3VPN, IPTV, CDN and mobile backhaul

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 10-slot router chassis (ASR 9010)
- Power type: AC, original (non-V2) power system
- Operating system: Cisco IOS XR Software
- Route switch processors: dual redundant A9K-RSP-4G or A9K-RSP-8G (both must match)
- AC power input: 200-240V, 50-60 Hz, 16A nominal
- Compatible AC power supplies: A9K-3KW-AC, PWR-3KW-AC-V2
- Redundancy: fabric, power supply, RSP and software, no single point of failure
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85% RH
- Operating humidity (short-term): 5 to 90% RH
- Storage temperature: -40 to 70 C
- Storage relative humidity: 5 to 95%
- Operating altitude: -60 to 4000 m (up to 2000 m conforms to IEC/EN/UL/CSA 60950)
- NEBS: designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE, VZ.TPR.9205

FAQs

Q: Which route switch processors does the ASR-9010-AC take?
A: It takes dual redundant route switch processors, either A9K-RSP-4G or A9K-RSP-8G. Both RSPs in the chassis must be the same version.

Q: What AC power supplies work with this chassis?
A: The supported AC power supplies are A9K-3KW-AC and PWR-3KW-AC-V2. The chassis needs AC input of 200-240V, 50-60 Hz at 16A nominal.

Q: How does ASR-9010-AC differ from the DC and V2 chassis?
A: ASR-9010-AC is the AC-powered chassis with the original (non-V2) power system. Separate part numbers cover the DC versions (ASR-9010-DC) and the V2 versions (ASR-9010-AC-V2, ASR-9010-DC-V2).

Q: Which line cards does the ASR 9010 support?
A: Supported line cards include A9K-40GE, A9K-8T/4, A9K-4T, A9K-2T20GE and A9K-8T in L, B and E variants, plus A9K-16T/8-B, A9K-SIP-700, A9K-2x100GE, A9K-24x10GE, A9K-MOD80, A9K-40GE-TR/SE and A9K-4T16GE-TR/SE.

Q: Can the ASR 9010 share parts with the ASR 9006?
A: Yes. The ASR 9010 and ASR 9006 share route switch processors, line cards, power entry modules and power supplies.
