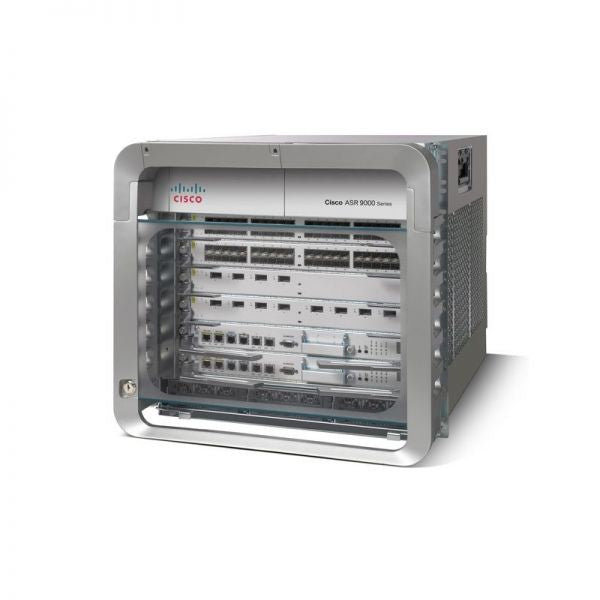

• Cisco ASR-9006-DC-V2 6-slot DC chassis router with ports
1 1

Cisco

Cisco ASR-9006-DC-V2 | ASR 9006 6-Slot Router Chassis, DC Power, PEM V2

ASR-9006-DC-V2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9006 is a 6-slot chassis from the Cisco ASR 9000 Series of carrier-class aggregation routers. This DC-powered version is fitted with the Version 2 power entry module (PEM). It suits service-provider networks that run Carrier Ethernet aggregation and edge services, including L2VPN and L3VPN business services, IPTV, content delivery networks and mobile backhaul, as well as dense 10GbE and 100GbE aggregation.

The chassis takes dual route switch processors, either A9K-RSP-4G or A9K-RSP-8G, and both RSPs must be the same version. It shares its RSPs, line cards, PEMs and power supplies with the ASR 9010. Fabric, power supply, RSP and software redundancy mean there is no single point of failure. Forwarding and control planes are fully distributed, and the router runs Cisco IOS XR Software.

The compatible V2 DC power supply is PWR-2KW-DC-V2. Supported line cards include the A9K-24x10GE-TR/SE, A9K-2x100GE-TR/SE and A9K-MOD80-TR/SE, among others. The PEM Version 2 DC configuration distinguishes this SKU from the AC and original DC chassis variants in the same family.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Distributed forwarding and control planes for higher performance
- Modular hardware and software that isolates failures to the affected subsystem
- Hardware-based fabric signalling with zero packet loss on switchover
- Built-in redundancy across the route switch processor, switch fabric, chassis control bus and power supplies
- Optimised for aggregation of dense 10 GbE and 100 GbE connections
- Carrier-class Cisco IOS XR with process modularity and protected memory
- Carrier Ethernet services including L2VPN, L3VPN, IPTV, CDN and mobile backhaul
- Line-card hierarchical QoS (HQoS), security and Synchronous Ethernet (SyncE)

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: ASR 9006, 6-slot router chassis
- Power: DC with PEM Version 2 (V2)
- Compatible V2 DC power supply: PWR-2KW-DC-V2
- Route switch processors: dual redundant A9K-RSP-4G or A9K-RSP-8G, both the same version
- Power supplies supported across the ASR 9000 family: A9K-3KW-AC, A9K-2KW-DC, A9K-1.5KW-DC, PWR-3KW-AC-V2, PWR-2KW-DC-V2
- Shared components: RSPs, line cards, PEMs and power supplies shared with the ASR 9010
- Redundancy: fabric, power supply, RSP and software redundancy, no single point of failure
- Forwarding: fully distributed forwarding and control planes
- Operating system: Cisco IOS XR Software
- Chassis variants in the family: ASR-9006-AC, ASR-9006-DC, ASR-9006-AC-V2, ASR-9006-DC-V2

FAQs

Q: What power supply does this chassis use?
A: This is the DC-powered chassis with PEM Version 2. The compatible V2 DC power supply is PWR-2KW-DC-V2.

Q: Which route switch processors does it support?
A: It supports dual redundant A9K-RSP-4G or A9K-RSP-8G route switch processors. Both RSPs must be the same version.

Q: Does it share parts with the ASR 9010?
A: Yes. The ASR 9006 shares RSPs, line cards, PEMs and power supplies with the ASR 9010 chassis.

Q: How does this SKU differ from the other ASR 9006 chassis?
A: The ASR 9006 is also offered as ASR-9006-AC, ASR-9006-DC and ASR-9006-AC-V2. This SKU is the DC chassis fitted with the Version 2 PEM.

Q: Which line cards can I install?
A: It takes ASR 9000 line cards such as the A9K-24x10GE-TR/SE, A9K-2x100GE-TR/SE, A9K-MOD80-TR/SE, A9K-40GE-TR/SE and A9K-4T16GE-TR/SE.
