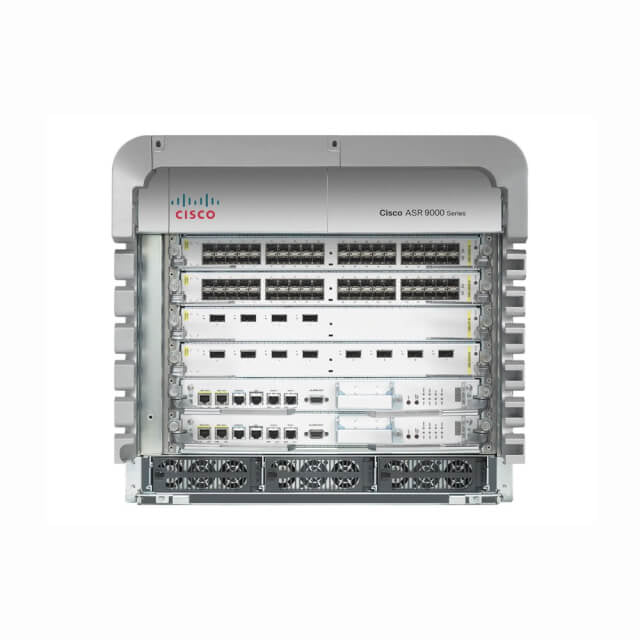

• Cisco ASR 9006 AC V2 6-slot silver black modular router chassis
1 1

Cisco

Cisco ASR-9006-AC-V2 | ASR 9006 6-Slot Router Chassis, AC PEM Version 2

ASR-9006-AC-V2

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9006 is a 6-slot, 10 RU modular router chassis from the Cisco ASR 9000 Series, built for service provider edge and large enterprise aggregation. It suits Ethernet service delivery, carrier Ethernet, MPLS, L2/L3 VPN and high-density 1GE and 10GE aggregation.

This AC, PEM Version 2 variant provides two RSP slots and four line card slots in a horizontal orientation, with fabric integrated on the Route Switch Processor so no separate fabric cards are needed. System capacity is up to 240 Gbps. The Version 2 AC power system takes up to four 3 kW AC power modules with AC N+N redundancy and A/B feed redundancy, and accepts 200-240 V AC at 50-60 Hz. The chassis is designed to meet NEBS criteria and mounts in 19-inch EIA racks, adaptable to 23-inch and ETSI racks.

It works with ASR 9000 RSPs such as the RSP440 and RSP880, ASR 9000 line cards and the V2 fan trays. Version 3 power modules are not supported, and AC and DC power modules cannot be mixed in the same system. The chassis itself needs no licence, while IOS XR software features are licensed separately.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Modular power architecture with field-serviceable PEMs in AC or DC
- Pay-as-you-grow power for future scalability
- Hot-swappable, redundant power and fan components
- Fabric integrated on the RSP, with no separate fabric cards required
- Designed to meet NEBS requirements
- Supports base and extended-scale line cards, from 1GE and 10GE up to 100GE and higher on the ASR 9000 platform

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: ASR-9006-AC-V2 (ASR 9006 AC Chassis with PEM Version 2)
- Slots: 6 (2 RSP slots + 4 line card slots)
- Slot orientation: Horizontal
- Rack units: 10 RU
- Maximum system capacity: 240 Gbps
- Power entry module: Version 2 AC PEM
- Power modules: up to 4 x 3 kW AC power modules
- Power redundancy: AC N+N, A/B feed redundancy
- Power input: 200-240 V AC, 50-60 Hz, 16 A max per power module
- Height: 17.50 in. (444.5 mm)
- Width: 17.38 in. (441.45 mm)
- Weight (chassis with PEM): 40.7 kg (89.55 lb)
- Weight (loaded, excluding line cards and power modules): 65.91 kg (150 lb)
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity: 10 to 85% non-condensing
- Operating altitude: 0 to 4,000 m
- Acoustic noise: 78 dB maximum at 27 C
- Rack mounting: 19-inch EIA, adaptable to 23-inch and ETSI racks
- Compliance: designed to meet NEBS criteria (SR-3580)

FAQs

Q: Does the ASR-9006-AC-V2 need a licence?
A: The chassis itself needs no licence. Software features on the ASR 9000 run on IOS XR and are licensed separately by package or feature.

Q: What power does this chassis use?
A: It uses the Version 2 AC power system, taking up to four 3 kW AC power modules on 200-240 V AC, 50-60 Hz input. AC N+N redundancy is supported, and AC and DC modules cannot be mixed.

Q: Can I use Version 3 power modules in the ASR 9006?
A: No. Version 3 power modules are not supported in the ASR 9006 chassis. Use Version 2 AC power modules with this chassis.

Q: What does the ASR 9006 work with?
A: It works with ASR 9000 RSPs such as the RSP440 and RSP880, ASR 9000 line cards from 1GE and 10GE upwards, and the V2 fan trays.

Q: How do I size power for my configuration?
A: Use the Cisco Power Calculator to size power for your chosen RSPs and line cards, then select the number of 3 kW AC power modules accordingly.
