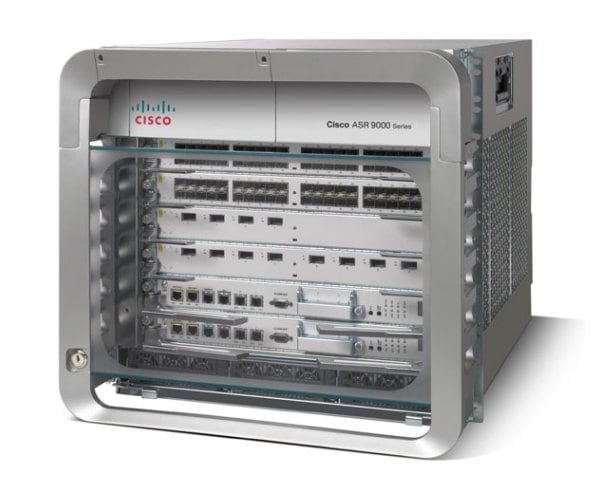

• Cisco ASR-9006-AC 6-slot router chassis with silver casing and ports
1 1

Cisco

Cisco ASR-9006-AC | ASR 9006 6-Slot Router Chassis, AC, V1 Power

ASR-9006-AC

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9006 is a six-slot router chassis from the Cisco ASR 9000 Series, built for carrier-class aggregation and edge routing in service provider networks. It is the smaller sibling of the ASR 9010 and shares route switch processors, line cards, power entry modules and power supplies with it.

This SKU is the AC-powered version using the V1 power system, which takes A9K-3KW-AC power modules. Two of the six slots are used by redundant route switch processors (A9K-RSP-4G or A9K-RSP-8G, both of which must be the same version in a chassis), and the remaining slots hold line cards. The platform provides fabric, power supply, RSP and software redundancy, and is designed to meet NEBS Level 3.

Supported line cards include the A9K-24x10GE, A9K-2x100GE, A9K-MOD80, A9K-40GE and A9K-8T families, among others. The DC and V2 power variants are separate part numbers, so confirm the V1 AC power system suits your existing power shelf and spares.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Shares RSPs, line cards, power entry modules and power supplies with the ASR 9010
- Distributed forwarding plane architecture
- Fabric redundancy and RSP redundancy
- Power supply and software redundancy with no single point of failure
- Designed to meet NEBS Level 3
- Supports A9K-24x10GE, A9K-2x100GE, A9K-MOD80, A9K-40GE and A9K-8T line card families

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Chassis: 6-slot router chassis
- Power system: AC, V1
- Compatible AC power module: A9K-3KW-AC
- RSP slots: 2 slots for redundant RSPs, remaining slots for line cards
- Supported RSPs: A9K-RSP-4G or A9K-RSP-8G
- Redundancy: fabric, power supply, RSP and software
- Operating temperature (nominal): 5 to 40 C
- Operating temperature (short-term): -5 to 55 C
- Operating humidity (nominal): 10 to 85%
- Operating humidity (short-term): 5 to 90%
- Storage temperature: -40 to 70 C
- Storage relative humidity: 5 to 95%
- Operating altitude: -60 to 4000 m
- NEBS: designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE, VZ.TPR.9205

FAQs

Q: Which power modules does this AC V1 chassis use?
A: The V1 AC power system uses A9K-3KW-AC power modules. The V2 power system uses PWR-3KW-AC-V2 and is sold under a different chassis part number.

Q: Which route switch processors can I install?
A: The chassis supports redundant A9K-RSP-4G or A9K-RSP-8G route switch processors. Both RSPs in a chassis must be the same version, and they occupy two of the six slots.

Q: Which line cards work in the ASR 9006?
A: Supported line cards include the A9K-40GE, A9K-8T, A9K-4T, A9K-2T20GE, A9K-16T/8, A9K-SIP-700, A9K-2x100GE, A9K-24x10GE, A9K-MOD80 and A9K-4T16GE families.

Q: How does this SKU differ from the other ASR 9006 variants?
A: ASR-9006-AC is the AC-powered chassis with the V1 power system. The DC, AC V2 and DC V2 versions are separate part numbers with different power systems.
