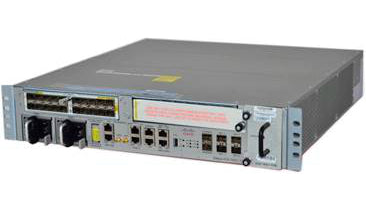

Cisco ASR-9001-S | ASR 9001-S 60G Router, 2x 10GE, Upgradable to 120G

ASR-9001-S

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9001-S is a compact 2RU aggregation services router from the Cisco ASR 9000 family, built for service provider edge and Carrier Ethernet aggregation. It suits business L2VPN and L3VPN services, IPTV, CDN delivery, mobile backhaul and broadband network gateway roles, and can also run as a dedicated route-reflector appliance. It runs Cisco IOS XR Software, the same operating system image used across the ASR 9000 range.

This 60G base SKU provides 60 Gbps of nonblocking full-duplex fabric capacity with two of the four integrated 10 Gigabit Ethernet SFP+ ports enabled, plus two modular port adapter bays that accept 1GE, 10GE and 40GE adapters. An integrated route switch processor carries 8 GB of RAM. Timing options include BITS and SSU inputs, GPS input for Stratum-1 clocking and hardware-based IEEE 1588 support. Capacity can be raised to 120 Gbps with licence A9K-9001-120G-LIC, which also enables the remaining two 10GE SFP+ ports and the second adapter bay.

Power is supplied by redundant AC or DC power entry modules, with typical consumption of 375 W and a maximum of 425 W. Compatible port adapters include the A9K-MPA-20x1GE, A9K-MPA-2x10GE, A9K-MPA-4x10GE and A9K-MPA-1x40GE.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Scalable fabric supporting 1, 10 and 40 Gigabit densities in 2RU
- Distributed forwarding plane, so port adapters forward independently
- Integrated route processor suitable for use as a dedicated route-reflector appliance
- Two 10GE control plane extension ports for high-availability cluster applications
- Hardware-based IEEE 1588 timing with BITS and SSU clock inputs and GPS Stratum-1 input
- Supports L2VPN, L3VPN, IPv4/IPv6, multicast, IPoDWDM and SyncE
- Supports HQoS, MPLS TE-FRR, MC-LAG, IRB, NSF/NSR and EOAM/MPLS OAM
- Embedded USB port for software image loading and recovery

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: 2RU
- Fabric capacity: 60 Gbps nonblocking full-duplex, upgradable to 120 Gbps by licence
- Integrated interfaces: 2 x 10GE SFP+ enabled by default, 2 more via licence
- Modular port adapter bays: 2
- Supported port adapters: 20 x 1GE, 2 x 10GE, 4 x 10GE, 1 x 40GE
- Integrated RSP memory: 8 GB RAM
- Power supply options: A9K-750W-AC or A9K-750W-DC, redundant
- Power input: AC 90-265V, 50-60 Hz; DC -40V to -72V
- Power consumption: 375 W typical, 425 W maximum
- Dimensions (H x W x D): 88.2 x 442 x 470 mm
- Weight: 13.7 kg chassis, 16.5 kg with two MPAs
- Operating temperature: 5 to 40 C nominal, -5 to 55 C short-term
- Operating humidity: 10 to 85% RH nominal
- Storage temperature: -40 to 70 C
- Air flow: Side to side
- Timing: BITS, SSU, GPS input for Stratum-1 clocking
- Software: Cisco IOS XR, release 4.3.1 or later
- NEBS: Designed to meet SR-3580 Level 3, GR-1089-CORE, GR-63-CORE
- EMC: FCC Class A, ICES 003 Class A, AS/NZS 3548 Class A, CISPR 22 Class A

FAQs

Q: Does the ASR 9001-S need a licence to reach 120G?
A: Yes. This SKU ships at 60G with two 10GE SFP+ ports enabled. Licence A9K-9001-120G-LIC raises capacity to 120 Gbps and enables the other two 10GE SFP+ ports and the second port adapter bay.

Q: Which port adapters work with the ASR 9001-S?
A: The A9K-MPA-20x1GE, A9K-MPA-2x10GE, A9K-MPA-4x10GE and A9K-MPA-1x40GE modular port adapters. The 40GE adapter needs IOS XR 4.2.3 or later, and the others need 4.2.1 or later.

Q: What power supplies does it use?
A: Redundant A9K-750W-AC or A9K-750W-DC power entry modules. AC input is 90-265V at 50-60 Hz, and DC input is -40V to -72V. Typical draw is 375 W, with a 425 W maximum.

Q: Which software does it run?
A: Cisco IOS XR Software, release 4.3.1 or later. It uses the same IOS XR image as the rest of the ASR 9000 family.

Q: Does it support site-to-site IPSec VPN?
A: No. Site-to-site IPSec VPN is not supported on the ASR 9001-S. It is aimed at provider edge, aggregation and MPLS VPN services instead.
