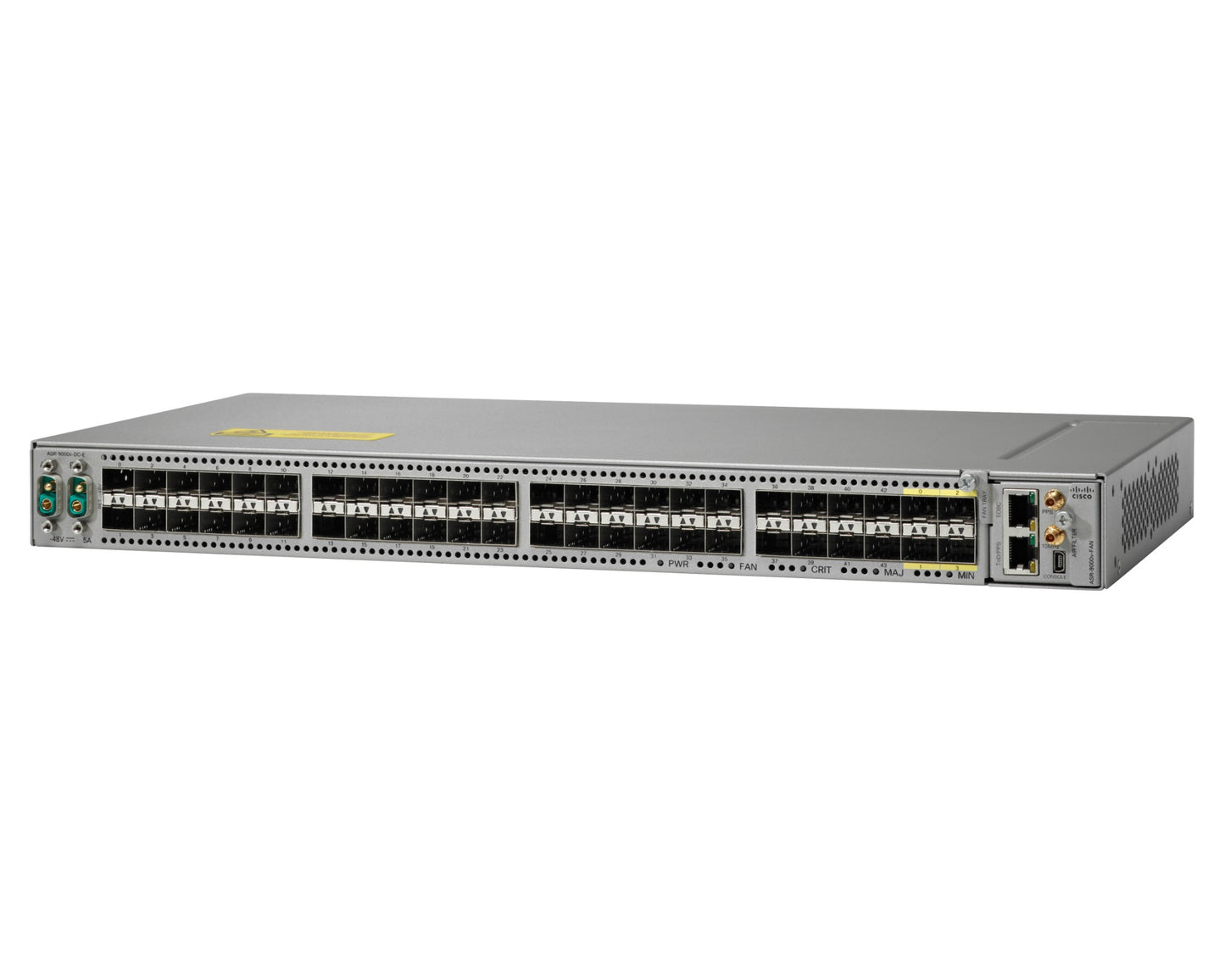

• Cisco A9KV-V2-DC-E silver switch with 44xGE ports and 4x10GE uplinks
1 1

Cisco

Cisco A9KV-V2-DC-E | ASR 9000v 44-Port GE Router, 4x 10G, DC Power, ETSI

A9KV-V2-DC-E

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000v-V2 is a satellite shelf that extends the control plane of a Cisco ASR 9000 Series host router. It suits access and aggregation port extension in carrier or ETSI-rack environments with DC power, such as central offices and telco sites, adding Gigabit and 10 Gigabit Ethernet ports without adding separately managed devices.

This SKU is the DC-powered ETSI chassis version with 44 Gigabit Ethernet access ports and 4 x 10 Gigabit Ethernet ports. It has two redundant ETSI-compliant DC inputs (DC-A and DC-B), a front-accessed field-replaceable fan tray with filter, and 10-MHz and 1-PPS timing inputs. The 1U shelf measures 43.1 mm high and 231.1 mm deep, and is 482.6 mm wide, or 533.4 mm with the ETSI mounting ears.

The shelf operates as an nV satellite to ASR 9000 Series host routers running IOS XR and can be connected to multiple redundant hosts. The host router needs an ASR 9000 nV Host licence (A9K-NVSAT1-LIC, A9K-NVSAT5-LIC or A9K-NVSAT20-LIC, covering 1, 5 or 20 satellite clients). The spare fan tray part number is A9KV-V2-FAN.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Extends the ASR 9000 host control plane, with resiliency against shelf, access port and fabric port failures
- Can be connected to multiple redundant Cisco ASR 9000 Series hosts
- Supports the nV (Network Virtualization) satellite architecture
- Redundant ETSI-compliant DC power inputs
- Front-accessed field-replaceable fan tray and filter
- 10-MHz and 1-PPS timing interfaces
- Ethernet management port for optional local management

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Product ID: A9KV-V2-DC-E
- Description: 44-Port GE + 4-Port 10GE ASR 9000v Version 2, DC Power ETSI Chassis
- Access ports: 44 x Gigabit Ethernet
- Uplink/fabric ports: 4 x 10 Gigabit Ethernet
- Power inputs: Two redundant ETSI-compliant DC inputs (DC-A and DC-B)
- Form factor: 1U satellite shelf
- Height: 1.7 in (43.1 mm)
- Width: 19 in (482.6 mm) body; 21 in (533.4 mm) with ETSI mounting ears
- Depth: 9.1 in (231.1 mm)
- Weight (DC power module): 4.22 kg
- Fan tray: A9KV-V2-FAN, field-replaceable, with filter
- 10-MHz timing input: Sine wave, > 1 V LVTTL compatible, 50 Ohm impedance
- 1-PPS timing input: Pulse, > 1 V LVTTL compatible, 50 Ohm impedance
- Management: EOBC Ethernet management port

FAQs

Q: Does the satellite shelf need its own licence?
A: No licence for the shelf itself is required. The host ASR 9000 router needs an nV Host licence: A9K-NVSAT1-LIC, A9K-NVSAT5-LIC or A9K-NVSAT20-LIC, covering 1, 5 or 20 nV satellite clients.

Q: What power does the A9KV-V2-DC-E use?
A: It has two redundant ETSI-compliant DC power inputs, DC-A and DC-B.

Q: What does it connect to?
A: It operates as an nV satellite to Cisco ASR 9000 Series host routers running IOS XR, and can be connected to multiple redundant hosts.

Q: How does it differ from the other A9KV-V2 models?
A: The A9KV-V2-DC-E is the DC-powered ETSI version. The A9KV-V2-AC is the AC-powered model and the A9KV-V2-DC-A is the DC-powered ANSI version.

Q: What is the spare fan tray part number?
A: The field-replaceable fan tray with filter is part number A9KV-V2-FAN.
