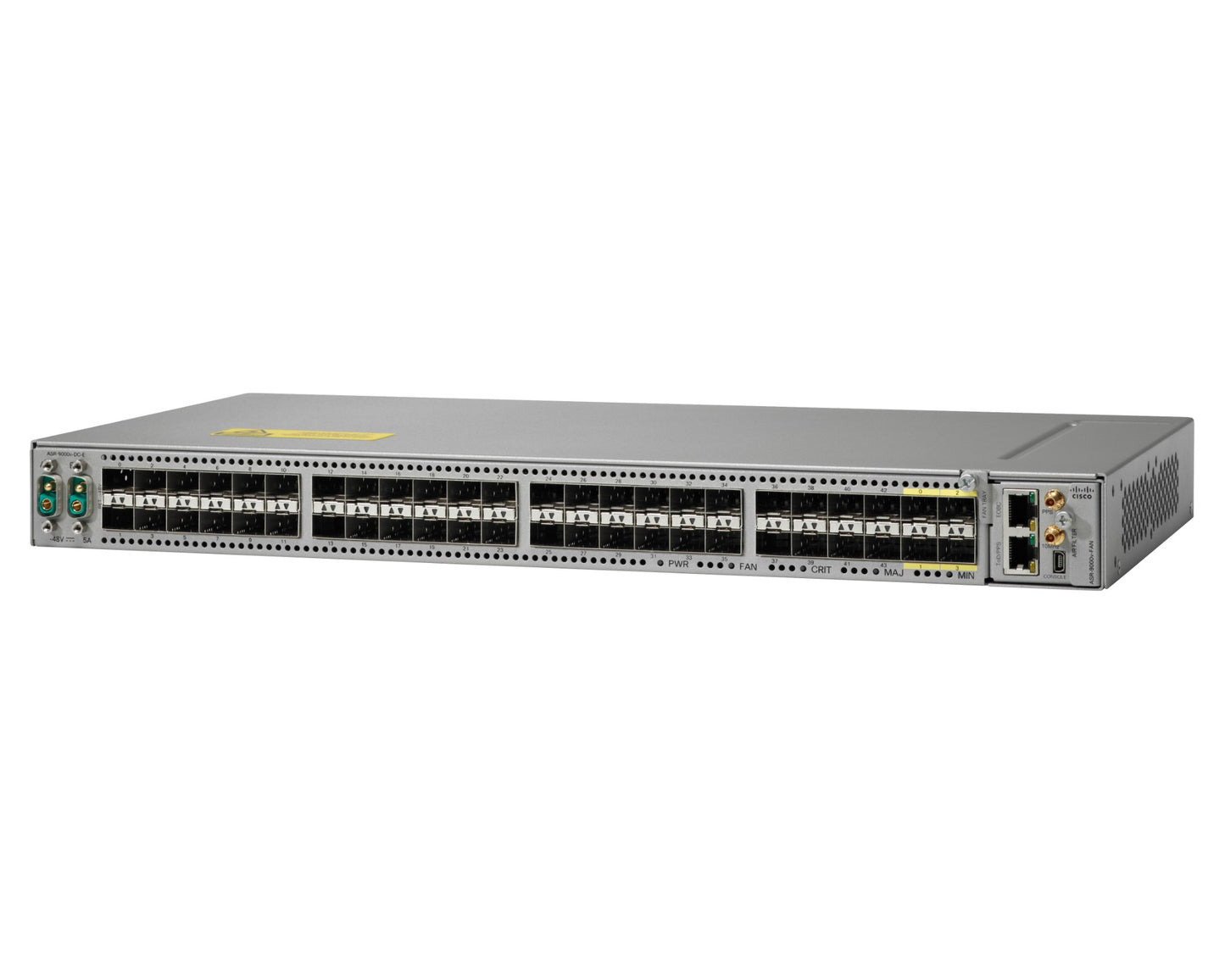

• Cisco A9KV-V2-DC-A silver switch with 44 GE ports and 4 10GE uplinks
1 1

Cisco

Cisco A9KV-V2-DC-A | ASR 9000v V2 Router, 44x GE, 4x 10G, DC ANSI

A9KV-V2-DC-A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 9000v V2 is a compact, environmentally hardened, front-access nV satellite shelf for the Cisco ASR 9000 Series. It extends the IOS XR services and control plane of the host router out to access locations, so remote points of presence, cabinets and non-temperature-controlled sites can be served without a standalone network element to manage.

This SKU is the DC ANSI chassis with 44 SFP ports at 10, 100 and 1000 Mbps and 4 SFP+ 10GE ports, with two redundant A/B DC feeds. It accepts -36V to -74V DC input and draws a nominal 120 W, 170 W at maximum. It is rated for operation from -40C to +65C and meets NEBS GR-1089 Issue 5 and GR-63 Issue 3. The 1RU chassis is 442 mm wide and weighs 4.22 kg.

The shelf operates only as a satellite of a Cisco ASR 9000 Series host running IOS XR 5.2.2 or later. Management is through the host's IOS XR CLI and management systems. The matching spare fan tray is A9KV-V2-FAN=.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- nV technology extends the ASR 9000 host control plane and management to the satellite shelf
- Can be deployed adjacent to or remotely from the host, including over DWDM
- Can connect to multiple redundant ASR 9000 hosts for resilience against shelf, access port and fabric port failures
- Managed through the host's IOS XR CLI, EMS/NMS and software management
- Ultra-low power draw and compact footprint
- Environmentally hardened for cabinets and non-temperature-controlled buildings
- Front-access serviceability, with wall mounting or back-to-back mounting options
- Field-replaceable fan tray and filter
- Supported by the ASR 9000 Craft Tool (ACT) and Cisco Prime for Service Providers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Interfaces: 44 x SFP ports (10/100/1000 Mbps)
- Interfaces: 4 x SFP+ 10GE ports
- Power inputs: ANSI DC-A and DC-B, two redundant DC inputs
- DC input voltage: -36V to -74V DC
- Power consumption: nominal 120 W, maximum 170 W
- Management ports: EOBC Ethernet management port and console serial port
- Time of day (ToD) / PPS: reserved for future use
- Dimensions (H x W x D): 39.62 x 442.39 x 231.01 mm (1.56 x 17.42 x 9.1 in)
- Weight: 4.22 kg (9.30 lbs)
- Form factor: 1RU
- NEBS: GR-1089 Issue 5 and GR-63 Issue 3
- Operating temperature: -40C to +65C
- Operating humidity: 5-85% non-condensing, guaranteed up to 95% non-condensing
- Storage temperature: -40C to +70C
- Storage relative humidity: 93% non-condensing
- Operating altitude: up to 4000 m (13,123 ft)
- Minimum host software: IOS XR 5.2.2 on the ASR 9000 host

FAQs

Q: Does the ASR 9000v V2 need its own licence?
A: No standalone licence is described for the satellite shelf. Its features and services come from the ASR 9000 Series host running IOS XR, and the satellite software images are managed through the host.

Q: What power does this SKU use?
A: This is the DC ANSI chassis with redundant A/B feeds. It accepts -36V to -74V DC and draws a nominal 120 W, up to 170 W at maximum.

Q: Can it be used as a standalone router?
A: No. It operates only as an nV satellite of a Cisco ASR 9000 Series host and needs IOS XR 5.2.2 or later on that host.

Q: Which fan tray is the spare for this shelf?
A: The matching spare fan tray is A9KV-V2-FAN=. The fan tray and filter are field-replaceable from the front of the chassis.

Q: How does this SKU differ from other ASR 9000v V2 variants?
A: This SKU is the DC-powered ANSI chassis with dual A/B DC feeds and an input range of -36V to -74V DC.
