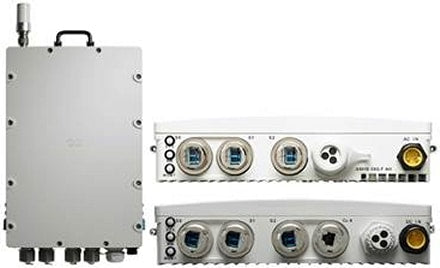

• Cisco A901S-3SG-F-D rugged cell-site router with silver black modular connectors
1 1

Cisco

Cisco A901S-3SG-F-D | ASR 901S Rugged Router, 3x 1G SFP + RJ45, DC Power

A901S-3SG-F-D

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 901S is a compact, fanless aggregation router built for cell-site and small cell backhaul. This DC-powered model uses an IP65-rated enclosure, so it can be mounted outdoors on walls, brackets and lampposts where a conventional router would not survive.

It combines 3x 1G SFP ports with a 1G RJ45 port for flexible copper and fibre connections. Passive cooling removes the fan as a point of failure, and the unit is designed for ambient operation from -40 to 65 C. Maximum power consumption is under 40 W without PoE+, and this DC variant is aimed at sites with DC power feeds. It scales to 32,000 MAC addresses and 4,000 bridge domains.

The software supports Layer 2, Layer 3 and MPLS deployment models, including MPLS L3VPN, OSPF, BGP, IS-IS and IPv6 routing, plus Carrier Ethernet OAM tools. This suits mobile operators and service providers aggregating small cells over Ethernet and IP transport.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 2, Layer 3 and MPLS deployment models
- Ethernet Virtual Connections with 802.1q, 802.1ad QinQ and selective QinQ
- REP, MSTP, 802.3ad link aggregation, EoMPLS and pseudowire redundancy
- Layer 3 routing with OSPF, BGP, IS-IS, BFD, MPLS L3VPN and IPv6
- HSRP and VRRP gateway redundancy
- Carrier Ethernet OAM including CFM, Y.1731 and Y.1564
- Compact outdoor enclosure designed for small cell backhaul

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Enclosure rating: IP65
- Cooling: Fanless, passive
- Ports: 3x 1GbE SFP, 1x 1GbE RJ45
- Power input: DC
- Maximum power consumption: under 40 W without PoE+
- Operating temperature: -40 to 65 C (-40 to 149 F)
- MAC address scale: up to 32,000
- Bridge domains: up to 4,000
- Mounting: brackets, walls, lampposts

FAQs

Q: What power input does this model use?
A: This is the DC-powered variant, as shown by the -D suffix. Maximum power consumption is under 40 W without PoE+.

Q: Does this model support PoE+ on the copper port?
A: No. PoE+ on the copper ports is only offered on the AC variant of the ASR 901S.

Q: Can it be installed outdoors?
A: Yes. The enclosure is IP65-rated and the unit is fanless, with a designed operating range of -40 to 65 C.

Q: What is it typically used for?
A: It is used for small cell backhaul, aggregating multiple small cells over Ethernet and IP using MPLS, REP, L2VPN and L3VPN transport.

Q: How does it differ from the AC-powered version?
A: The -D variant takes DC input, while the AC variant takes AC input and adds PoE+ on its copper ports.
