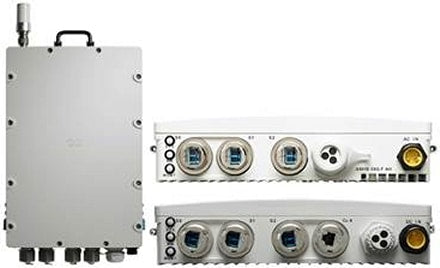

• Cisco A901S-3SG-F-AH rugged cell-site router with modular ports
1 1

Cisco

Cisco A901S-3SG-F-AH | ASR 901S Router, 3x SFP, AC PSU, 1 PoE+ Port

A901S-3SG-F-AH

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The ASR 901S is a compact, IP65-rated, fanless aggregation router built for outdoor cell-site backhaul. It suits mobile operators and integrators deploying Cisco Unified RAN Backhaul at the cell site, with mounting on brackets, walls or lampposts.

This AC-powered variant provides three external 1GbE SFP ports, plus a gland interface that carries one internal SFP and two internal RJ45 copper ports. It includes one PoE+ (802.3at) port with 1 second holdover. Maximum power consumption is under 40 W without PoE+, and the enclosure operates across an ambient range of -40 to 65 C with passive cooling and no fan.

The ASR 901S supports Layer 2, Layer 3 and MPLS deployment models, along with Ethernet Virtual Connections using 802.1q and 802.1ad (QinQ). Carrier-grade OA&M tools include CFM, Y.1731 and Y.1564 compliance. External connectivity uses a sealed LC cabling system, and the alarm, management and console cable is routed through the gland.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Supports Layer 2, Layer 3 and MPLS deployment models
- OA&M tools including CFM, Y.1731 FM/PM, Y.1564 compliance and service loopback
- Ethernet Virtual Connections with 802.1q, 802.1ad (QinQ), selective QinQ and inner/outer VLAN classification
- IP65-compliant compact enclosure designed for outdoor deployments
- Completely fanless passive cooling design
- Flexible combination of copper and SFP 1GbE ports
- Sealed LC cabling for external connectivity and IP65 power entry connector
- Proven interoperability with multiple microwave vendors

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: A901S-3SG-F-AH
- External ports: 3 x 1GbE SFP
- Internal ports (via gland interface): 1 x SFP, 2 x RJ45 copper
- Power supply: AC PSU
- PoE+: 1 port (802.3at), 1 second holdover
- Enclosure: IP65-compliant
- Cooling: Fanless, passive
- Operating temperature: -40 to 65 C (-40 to 149 F)
- Maximum power consumption: under 40 W without PoE+
- Mounting: Brackets, walls, lampposts

FAQs

Q: What power supply does this variant use?
A: This variant uses an AC power supply. Maximum power consumption is under 40 W without PoE+.

Q: Does it support PoE+?
A: Yes. It provides one PoE+ (802.3at) port on the copper ports of the AC variant, with 1 second holdover.

Q: How do the SFP ports connect externally?
A: The three external SFP ports use a sealed LC cabling system, with LC-LC patch cabling from the SFP module to the front panel, keeping the IP65 rating intact.

Q: How does it differ from other ASR 901S SKUs?
A: This SKU combines three external SFP ports, an AC PSU and one PoE+ port with 1 second holdover. Other SKUs in the family vary in port mix and power options.

Q: Can it be installed outdoors?
A: Yes. The IP65-compliant, fanless enclosure operates from -40 to 65 C and mounts on brackets, walls or lampposts.
