Cisco 8804-SYS | 8800 4-Slot Modular Router Chassis, 10RU

8804-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

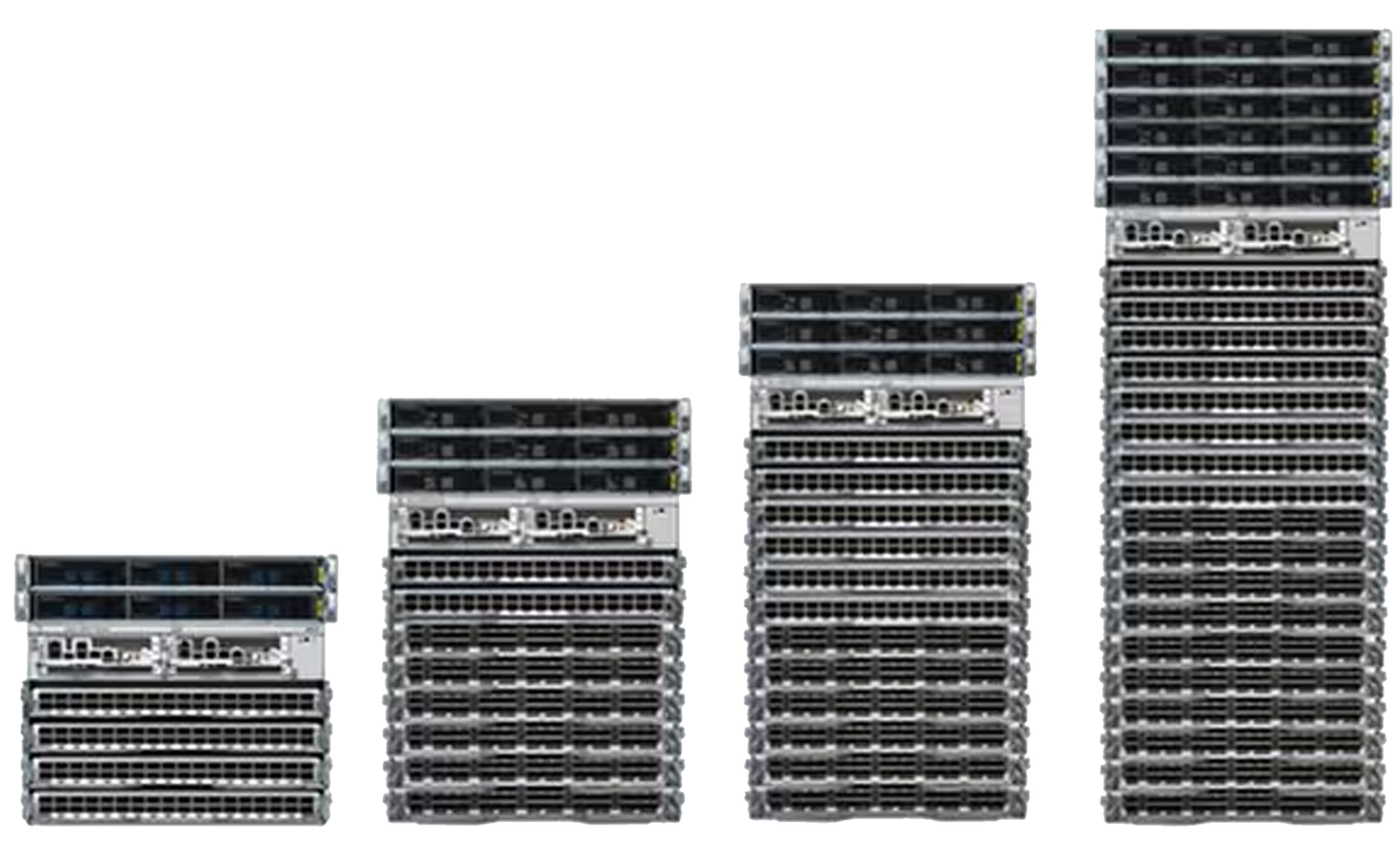

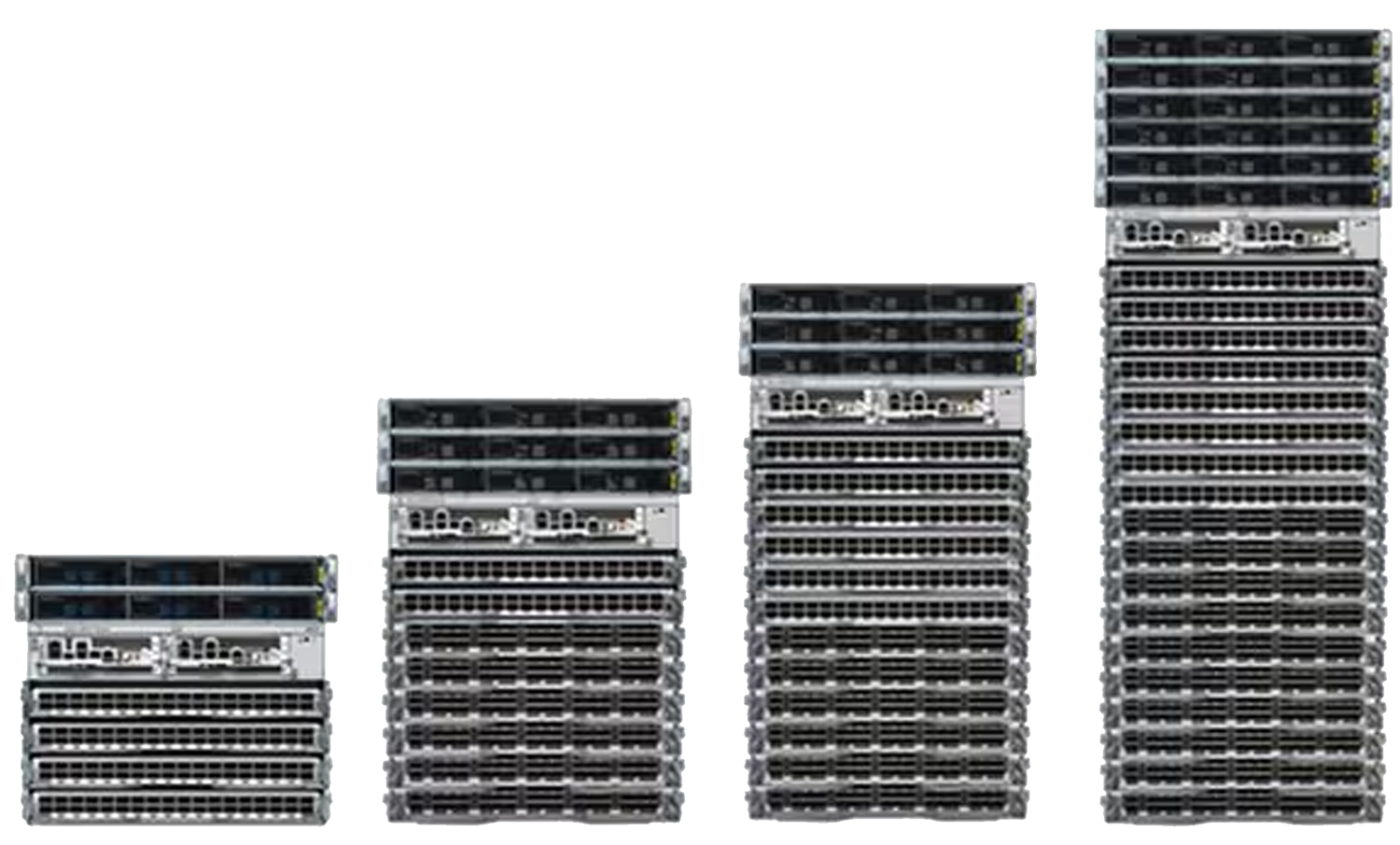

The 4-slot, 10RU modular router chassis from the Cisco 8800 family is built on Silicon One ASICs and runs IOS XR, making it well suited to service provider core and aggregation roles. It provides four line card slots with redundant route processors, fabric modules, fan modules and power trays, all hot-swappable for resilient operation. The 4-slot chassis is the compact option in the range, sitting below the 8-slot, 12-slot and 18-slot chassis for sites that need 100GbE and 400GbE density in a smaller footprint.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Orthogonal direct chassis design with advanced cooling
- Redundant route processors, fabric cards, fans and power trays
- Hot-swappable field-replaceable units with distributed forwarding
- Supports 100GbE and 400GbE line cards, including MACsec options
- Cisco Silicon One ASICs with IOS XR software
- NEBS-compliant air filters with doors for line card access
- Cisco Trust Anchor Module hardware trust, with TPM on the 8800-RP2

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 4 line card slots
- 2 route processor slots
- 8 fabric module slots
- 4 fan module slots
- 8 power supply slots
- 10 RU chassis, approx. 17.5 x 17.45 x 33 in (H x W x D)
- Weight: 124 lb unloaded, 402 lb fully loaded
- Max throughput 57.6 Tbps with Q200-based fabric, up to 115.2 Tbps with 3rd-generation fabric
- Typical system power 4.2 kW (Q200 configuration)
- Supported fabric cards: 8804-FC0 (Q200, 14.4T per line card slot) and 8804-FC1 (F100, 28.8T per line card slot)
- Supported route processors: 8800-RP (4-core 2.4GHz, 32GB DRAM) and 8800-RP2 (8-core 2.7GHz, 64GB DRAM)
- Two power trays per chassis, supporting HVAC/HVDC (6 PSUs) or DC60/DC100 (8 PSUs)

FAQs

Q: How many line cards does the 8804-SYS support?
A: The 8804-SYS has four line card slots, alongside two route processor slots, eight fabric module slots, four fan module slots and eight power supply slots.

Q: Which fabric cards and route processors are compatible?
A: The chassis supports the 8804-FC0 (Q200-based, 14.4T per line card slot) and 8804-FC1 (F100-based, 28.8T per line card slot) fabric cards. Supported route processors are the 8800-RP (4-core 2.4GHz, 32GB DRAM) and the 8800-RP2 (8-core 2.7GHz, 64GB DRAM).

Q: How does the 8804-SYS differ from the 8808-SYS, 8812-SYS and 8818-SYS?
A: The models share the same 8800 platform and differ in chassis size and line card capacity. The 8804-SYS is the 4-slot, 10RU chassis, while the 8808-SYS, 8812-SYS and 8818-SYS provide 8, 12 and 18 line card slots respectively.

Q: What power options does the chassis support?
A: The chassis uses two power trays and supports HVAC/HVDC configurations with six power supplies, or DC60/DC100 configurations with eight power supplies. Typical system power is 4.2 kW in a Q200 configuration.

Q: Which line card speeds can be installed?
A: The 8800 platform supports 100GbE and 400GbE line cards, including options with MACsec encryption.
