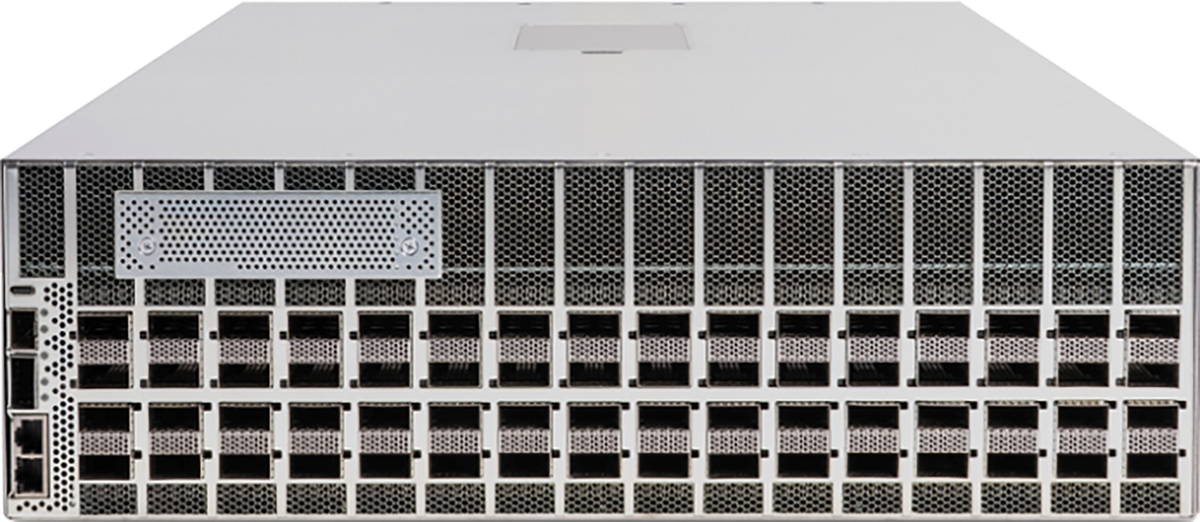

• Silver metal cisco 8223-64e-m server rack with perforated front panel and multiple drive bays for 8200 series router
1 1

Cisco

Cisco 8223-64E-M | 8200 64-Port 800G QSFP-DD800 Router, MACsec, IOS XR

8223-64E-M

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8200 Series 8223 is a fixed 3RU router built on Cisco Silicon One, designed for service-provider cores, internet peering and AI data-centre interconnect. Its deep-buffer architecture suits distributed AI networking and DCI links that need to absorb heavy traffic bursts.

This model delivers 51.2 Tbps of system capacity across 64 QSFP-DD800 ports with MACsec encryption on every port. Port speeds are flexible from 10G through to 800G, with breakout options including 2x 400G, 8x 100G, 4x 25G and 4x 10G. It is the IOS XR variant, running Cisco IOS XR under the Flexible Consumption Model, which separates it from the Open version and the OSFP-port siblings in the same family. Inside is an AMD 8-core CPU with 64 GB DRAM and 128 GB SSD, and timing support includes PTP with Class C performance.

It accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 modules, and is Routed Optical Network ready with support for 400G DCO optics.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cisco Silicon One with deep-buffer architecture for AI data-centre interconnect and provider core
- Flexible port speeds from 10G to 800G with breakout options
- MACsec encryption on all ports
- Segment Routing (SR, SRv6) and EVPN programmability
- Enhanced automation for onboarding, service provisioning and monitoring
- Runs Cisco IOS XR
- N+1 fan redundancy and 1+1 AC/DC power supply redundancy
- Routed Optical Network ready with 400G DCO optics support

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: 8223-64E-M
- System throughput: 51.2 Tbps
- Form factor: 3RU fixed
- Ports: 64 x QSFP-DD800 with MACsec
- Port rates: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Optics support: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP-800
- Coherent optics: Routed Optical Network ready, 400G DCO supported
- CPU: AMD 8-core
- Memory: 64 GB DRAM
- Storage: 128 GB SSD
- Management ports: 1x RS-232 console, 1x 10G management SFP+, 1x 1G management RJ45, 1x QSFP28 PIE, 1x USB-C
- Timing: ToD, 10 MHz, 1PPS, 1588, BITs sync
- Timing performance: PTP with Class C performance
- Power supplies: 4 x 3 kW
- Fans: 7 with N+1 redundancy
- Power redundancy: 1+1 AC and DC
- Dimensions (H x W x D): 5.2 x 17.3 x 25.2 in (13.21 x 43.955 x 64.08 cm)
- Weight: 70 lb (31.75 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% non-condensing
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Safety: AS/NZS 62368.1, UL 62368-1, EN/IEC 62368-1, CAN/CSA-C22.2 No. 62368-1
- RoHS: RoHS 6 compliant with exceptions for leaded BGA balls and lead press-fit connectors

FAQs

Q: Does the 8223-64E-M need a software licence?
A: It runs Cisco IOS XR under the Flexible Consumption Model, which requires Cisco Licensing registration and usage reporting. The software licence, Right-to-Use licences and Software Innovation Access subscription are ordered alongside the system.

Q: How does the 8223-64E-M differ from the 8223-64E-MO?
A: The -M runs Cisco IOS XR. The -MO is the Open variant intended for third-party network operating systems such as SONiC. Both use 64 QSFP-DD800 ports.

Q: What power does the 8223-64E-M use?
A: It uses four 3 kW power supplies with 1+1 redundancy in AC and DC options, plus seven fans with N+1 redundancy.

Q: Which optics does it support?
A: It supports QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 modules, and is ready for 400G DCO optics in a Routed Optical Network design.

Q: Can the 800G ports run at lower speeds?
A: Yes. Ports support 800G, 400G, 100G, 40G, 25G and 10G, with breakout configurations such as 2x 400G, 8x 100G, 4x 25G and 4x 10G.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
