Cisco

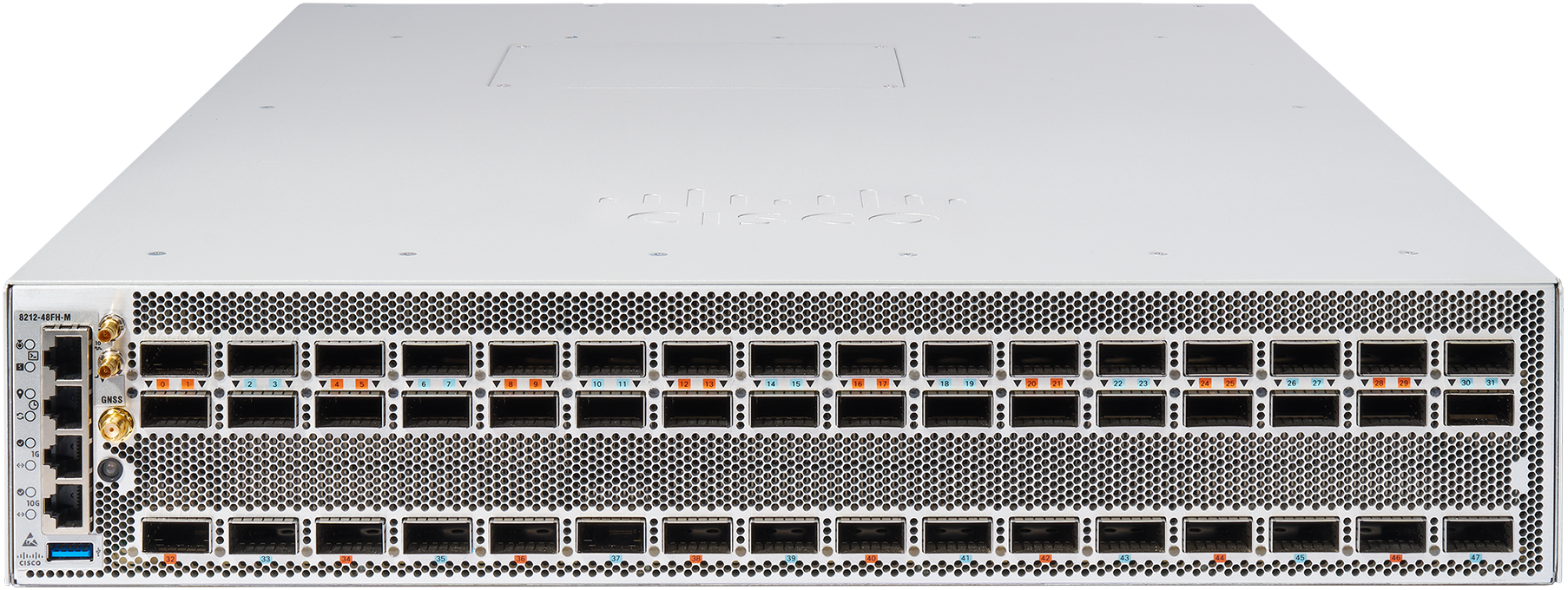

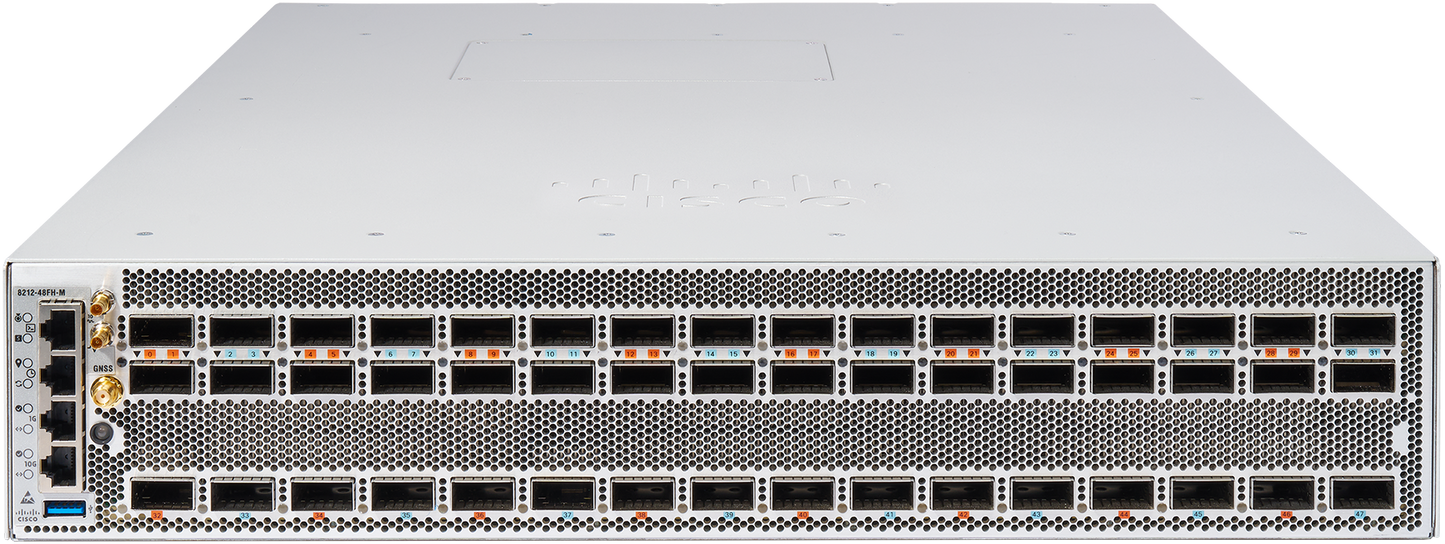

Cisco 8212-48FH-M-C | 8200 48-Port 400G QSFP56-DD Router, MACsec, 2RU

8212-48FH-M-C

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 8212-48FH-M-C is a fixed 2RU router from the Cisco 8200 Series, built on Cisco Silicon One with 19.2 Tbps of system bandwidth. It is aimed at AI data-center interconnect, high-density leaf and spine, data-center aggregation, provider core and internet peering roles where deep buffers and high port density matter.

The chassis provides 48 x 400GbE QSFP56-DD ports, or 24 x 800G QSFP-DD, with MACsec on all ports and a high-bandwidth memory (HBM) deep-buffer architecture. Ports can be configured for 800G, 400G, 100G, 40G, 25G or 10G, with breakout support to 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G. An Intel 6-core x86 CPU with 64 GB of DRAM and a 128 GB SSD runs Cisco IOS XR or the open-source SONiC network operating system. Redundancy comes from 1+1 AC or DC power supplies and N+1 fans, and PTP Class C timing supports precise synchronisation. This is a non-PoE system.

It accepts QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggable optics, and is ready for Routed Optical Networking with 400G DCO optics. Software licences, Right-to-Use licences and Software Innovation Access subscription are ordered with the system.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Powered by the Cisco Silicon One processor
- Deep-buffer HBM architecture for AI data-center interconnect and bursty traffic
- MACsec encryption on all ports
- Flexible port speed configuration and breakout support
- Routed Optical Networking ready with 400G DCO optics
- Segment Routing (SR, SRv6) and EVPN
- Automation for onboarding, service provisioning and monitoring
- 1+1 redundant AC or DC power supplies and N+1 redundant fans
- Runs Cisco IOS XR or open-source SONiC
- PTP Class C timing for precise synchronisation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bandwidth: 19.2 Tbps
- Height: 2 RU
- Ports: 48 x 400GbE QSFP56-DD, or 24 x 800G QSFP-DD
- MACsec: all ports
- CPU and memory: Intel 6-core x86 CPU, 64 GB DRAM, 128 GB SSD
- Control and management: RS-232 console, 10G control plane expansion, 1G management, 1x USB 2.0
- Timing and sync: GPS (ToD, 10 MHz, 1PPS), 1588 and BITS
- PTP timing: Class C performance
- Flexible port rates: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Supported optics: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP-800
- Routed Optical Networking: ready, supports 400G DCO optics
- Power supplies: 2 (1+1 redundant, AC and DC options)
- Fans: 4 (N+1 redundant), optional air filter
- PoE: none
- Dimensions (H x W x D): 8.77 x 43.9 x 59.9 cm (3.45 x 17.3 x 23.6 in)
- Weight: 22.8 kg (50.25 lb)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (non-condensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Network operating system: Cisco IOS XR or SONiC

FAQs

Q: Does the 8212-48FH-M-C need a software licence?
A: Yes. The software licence, Right-to-Use licences and Software Innovation Access subscription are ordered with the system for it to work properly.

Q: Which operating systems does it run?
A: It runs Cisco IOS XR or the open-source SONiC network operating system.

Q: Which optics does this router work with?
A: It supports QSFP+, QSFP28, QSFP56-DD, QSFP-DD800 and OSFP-800 pluggable optics, as well as 400G DCO optics for Routed Optical Networking.

Q: Can the 400G ports be broken out to lower speeds?
A: Yes. Ports support 800G, 400G, 100G, 40G, 25G and 10G rates, with breakout to 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G.

Q: What power does it use, and does it support PoE?
A: It uses two hot-plug power supplies in a 1+1 redundant arrangement, with AC and DC options. It does not provide PoE.
