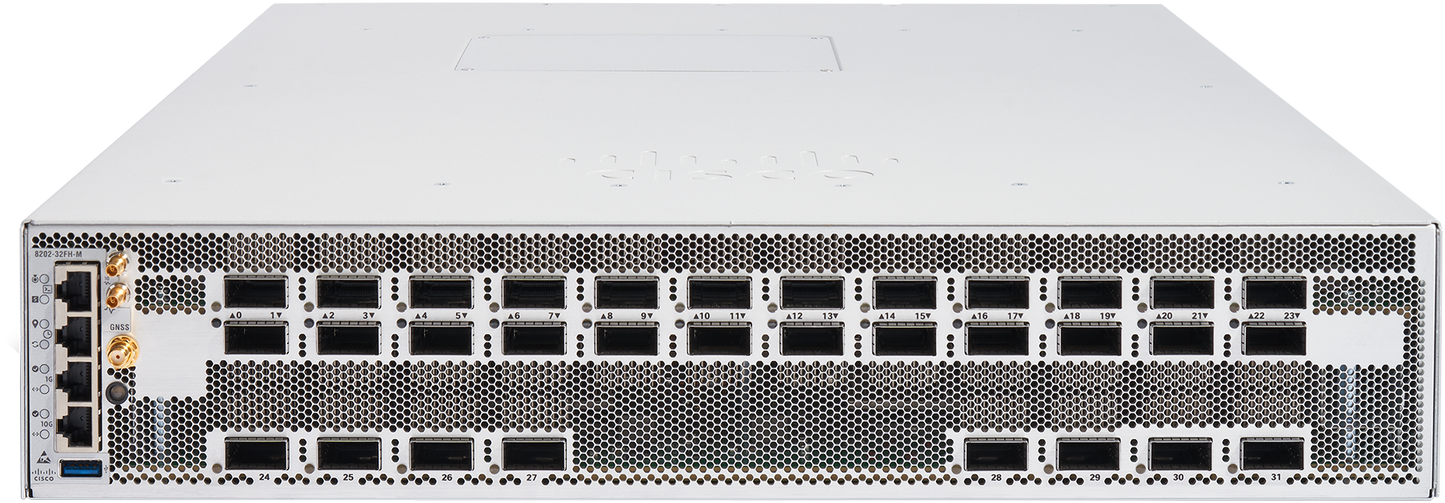

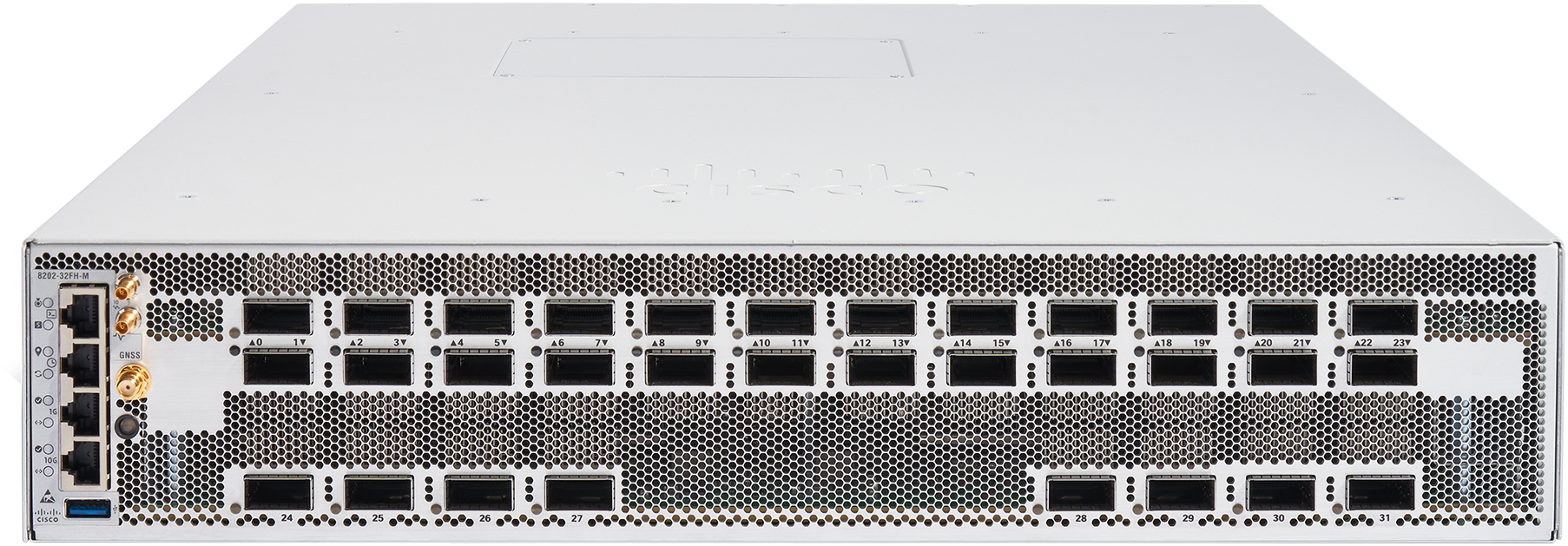

• Cisco 8202-SYS silver server rack with black panels and network ports
1 1

Cisco

Cisco 8202-SYS | 8200 12x400G QSFP56-DD + 60x100G QSFP28 Router, IOS XR

8202-SYS

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco 8200 Series is a fixed-port, high-density core and aggregation router built for service provider and large data centre networks. Built around a single Q100 ASIC in a Router-on-Chip design, it suits aggregation, peering, core and Data Center Interconnect roles in a 2RU chassis running Cisco IOS XR.

This 8202-SYS variant provides 12 x 400GbE QSFP56-DD ports and 60 x 100GbE QSFP28 ports, giving 10.8 Tbps of network bandwidth. Port breakout options are supported. The system includes 2 power supplies with bidirectional airflow, an Intel Broadwell 4-core 2.4 GHz CPU with 32 GB DRAM, and a typical system power draw of 750 W at 10.8 Tbps. It is a non-PoE router.

The router accepts QSFP56-DD 400GbE and QSFP28 100GbE optics, with GPS, IEEE 1588 and BITS timing and synchronisation interfaces for carrier-grade deployments. Software licensing follows the Cisco IOS XR perpetual or Flexible Consumption models.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Router-on-Chip architecture with a single ASIC providing full routing functionality
- Large forwarding tables and deep buffering
- No off-chip TCAM or fabric ASICs required
- Suited to aggregation, peering, core and Data Center Interconnect roles
- Port breakout options supported
- Much lower power consumption than contemporary 10 Tbps systems
- Runs Cisco IOS XR

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: 8202-SYS
- Network bandwidth: 10.8 Tbps
- Form factor: 2 RU
- Ports: 12 x 400GbE QSFP56-DD and 60 x 100GbE QSFP28
- CPU and memory: Intel Broadwell 4-core 2.4 GHz CPU with 32 GB DRAM
- Power supplies: 2
- Typical system power at 10.8 Tbps: 750 W
- Airflow: Bidirectional
- Management interfaces: RS-232 console, 10 GbE control plane expansion, 1 GbE management and BMC port, 1x USB 2.0
- Timing and sync: GPS (ToD, 10MHz, 1PPS), IEEE 1588, BITS
- Dimensions (H x W x D): 3.45 x 17.3 x 20.1 in. (8.77 x 43.9 x 51.1 cm)
- Weight: 42 lbs (19 kg)
- Operating temperature: 0 to 40 C (32 to 104 F)
- Non-operating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% non-condensing
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Safety compliance: UL/CSA/EN/IEC 60950-1 2nd Edition, AS/NZS 60950-1, GB4943

FAQs

Q: What software does the 8202-SYS run?
A: It runs Cisco IOS XR. Software licensing follows the Cisco IOS XR perpetual or Flexible Consumption subscription models.

Q: Does it support PoE?
A: No. This is a non-PoE core and aggregation router. It uses 2 power supplies and draws a typical 750 W at 10.8 Tbps.

Q: Which optics does it accept?
A: It accepts QSFP56-DD 400GbE and QSFP28 100GbE optics, with port breakout support. Refer to the Cisco hardware installation guide for the supported optics matrix.

Q: What network roles is it designed for?
A: It suits core, aggregation, peering and Data Center Interconnect deployments for service providers and large data centres.

Q: What timing and synchronisation options are available?
A: It provides GPS (ToD, 10MHz, 1PPS), IEEE 1588 and BITS timing and synchronisation interfaces.
