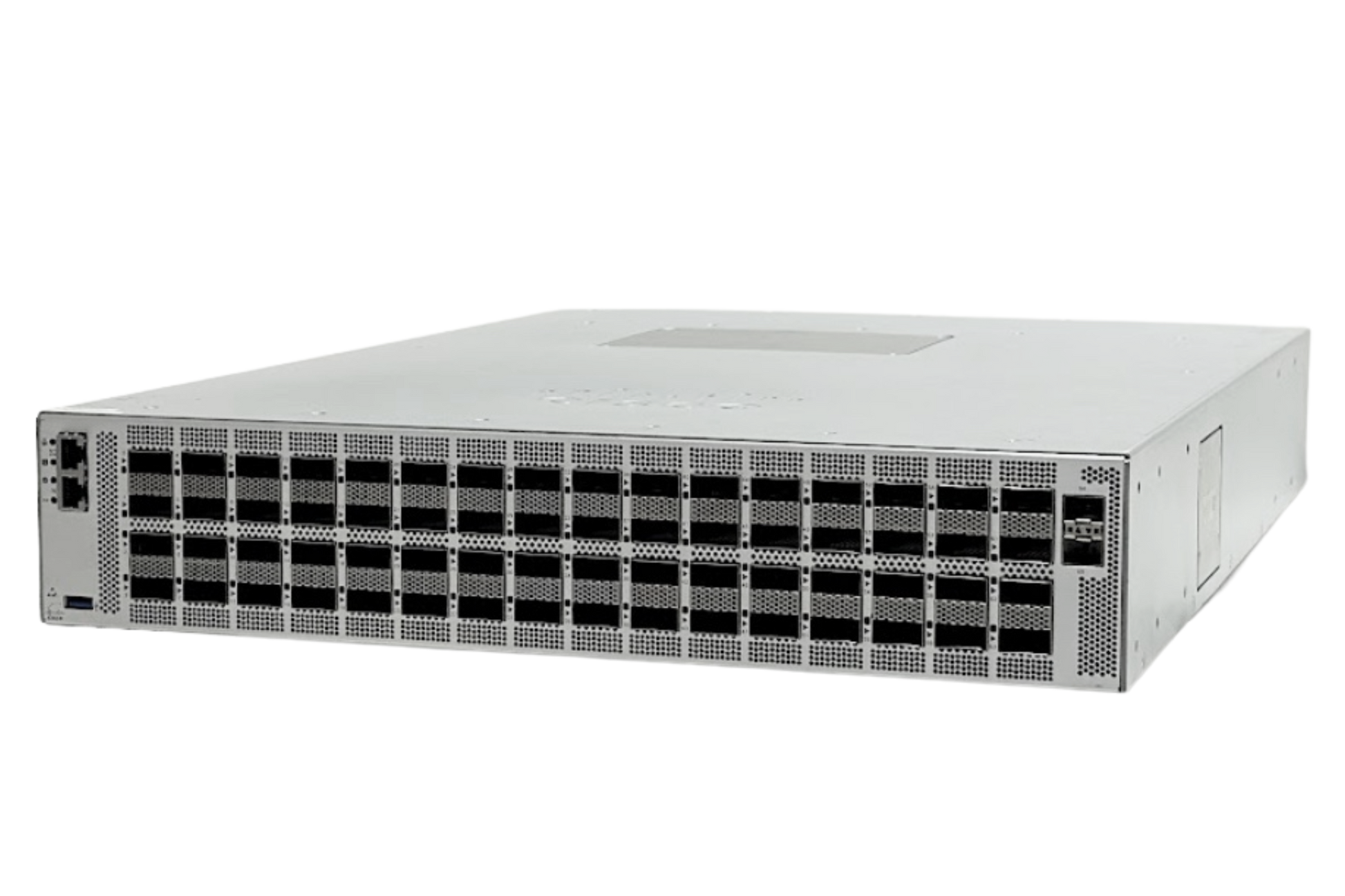

• Cisco 8122-64EH-O switch with 64x800G QSFP-DD800 ports
1 1

Cisco

Cisco 8122-64EH-O | 8100 64-Port 800G QSFP-DD800 Router, 2RU, Open

8122-64EH-O

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The 8122-64EH-O is a fixed 2RU router from the Cisco 8100 Series, built on the Cisco Silicon One G200 ASIC. It is aimed at AI/ML front-end and back-end networks, hyperscale and traditional data centre fabrics, and high-density IP fabric leaf and spine deployments.

It provides 51.2 Tbps of bandwidth through 64 QSFP-DD800 ports running at 800G, with breakout to 128 x 400GbE. Port speeds from 800G down to 10G are supported, including breakout options such as 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G. An Intel 4-core 2.4-GHz CPU with 64 GB of DRAM handles control-plane tasks, and the ASIC uses 112G SerDes without HBM. The -O suffix identifies the Open software version, which runs the SONiC open-source network operating system. Cooling uses 4 fans in 3+1 redundancy, and the 2 power supplies run in 1+1 redundancy.

Supported optics include QSFP+, QSFP28, QSFP56-DD and QSFP-DD800. Management connectivity includes an RS-232 console, a 1G management port, a USB 2.0 port and 2x SFP28 telemetry ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Built on the Cisco Silicon One G200 ASIC (5-nm) with high power efficiency
- Supports the SONiC open-source network operating system
- Designed for AI/ML front-end and back-end networks and high-density IP fabric leaf and spine roles
- Flexible port speeds and breakout options from 800G down to 10G
- Redundant N+1 fans and AC or DC power supplies
- Enhanced automation for onboarding, service provisioning and monitoring
- Dual SFP28 telemetry ports alongside 1G management and RS-232 console access

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Bandwidth: 51.2 Tbps
- Ports: 64x 800G QSFP-DD800 (or 128x 400GbE with breakout)
- Chassis height: 2RU fixed
- ASIC: Cisco Silicon One G200, 112G SerDes, no HBM
- CPU and memory: Intel 4-core 2.4-GHz CPU with 64 GB DRAM
- Software: Open (SONiC)
- Port rate options: 800G, 400G, 100G, 40G, 25G, 10G
- Breakout support: 2x 400G, 8x 100G, 4x 100G, 2x 100G, 4x 25G, 4x 10G
- Supported optics: QSFP+, QSFP28, QSFP56-DD, QSFP-DD800, OSFP800
- Management and console: RS-232 console, 1G management, 1x USB 2.0, 2x SFP28 telemetry ports
- Power supplies: 2 (1+1 redundancy), AC or DC
- Fans: 4 (3+1 redundant cooling)
- Dimensions (HxWxD): 8.76 x 44.0 x 62.7 cm (3.43 x 17.3 x 24.7 in.)
- Weight: approx. 16.7 kg (37.0 lb) without 4 fans and 2 power supplies
- Operating temperature: 0 to 40 C (32 to 104 F)
- Nonoperating temperature: -40 to 70 C (-40 to 158 F)
- Humidity: 5% to 95% (noncondensing)
- Altitude: 0 to 3000 m (0 to 9842 ft)
- Safety: AS/NZS 62368.1, UL/CSA 60950-1 and 62368-1, EN/IEC 62368-1, GB 4943-1
- Regulatory: CE marked (2014/30/EU, 2014/35/EU), RoHS 6 compliant with exceptions

FAQs

Q: What software does the 8122-64EH-O run?
A: The -O suffix denotes the Open software version, which runs the SONiC open-source network operating system.

Q: Can the 800G ports break out to lower speeds?
A: Yes. Each 800G port supports 2x 400G breakout, and further breakout options include 8x 100G, 4x 100G, 2x 100G, 4x 25G and 4x 10G, so the chassis can present up to 128 x 400GbE.

Q: Which optics does it support?
A: It supports QSFP+, QSFP28, QSFP56-DD and QSFP-DD800 optics, allowing a mix of speeds from 10G through to 800G.

Q: How is power and cooling redundancy handled?
A: The chassis uses 2 power supplies in 1+1 redundancy, with AC or DC options, and 4 fans in 3+1 redundant cooling.

Q: What roles is this router suited to?
A: It targets AI/ML cluster networks (front-end and back-end), hyperscale and traditional data centre fabrics, and high-density IP fabric leaf and spine deployments.
