Cisco

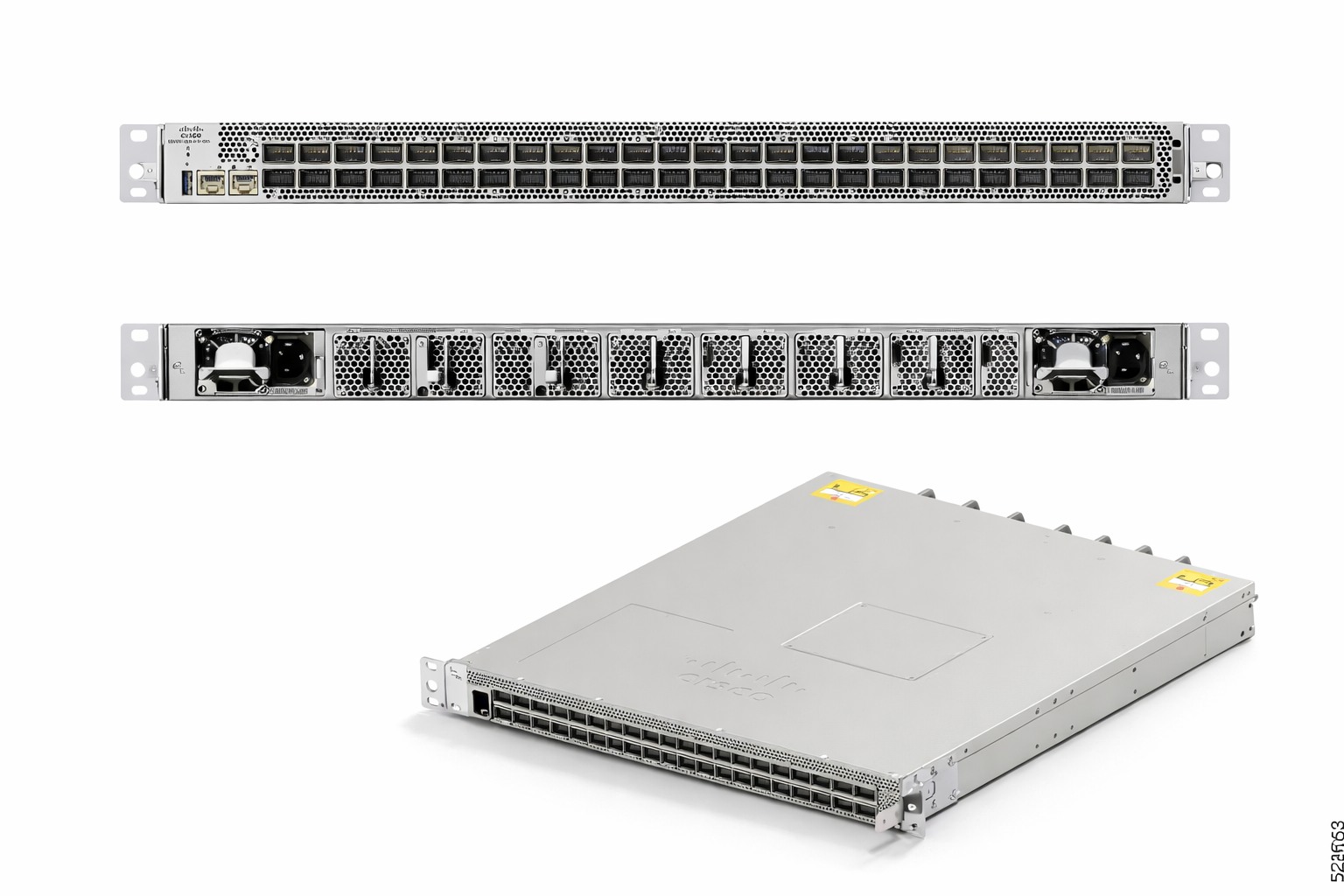

Cisco 8101-32FH-O-C01 | 8100 32-Port 400G QSFP-DD Router, Open Software

8101-32FH-O-C01

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This Cisco 8100 Series fixed-port 1RU system is built for data centre fabrics, where it suits leaf, spine and top-of-rack roles. It is the Open Software variant, intended for Cisco-qualified open-source network operating systems such as SONiC rather than a Cisco IOS XR licence.

The chassis is based on Q200L silicon without HBM and delivers 12.8 Tbps of routing capacity across 32 QSFP-DD400 ports. Each port supports breakout to 4x100G, 2x200G or 2x100G for flexible 100G, 200G and 400G connectivity. The chassis provides console, USB and management Ethernet interfaces. Cooling is port-side intake (PSI v2), with airflow front to rear. The chassis has 2 power supply bays and 6 fan modules. This SKU is defined as having no PSUs or fans, so the PSU1.4KW-ACPI power supplies (1400W AC, 90-264 VAC input) and FAN-1RU-PI-C01 fan modules are ordered separately.

The 400G ports accept QSFP-DD optics, and Cisco lists QDD-400G-ZR-S and QDD-400G-ZRP-S support for the 8101-32FH family, subject to port-position and temperature limits. Confirm exact optics against the hardware installation guide.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Fixed-port, high-density 1RU design for data centre applications
- Supports Cisco-qualified open-source network operating systems such as SONiC
- Per-port breakout for flexible 100G, 200G and 400G connectivity
- Individually removable fan modules
- Dual power supply bays for PSU1.4KW-ACPI units
- Port-side intake airflow suited to front-facing cold aisle layouts
- 12.8 Tbps routing capacity on Q200L silicon

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Model: Cisco 8101-32FH-O-C01
- Form factor: 1RU fixed-port
- Silicon: Q200L, no HBM
- Routing capacity: 12.8 Tbps
- Front ports: 32 x QSFP-DD400 (400GbE)
- Port breakout: 4x100G, 2x200G, 2x100G
- Management interfaces: Console, USB, Management Ethernet
- Software: Open Software (Cisco-qualified open NOS such as SONiC)
- Power supply bays: 2 (PSU1.4KW-ACPI, 1400W AC)
- Fan modules: 6 x FAN-1RU-PI-C01
- AC input range: 90-264 VAC
- Maximum power with 1 PSU: 1400 W
- Airflow: Port-side intake (PSI v2), front to rear
- PSUs and fans: not included with this SKU

FAQs

Q: Does this router need a Cisco licence?
A: No Cisco IOS XR licence is stated for this SKU. It is the Open Software variant, intended for Cisco-qualified open-source network operating systems such as SONiC.

Q: Which power supply and fans does it use?
A: It uses PSU1.4KW-ACPI power supplies (1400W AC, 90-264 VAC input, port-side intake) and FAN-1RU-PI-C01 fan modules. This SKU is defined without PSUs or fans, so they are ordered separately.

Q: What optics can I use in the 400G ports?
A: The ports accept QSFP-DD optics. Cisco lists QDD-400G-ZR-S and QDD-400G-ZRP-S support for the 8101-32FH family, with port-position and temperature limits. Check the supported optics table in the hardware installation guide for exact modules.

Q: Can the 400G ports be broken out?
A: Yes. Each port supports breakout to 4x100G, 2x200G or 2x100G.

Q: How does this differ from other 8101-32FH variants?
A: This SKU uses Q200L silicon with no HBM, runs Open Software, and has port-side intake airflow with the PSU1.4KW-ACPI power supply type.
