Aruba

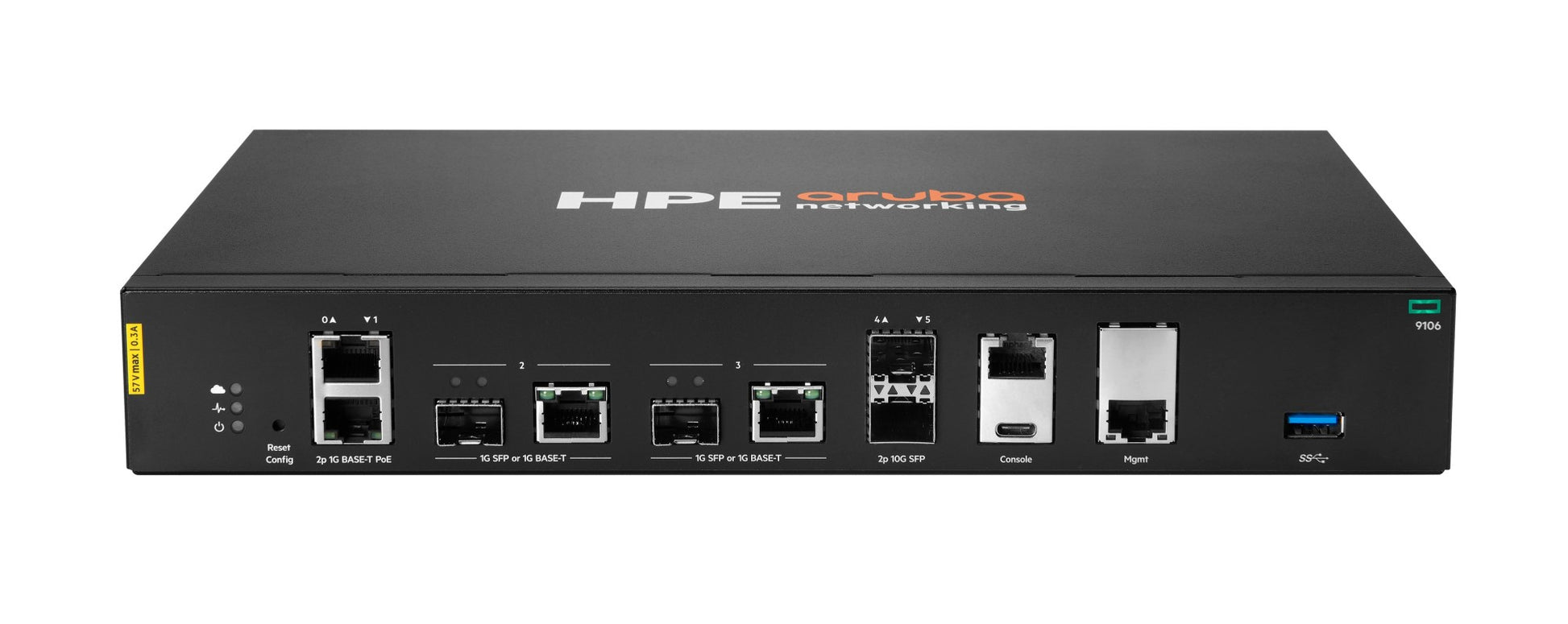

Aruba S0B85A | 9106 Hybrid Gateway, 2x 10G SFP+, 2x PoE, 60W

S0B85A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 9100 Series 9106 is a compact desktop hybrid gateway for large branch offices and small campus sites. It can be deployed as an SD-Branch gateway, a cloud-based wireless gateway or a VPN concentrator, and it is managed through HPE Aruba Networking Central using the cloud-native AOS-10 architecture.

This AC powered, non-TAA 9106 provides two 10GbE SFP+ ports, two 1GbE combo SFP/copper ports and two 1GbE PoE ports sharing a 60W PoE budget. Firewall throughput is 10 Gbps, with 10 Gbps of encrypted throughput for GRE, AES-CBC and AES-GCM. It scales to 2K access points, 8K clients and 16K concurrent IPsec tunnels, with AOS-10 clusters of up to 6 gateways.

It works with Aruba 10G SFP+ transceivers such as J9150D (SR, 300m), J9151E (LR, 10km), J9152D (LRM) and J9153D (ER, 40km), and accepts 1G SFP transceivers in the combo ports. Running AOS-10 requires an Aruba Central subscription, in Foundation, Advanced or Security-enhanced tiers.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Versatile platform for SD-Branch gateway, cloud-based wireless gateway or VPN concentrator roles
- Cloud-native AOS-10 architecture managed through Aruba Central
- Dynamic Segmentation for automated role-based policy enforcement across users, devices and IoT
- High availability with clustering, live upgrades and N+1 or NxN redundancy
- Zero Touch Provisioning for branch deployments
- Supports AOS-8 and AOS-10 software

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Form factor: Desktop
- Interfaces: 2x 10GbE SFP+, 2x 1GbE combo (SFP/copper), 2x 1GbE PoE
- PoE budget: 60W
- Out-of-band management port: 1x RJ45
- Console port: USB-C, RJ45
- Firewall throughput: 10 Gbps
- Encrypted throughput (GRE / AES-CBC / AES-GCM): 10 Gbps
- AOS-10 cluster size: 6
- Maximum access points: 2K
- Maximum clients: 8K
- Maximum firewall sessions: 2M
- Concurrent IPsec tunnels: 16K
- Total tunnels: 20K
- Maximum DHCP clients: 16K
- Maximum bridge table: 256K
- Dimensions (H x W x D): 43.7 x 294.8 x 201.05 mm
- Weight: 2.305 kg
- Maximum power consumption: 150W
- Power source: 165W external AC power supply, 100-240 VAC, 50-60 Hz
- Operating temperature: 0 to 40 C
- Storage temperature: -40 to 70 C
- Humidity (operating): 10% to 90% RH, non-condensing
- Acoustic noise: 54.6 dBA
- Maximum heat dissipation: 290 BTU/hour
- MTBF (25 C): 236,076 hours

FAQs

Q: Does the 9106 need a subscription to run AOS-10?
A: Yes. AOS-10 runs under an Aruba Central subscription, available per device in 1, 3, 5, 7 and 10-year terms. Tiers include Foundation, Foundation plus Security, Advanced and Advanced plus Security.

Q: How much PoE power does it provide?
A: The two 1GbE PoE ports share a 60W PoE budget. The gateway is powered by a 165W external AC power supply, 100-240 VAC, 50-60 Hz.

Q: Which SFP+ optics work with the 10G ports?
A: Aruba 10G SFP+ transceivers including J9150D (SR, 300m), J9151E (LR, 10km), J9152D (LRM) and J9153D (ER, 40km). The combo ports also accept 1G SFP transceivers.

Q: How does this SKU differ from other 9100 Series gateways?
A: This is the 9106 model in the non-TAA, AC powered variant with 2x SFP+, 2x combo and 2x PoE ports at a 60W PoE budget.

Q: What roles can the 9106 fill in a network?
A: It can operate as an SD-Branch gateway, a cloud-based wireless gateway or a VPN concentrator, supporting up to 2K access points, 8K clients and 16K concurrent IPsec tunnels.
