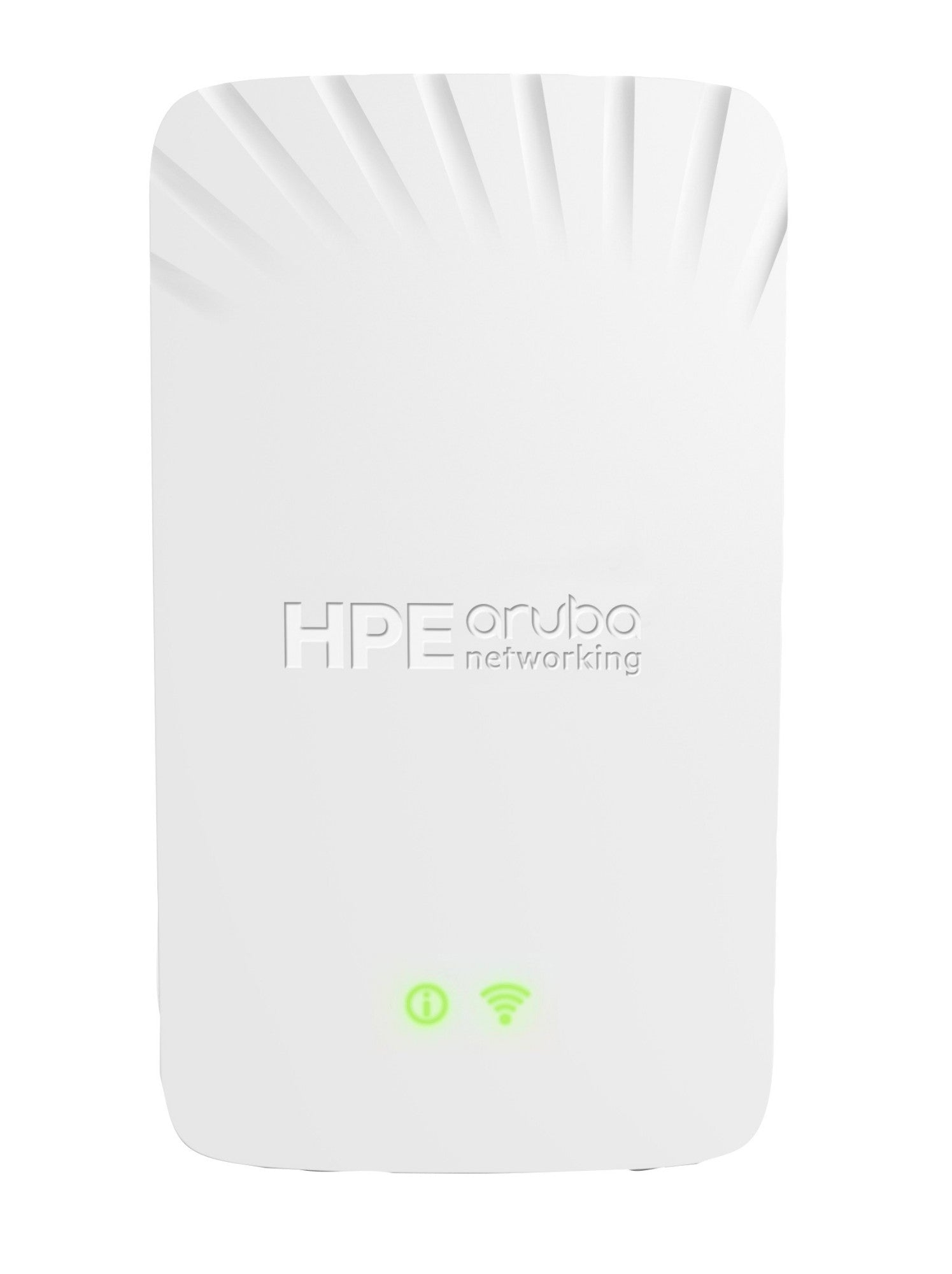

• Aruba AP-505H Wi-Fi 6 wall-plate access point with white vented design and green LEDs
1 1

Aruba

Aruba R3V46A | AP-505H Wi-Fi 6 Hospitality Access Point, dual radio 2x2, 1+4 Ethernet ports, PSE, USB

R3V46A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Enhanced hospitality access point with Wi‑Fi 6 dual‑radio 2x2, 1x uplink and 4x downlink GbE ports, plus PSE PoE‑out on one port and a USB port for expansion. Designed for in‑room gateway use to power phones or IoT while delivering high‑efficiency Wi‑Fi. Optional desktop mount available for flexible deployments.

Features

- Room‑gateway design with 1x uplink + 4x downlink GbE ports
- PSE 802.3af PoE‑out to power a phone or IoT device (with 802.3at input)
- Wi‑Fi 6 dual‑band 2x2 for efficient high‑density coverage
- USB port for accessory/IoT connectivity
- Advanced power savings with TWT and OFDMA
- Flexible deployment: controller or standalone
- Clean hospitality form factor with wall‑plate mounting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

Technical Specifications

- Wi‑Fi standard: 802.11ax (Wi‑Fi 6)
- Radios/streams: Dual‑radio 2x2:2 (2.4 GHz and 5 GHz)
- Channel widths: 20/40 MHz (2.4 GHz), 20/40/80 MHz (5 GHz)
- Efficiency: OFDMA, MU‑MIMO, BSS Coloring, Target Wake Time
- Ethernet: 1x 10/100/1000BASE‑T uplink, 4x 10/100/1000BASE‑T downlink
- PSE: 802.3af PoE‑out on one downlink port (requires 802.3at PoE‑in)
- USB: 1x USB 2.0 port for accessories/IoT
- Power: 802.3at PoE‑in recommended for PSE/USB; 802.3af supported with feature limits
- Security: WPA3/WPA2‑Enterprise, WPA2‑PSK, Enhanced Open (OWE)
- Mounting: Wall‑plate/box; optional desktop/wall mount accessory
