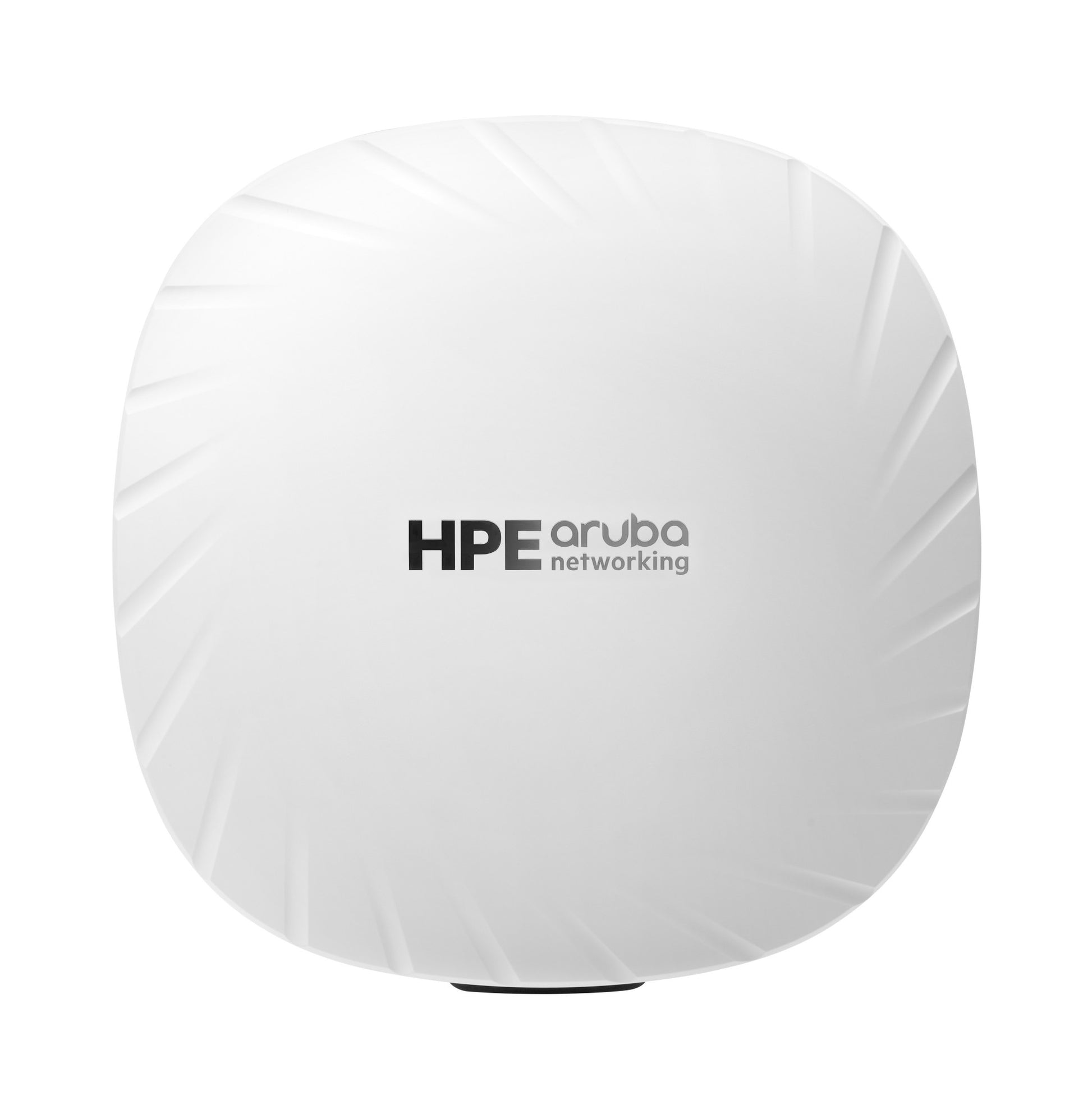

• Aruba JZ356A AP-555 Wi-Fi 6 white wireless access point with black base
1 1

Aruba

Aruba JZ356A | AP-555 Wi-Fi 6 Access Point, dual radio 8x8 + 4x4, internal antennas

JZ356A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-density Wi-Fi 6 indoor access point designed for unified campus deployments, delivering 8x8 MU-MIMO on 5 GHz and 4x4 on 2.4 GHz with OFDMA, BSS Coloring, and TWT for maximum efficiency. Dual Ethernet (1/2.5/5GbE + 1GbE) uplinks support high-throughput backhaul and redundancy, while internal antennas keep the profile clean for ceiling or wall installs. Integrated security features including WPA3 and Enhanced Open, plus flexible management via cloud or on-premises controller. Ideal for lecture halls, arenas, and large enterprise floors requiring multi-gig performance and reliable client density.

Features

- High-density Wi-Fi 6 with 8x8/4x4 radios optimized for large client populations
- Multi-gigabit uplink with 5GbE SmartRate for congestion-free backhaul
- Advanced efficiency with OFDMA, MU-MIMO, TWT, and BSS Coloring
- Strong security stack including WPA3 and Enhanced Open
- Integrated BLE for IoT services and location use cases

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: IEEE 802.11ax (Wi-Fi 6)
- Radios/streams: Dual-radio (5 GHz 8x8:8, 2.4 GHz 4x4:4)
- Aggregate PHY rate: up to ~5.95 Gbps (theoretical)
- Antennas: Internal, omnidirectional (indoor)
- Ethernet uplinks: 1x 1/2.5/5GBASE-T (SmartRate) + 1x 10/100/1000BASE-T
- Power: PoE 802.3bt (Class 6) recommended for full performance; 802.3at supported with reduced capabilities
- Features: OFDMA, MU-MIMO, BSS Coloring, Target Wake Time (TWT)
- Security: WPA3, WPA2-Enterprise/PSK, Enhanced Open (OWE)
- IoT/Location: Integrated Bluetooth Low Energy (BLE) for beaconing and IoT
- Management: Cloud-managed or on-premises controller-based; supports policy enforcement and RF optimization
- Mounting: Ceiling or wall; compatible with series-specific mounting kits
- Environment: Indoor campus/enterprise deployments

FAQs

Q: What PoE class is required for full feature operation?
A: Use 802.3bt (Class 6) to enable full radio performance and features. The AP can operate on 802.3at with reduced capabilities.

Q: What Ethernet uplink speeds are supported?
A: One SmartRate port supports 1/2.5/5GbE and a secondary port supports 10/100/1000 Mbps for redundancy or link aggregation (as supported by software).

Q: Does it support WPA3?
A: Yes, WPA3 and Enhanced Open are supported for modern, secure onboarding.

Q: Which mounting brackets are compatible?
A: Use the series-compatible ceiling/wall mounts; for 9/16 inch flat T-rail ceilings, the MP10 family bracket variant is typically used.

Q: Can it be managed without a physical controller?
A: Yes, it supports cloud management options as well as on-premises controllers; licenses for the chosen platform are procured separately.
