Aruba JZ087A | Wi‑Fi 5 (802.11ac Wave 2) | Dual‑band 2.4/5GHz 2x2:2 | 867 Mbps | 1x GbE uplink + 3x GbE access | PoE 802.3af | wall‑plate hospitality

Aruba JZ087A | Wi‑Fi 5 (802.11ac Wave 2) | Dual‑band 2.4/5GHz 2x2:2 | 867 Mbps | 1x GbE uplink + 3x GbE access | PoE 802.3af | wall‑plate hospitality

SKU:JZ087A

Regular price $0.00 AUD
Regular price
$0.00 AUD
$0.00 AUD
Regular price
Sale Sold out
Shipping calculated at checkout.

Description

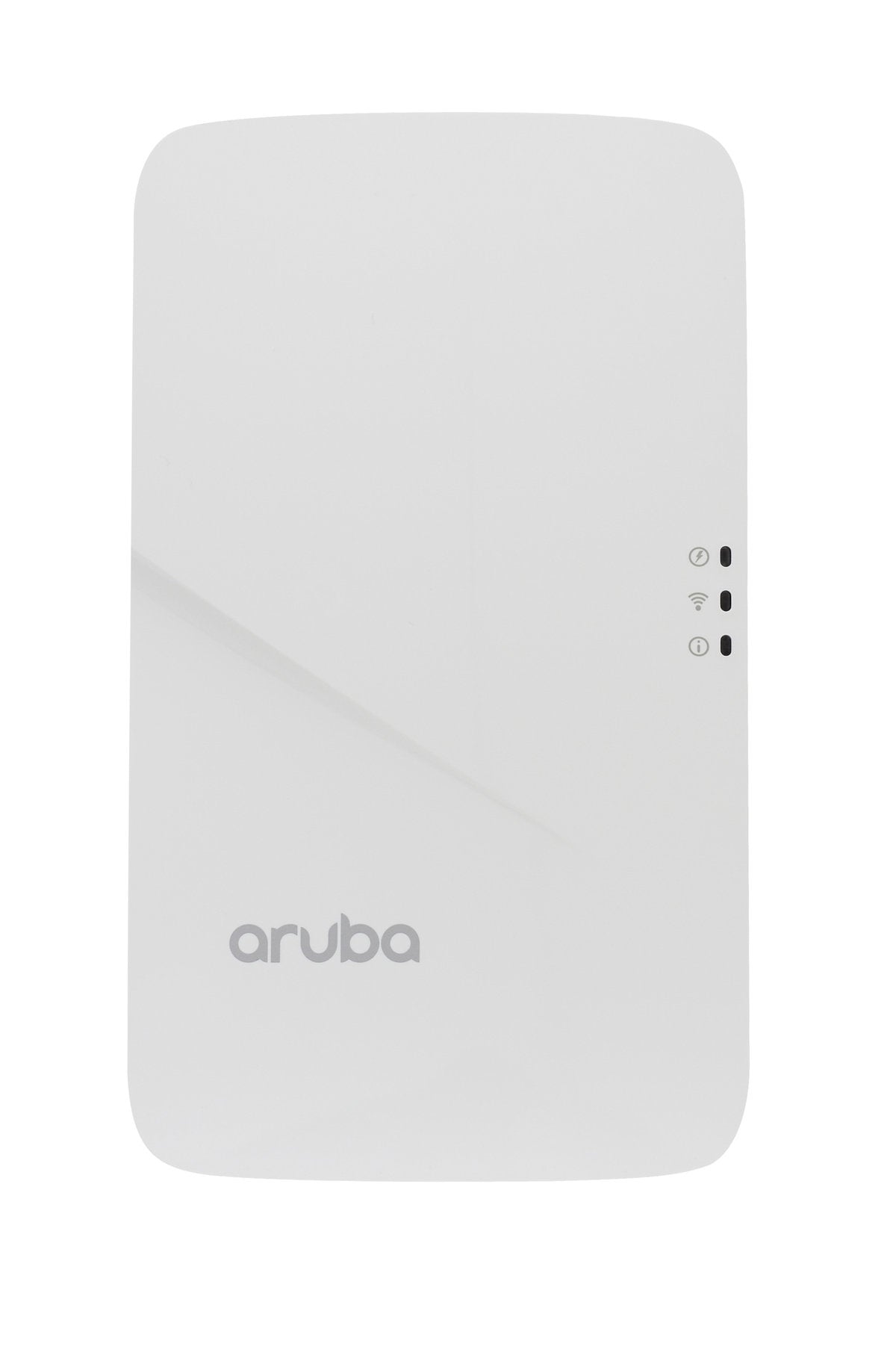

Compact wall‑plate access point for hospitality and multi‑dwelling spaces. Dual‑band 802.11ac Wave 2 radios deliver fast client performance, while the integrated 3‑port gigabit switch connects in‑room devices like IP phones and set‑top boxes. Powered by PoE for simple, clean installations on standard wall boxes.

Features

Discreet wall‑plate design for rooms and suites
- Integrated 3‑port gigabit switch for in‑room wired devices
- MU‑MIMO and beamforming for improved client performance
- Simple PoE‑powered installation
- Secure segmented access for staff and guests

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Similar products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: What does the 'HR' variant mean?
A: It is tailored for hospitality and remote wall‑plate deployments, combining an AP with a small in‑room switch for wired devices.

Q: Can it power an IP phone from one of the access ports?
A: Yes, when the AP is powered by 802.3at, one access port can provide PoE output (PSE), subject to power budget and configuration.

Q: Does it require a controller?
A: It supports controller‑based deployments and also controllerless operation where supported by software version.

Q: Is the antenna internal?
A: Yes, it uses integrated omnidirectional antennas optimized for in‑room coverage.

Q: What mounting options are available?
A: It mounts directly to standard wall boxes and includes a low‑profile cover for neat installations.

Technical Specifications

Wi‑Fi standard: 802.11ac Wave 2 (Wi‑Fi 5)
- MIMO: 2x2:2 on 2.4 GHz and 5 GHz
- Max data rate: up to 867 Mbps on 5 GHz (80 MHz); up to 300 Mbps on 2.4 GHz
- Radios: Concurrent dual‑band
- Ethernet: 1x 10/100/1000 uplink + 3x 10/100/1000 access ports
- PoE: 802.3af (PoE‑in); PSE on one access port when powered by 802.3at (mode dependent)
- Antenna: Internal omnidirectional
- Security: WPA2/WPA3 Enterprise, 802.1X, secure guest access
- Mounting: Fits common US/EU/UK wall‑box standards; low‑profile wall‑plate
- Operating temperature: 0 to 40 °C (32 to 104 °F)
