Aruba

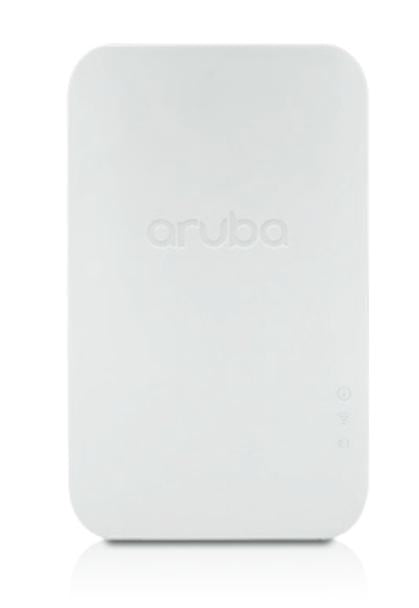

Aruba JY693A | AP-203H Wi‑Fi 5 (802.11ac) dual‑band 2x2:2, 867 Mbps, wall‑plate AP, PoE‑in 802.3af, GbE uplink + LAN ports

SKU:JY693A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Compact wall-plate access point for hospitality and multi-tenant spaces, delivering dual-band 802.11ac (Wi‑Fi 5) with 2x2:2 MU‑MIMO and integrated Ethernet switch ports for room devices. Unified deployment supports controller-based or controllerless modes.

Features

- Dual-band 802.11ac (Wi‑Fi 5) with 2x2:2 MU‑MIMO
- Integrated Ethernet switch ports for in‑room devices
- PoE-in with optional PoE pass‑through for endpoints
- Unified deployment flexibility: controller or Instant
- Slim wall-plate design for fast room turn-ups

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

Technical Specifications

Technical Specifications

- Wi‑Fi standard: 802.11ac (Wi‑Fi 5), backward compatible with 802.11a/b/g/n
- Radios/MIMO: dual-band concurrent, 2x2:2 MU‑MIMO
- Max PHY rate: up to 867 Mbps (5 GHz, 80 MHz channel)
- Bands: 2.4 GHz and 5 GHz
- Channel widths: 20/40/80 MHz
- Antenna type: integrated internal antennas
- Form factor: wall-plate (hospitality) for standard in-room outlets
- Ethernet: 1x 10/100/1000 uplink plus integrated LAN switch ports (quantity varies by model)
- PoE-in: IEEE 802.3af; higher power (802.3at) recommended for PoE pass-through use-cases
- PoE pass-through: one LAN port can provide PSE when sufficient input power is available (model/power dependent)
- Deployment modes: controller-based or controllerless (Instant) unified operation
- Mounting: attaches to standard telecom/electrical wall box; desk stand and other accessories available separately
- Security: WPA2-Enterprise, 802.1X, role-based access (feature set depends on software)
- Environment: indoor, hospitality/MDU-focused design
- Color: white
