Aruba

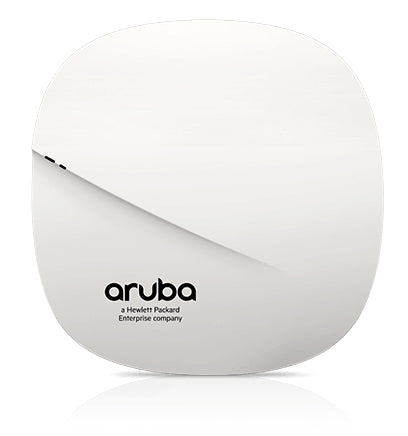

Aruba JX952A | AP-207 Wi‑Fi 5 AP | Dual‑Band 2x2:2 | 1x 1GbE | 802.3af PoE | Internal Antennas

SKU:JX952A

Regular price POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

Dual-radio 802.11ac (Wi‑Fi 5) access point with 2x2:2 MIMO for cost-effective enterprise WLAN. Ideal for classrooms, branch offices, and small/medium sites requiring reliable dual-band coverage with 1GbE uplink and 802.3af PoE. Supports controller-managed or Instant deployments (mode depends on firmware).

Features

- Cost‑effective enterprise Wi‑Fi 5 coverage
- Dual‑band 2x2:2 MIMO for balanced performance
- Simple 1GbE uplink with 802.3af PoE power
- Internal antennas for streamlined installation
- Flexible deployment with controller or Instant mode

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details
  • You may also like
  • Best sellers
  • Related Products

specs-tabs

Collapsible content

FAQs

Technical Specifications

FAQs

Q: Does this AP require a controller?
A: It supports both controller-managed and Instant modes; the active mode depends on firmware. Confirm your intended deployment mode and licensing.

Q: Is a power injector included?
A: No. Power via 802.3af PoE switch or a compatible PoE injector (sold separately).

Q: Can it operate on 2.4 GHz and 5 GHz simultaneously?
A: Yes, it is a dual-radio AP operating concurrently on 2.4 GHz and 5 GHz.

Q: Are external antennas supported?
A: This model uses internal antennas and does not require external antenna modules.

Technical Specifications

- Wi‑Fi standard: IEEE 802.11ac Wave 1 (Wi‑Fi 5)
- Radios/MIMO: 2x2:2 (simultaneous dual band)
- Bands: 2.4 GHz (802.11n) and 5 GHz (802.11ac)
- Max PHY rates: up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
- Ethernet: 1x 10/100/1000Base‑T (RJ45) uplink
- PoE: 802.3af (Class 3), typical consumption up to ~11W (features dependent)
- Antennas: Internal omnidirectional
- Mounting: Wall/ceiling (brackets may vary by environment)
- Security: WPA2‑Enterprise/Personal; 802.1X (RADIUS) support
- Management: Controller-managed or Instant mode (firmware dependent)
