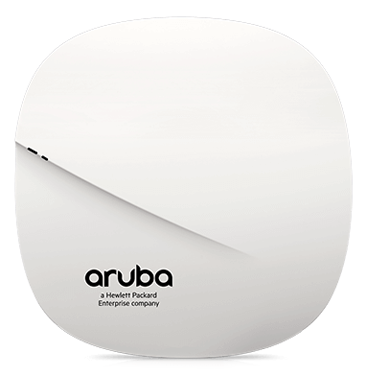

Aruba JX945A | Instant IAP-305 Access Point, Wi-Fi 5 (802.11ac), dual radio, 2x2:2 MU-MIMO, internal antennas

SKU:JX945A

Stock Status: Enquire

Request Quote

Sale Sold out

Shipping calculated at checkout.

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Indoor 802.11ac Wave 2 access point with integrated antennas and Instant controllerless operation. The 3x3:3 5 GHz radio and 2x2:2 2.4 GHz radio deliver dependable performance for offices, schools, and hospitality. Two 1GbE ports with PoE enable clean, flexible installs.

Features

- Instant controllerless deployment for fast rollouts
- Wave 2 MU-MIMO for efficient multi-client performance
- 3x3:3 5 GHz radio for high throughput
- Dual 1GbE with PoE for flexible cabling
- Integrated antennas for streamlined installs
- BLE radio enabling proximity-based services

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi standard: IEEE 802.11ac Wave 2 (Wi‑Fi 5); backward compatible with 802.11a/b/g/n
- Radios: dual-concurrent 2.4 GHz and 5 GHz
- Spatial streams: 3x3:3 (5 GHz), 2x2:2 (2.4 GHz)
- Max data rates: up to 1300 Mbps (5 GHz), up to 300 Mbps (2.4 GHz)
- MU-MIMO: supported (downlink)
- Antenna type: integrated omnidirectional
- Ethernet: 2x 10/100/1000BASE-T (RJ45) — 1x PoE-in uplink, 1x downlink
- PoE: IEEE 802.3af/at compliant
- Bluetooth Low Energy (BLE): integrated
- Mounting: wall or ceiling; indoor-rated
- Security: WPA2-Enterprise/Personal, 802.1X

FAQs

Q: Is a controller required?
A: No. This model operates in Instant (controllerless) mode and can form a cluster for simplified deployments.

Q: Can it be converted to a controller-managed mode later?
A: Yes. It can be converted to a campus AP for controller management if needed.

Q: Does it include a PoE injector?
A: No. PoE injectors and power supplies are sold separately.

Q: What PoE class is supported?
A: Compatible with 802.3af and 802.3at power sources.
