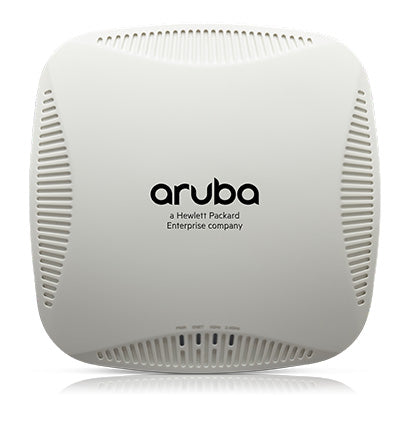

• Aruba JW240A IAP-225 white Wi-Fi access point with vented design
1 1

Aruba

Aruba JW240A | Instant IAP-225 Access Point, Wi-Fi 5 (802.11ac), dual radio, 3x3:3 MIMO, internal antennas

JW240A

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

High-performance indoor dual-radio access point with 3x3:3 MIMO for reliable 802.11ac Wave 1 connectivity. Runs Instant for controllerless deployment, supporting fast setup, clustering, and enterprise security. Ideal for high-density offices, classrooms, and retail.

Features

- Instant (controllerless) deployment for rapid rollout
- 3x3:3 MIMO for high throughput and robust coverage
- Dual GbE ports with link aggregation for increased backhaul capacity
- Enterprise security with WPA2‑Enterprise and 802.1X
- Integrated antennas simplify installation and aesthetics

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi‑Fi standard: IEEE 802.11a/b/g/n/ac (Wave 1)
- Radios/bands: Dual concurrent 2.4 GHz + 5 GHz
- MIMO/spatial streams: 3x3:3
- Max data rates: up to 1300 Mbps (5 GHz, 802.11ac 80 MHz) + 450 Mbps (2.4 GHz, 802.11n)
- Antenna: Integrated omnidirectional (internal)
- Management mode: Instant (controllerless) with clustering
- Ethernet: 2x 10/100/1000BASE‑T (PoE‑in on primary; LACP/link aggregation supported)
- PoE: 802.3af/at (PoE+ recommended for full feature set)
- Security: WPA2‑Enterprise/PSK, 802.1X, AES
- Mounting: Ceiling or wall; indoor-rated

FAQs

Q: Is this unit controllerless out of the box?
A: Yes, it runs Instant for controllerless deployment and can form an Instant cluster.

Q: Does it require PoE+?
A: It operates on 802.3af, but 802.3at (PoE+) is recommended to enable all features and highest performance.

Q: Can it be converted to controller-based operation?
A: Yes, Instant units can be converted to controller-based mode if required by your environment.

Q: What is the peak PHY rate?
A: Up to 1.75 Gbps aggregate (1300 Mbps on 5 GHz + 450 Mbps on 2.4 GHz).
