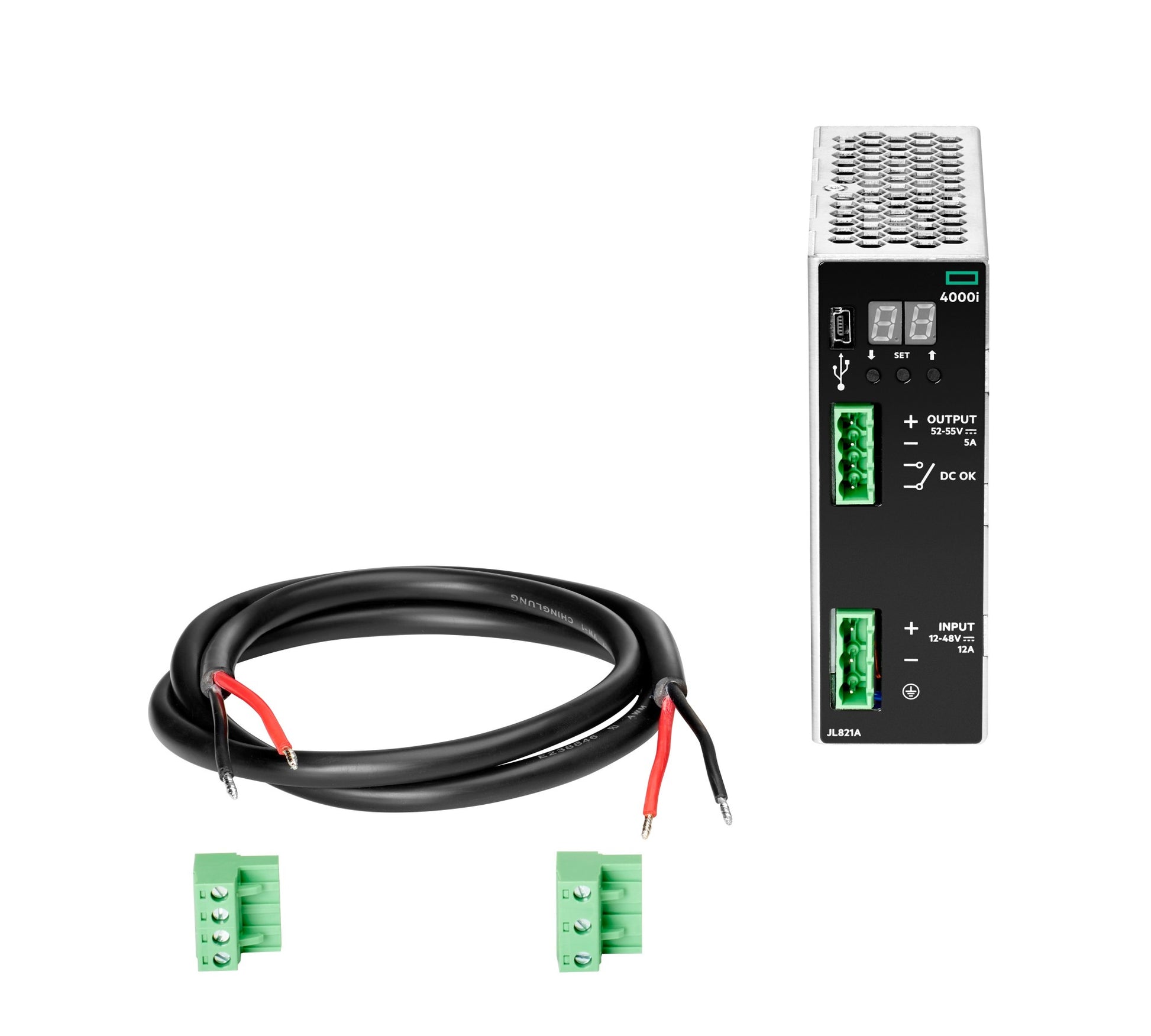

Aruba JL821A | CX 4100i DIN-Rail Power Supply, 240W, 12-48VDC Input
SKU:JL821A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
This DIN-rail DC-to-DC power supply is built for the Aruba CX 4100i ruggedized switch (JL817A). It accepts a 12-48 VDC input and delivers 54 VDC for PoE, making it a fit for industrial, harsh-environment and DC-powered deployments where the 4100i needs a field-replaceable external PSU.
The unit is rated at 240W output and supports up to 180W of PoE power, with a maximum of 4.4A at 54V delivered to the switch. The input accepts up to 12A through AWG 16-12 wiring. With the JL821A fitted and the switch running on a 48 VDC input, the switch draws 22W at idle and 27W at 100% traffic, with heat dissipation of 94 BTU/hr at room temperature. A micro-USB interface provides control and monitoring.
The PSU mounts on a DIN rail to EN60715, vertical orientation only, and measures 115 x 40 x 110 mm at 0.4 kg. Up to two PSUs can be installed on the 4100i for redundant, non-sharing operation. Sibling supplies for the same switch are the JL819A (240W, 100-240VAC) and JL820A (480W, 100-240VAC).
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Ruggedised DIN-rail DC power supply for industrial and harsh environments
- Wide 12-48 VDC input range suits DC-powered sites
- Field-replaceable external PSU for the Aruba CX 4100i
- Supports redundant operation with two PSUs on the 4100i (non-sharing)
- Micro-USB port for control and monitoring
- Powers PoE on the 4100i, which supports 802.3af/at/bt up to 60W per port
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Model: JL821A, Aruba 4000i POE 54VDC 240W 12-48VDC DIN Power Supply
- Output voltage: 54 VDC
- Rated output power: 240W
- PoE power available: 180W (max 4.4A at 54V to the switch)
- DC input voltage (nominal): 12-48 VDC
- Input current (max): 12A
- Input wire gauge: AWG 16-12
- Interfaces: 1x micro-USB for control and monitoring
- Form factor: DIN rail (EN60715), vertical mounting only
- Dimensions (H x W x D): 115 x 40 x 110 mm (4.53 x 1.57 x 4.33 in)
- Weight: 0.4 kg (0.88 lb)
- Heat dissipation: 94 BTU/hr at 48 V, 25 C
- Switch power consumption at 48 VDC: 22W idle, 27W at 100% traffic, 56W at 100% traffic with heater
- Redundancy: up to 2 PSUs per switch, redundant (non-sharing)
FAQs
Q: Which switch does the JL821A work with?
A: It is a supported power supply for the Aruba CX 4100i switch JL817A, the model with external power supplies.
Q: What input voltage does it need?
A: It takes a 12-48 VDC nominal DC input, up to 12A through AWG 16-12 wiring, and outputs 54 VDC.
Q: How much PoE power can it supply?
A: It is rated at 240W and makes up to 180W of PoE power available to the switch, at a maximum of 4.4A.
Q: How does it differ from the JL819A and JL820A?
A: The JL821A is a DC-input unit (12-48 VDC), while the JL819A (240W) and JL820A (480W) take 100-240VAC input.
Q: Can two be installed for redundancy?
A: Yes. The 4100i supports up to two PSUs in a redundant, non-sharing arrangement.
