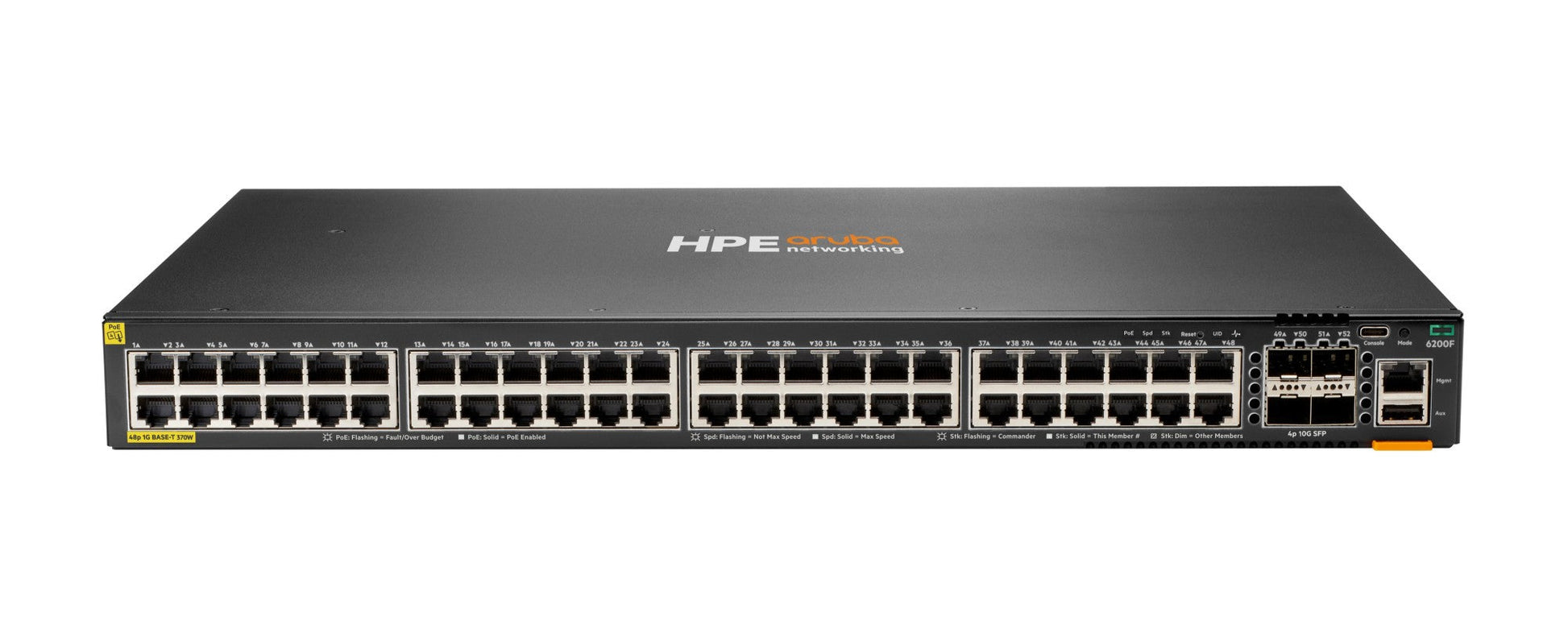

Aruba JL727A | CX 6200F 48-Port Gigabit PoE+ Switch, 370W, 4x 10G SFP+
SKU:JL727A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6200F is a fixed-configuration, stackable Layer 3 access switch running AOS-CX. This model has 48 Gigabit RJ45 ports with Class 4 PoE (802.3at) and four 1G/10G SFP/SFP+ uplinks, making it a practical access layer switch for enterprise branch offices, campuses and SMB networks.
The fixed 500W power supply provides a 370W PoE budget, with up to 30W per port on 802.3af and 802.3at ports. That suits IP phones, security cameras and wireless access points. Switching capacity is 176 Gbps with forwarding up to 130.9 Mpps, backed by 8 GB DDR4 memory and 16 GB eMMC flash. VSF stacking links up to 8 members in a chain or ring, and a USB-C console, OOBM port and USB Type-A host port are provided for management.
AOS-CX runs on the switch without a separate licence. Cloud management through Aruba Central needs a separate Aruba Central subscription, available in Foundation or Advanced tiers. Aruba NetEdit needs its own software licence. Supported uplink optics include the Aruba J4860D, J8177D, J9150D, J9151E, J9153D and JL563A transceivers, as well as SFP+ DAC cables.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Runs AOS-CX, a database-driven operating system with a built-in time series database, REST APIs and Python scripting
- Aruba Network Analytics Engine (NAE) for automated monitoring and troubleshooting
- VSF front-plane stacking of up to 8 members in chain or ring
- Aruba CX Mobile App with a Bluetooth dongle for deployment, configuration and stacking
- Aruba Dynamic Segmentation for role-based policy across wired and wireless
- Managed through Aruba Central, cloud-based or on-premises
- Static and OSPF routing, ACLs and QoS
- IPv6 support including dual stack, ACL/QoS and OSPFv3 routing
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 10/100/1000BASE-T Class 4 PoE (802.3at), up to 30W per port
- Uplinks: 4 x 1G/10G SFP/SFP+
- PoE standards: IEEE 802.3af, 802.3at
- PoE budget: up to 370W
- Power supply: fixed 500W AC, 100-127V / 200-240V, 50/60Hz
- Switching capacity: 176 Gbps
- Throughput: up to 130.9 Mpps
- CPU: Quad Core ARM Cortex A72 at 1.8 GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB
- Stacking: VSF, up to 8 members
- Management ports: 1 x USB-C console, 1 x OOBM, 1 x USB Type-A host
- MAC table capacity: 16,000
- IPv4 unicast routes: 2,048
- IPv6 unicast routes: 1,024
- IPv4 host table (ARP): 8,192
- Switched virtual interfaces (dual stack): 128
- Power consumption at 230 VAC: 10W hibernation, 60W idle, 76W at 100% traffic
- Operating temperature: 0 to 45 C
- Operating relative humidity: 15% to 95% at 40 C, non-condensing
- Airflow: front and side to back, fixed fans
- Dimensions (H x W x D): 4.39 x 44.2 x 32.7 cm, 1U
- Weight: 5.05 kg
- Mounting: 19 in rack or horizontal surface
FAQs
Q: Does the JL727A need a licence to run AOS-CX?
A: No. AOS-CX runs on the switch without a separate licence. Aruba Central cloud management needs a separate Aruba Central subscription (Foundation or Advanced), and Aruba NetEdit needs its own software licence.
Q: How much PoE power does this switch provide?
A: It has a fixed 500W power supply that delivers up to 370W of Class 4 PoE budget across the 48 ports, with up to 30W per port on 802.3af and 802.3at.
Q: Which transceivers can I use in the SFP+ uplink ports?
A: The four uplink ports accept 1G SFP and 10G SFP+ modules. Listed genuine options are the Aruba J4860D, J8177D, J9150D, J9151E, J9153D and JL563A, plus SFP+ DAC cables such as the J9281D.
Q: How many switches can be stacked together?
A: VSF stacking supports up to 8 members in a chain or ring, and long-range transceivers allow stacking distances of up to 10 km.
Q: What rack mounting options are available for this switch?
A: It mounts in a 19 in EIA rack or on a horizontal surface. The HPE X410 (J9583A) and Aruba X414 (J9583B) 1U universal 4-post rack mounting kits are listed for it.
