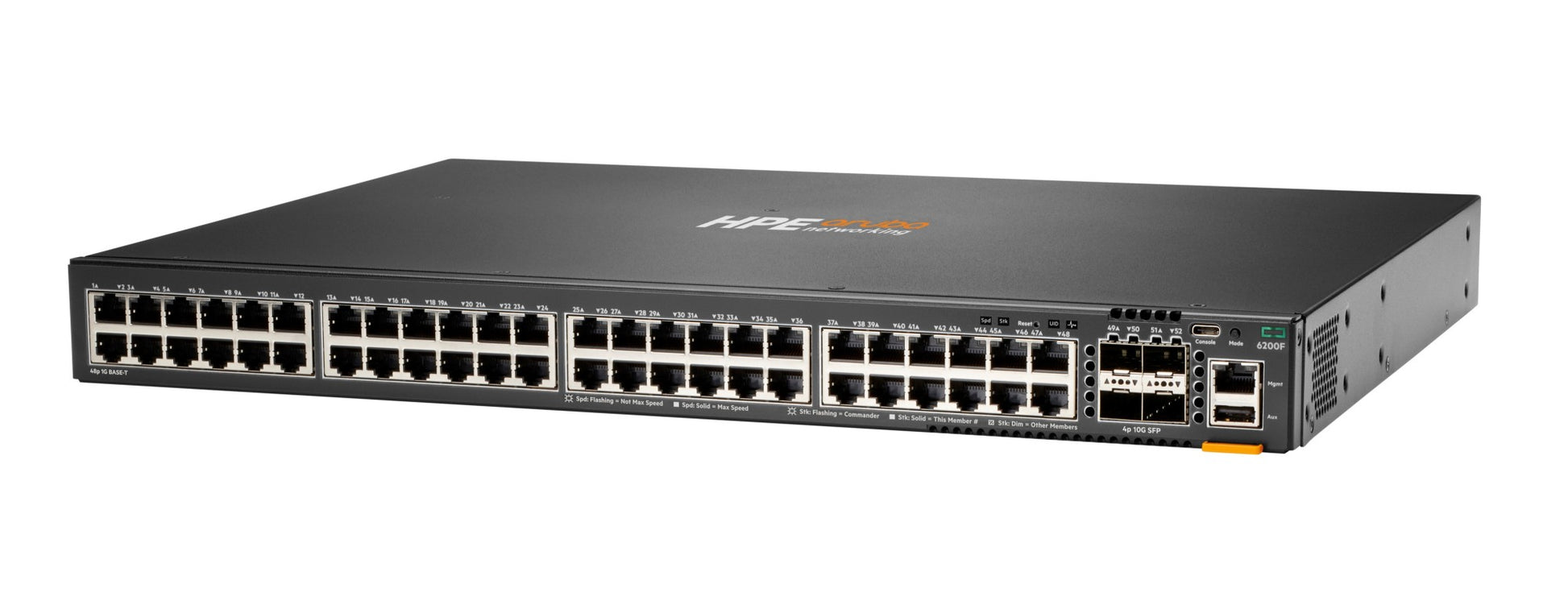

Aruba JL726A | CX 6200F 48-Port Gigabit Switch, 4x 10G SFP+, Non-PoE
SKU:JL726A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba CX 6200F is a fixed-configuration, stackable Layer 2/3 access switch from the Aruba CX 6200 series, running AOS-CX. It suits enterprise branch offices, campuses and SMB networks that need 1G client connectivity with 10G uplinks and do not require PoE.
This 48-port, non-PoE model provides 48 x 10/100/1000BASE-T ports and 4 x 1/10G SFP/SFP+ uplinks. Switching capacity is 176 Gbps with throughput of up to 130.9 Mpps, backed by 8 GB DDR4, 16 GB eMMC and an 8 MB packet buffer. It uses a fixed internal 200W AC power supply and draws 55W at idle and 68W at 100% traffic at 230 VAC. Up to 8 members can be joined in a VSF stack over the uplink ports.
It works with Aruba DAC cables J9281D and J9283D, 1G SFP optics such as J4858D and J4859D, and 10G SFP+ optics such as J9150D and J9151E. The rack kits listed for it are J9583A and J9583B. Management options include the Aruba CX Mobile App, Aruba NetEdit and Aruba Central.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 2/3 access switching with ACLs, robust QoS and static and Access OSPF routing
- VSF stacking for up to 8 members, with stack links up to 10 km using long range transceivers
- Built-in 1/10GbE SFP/SFP+ uplinks
- Aruba Network Analytics Engine (NAE) for monitoring and troubleshooting
- One-touch deployment with the Aruba CX Mobile App
- Aruba Dynamic Segmentation for secure user and IoT access
- AOS-CX database-driven OS with REST APIs and Python scripting
- Managed through Aruba Central, cloud-based or on-premises
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48x 10/100/1000BASE-T (non-PoE)
- Uplinks: 4x 1/10G SFP/SFP+
- Operating system: AOS-CX
- Switching capacity: 176 Gbps
- Throughput: up to 130.9 Mpps
- Stacking: VSF, up to 8 members
- Power supply: fixed 200W AC
- AC input: 100-120V/200-240V, 50/60Hz, 2.5A/1.4A
- Power consumption (230 VAC): 7W hibernation, 55W idle, 68W at 100% traffic
- 80 PLUS certification: Silver
- Console and management: 1x USB-C console, 1x OOBM, 1x USB Type-A host port
- CPU: Quad Core ARM Cortex A72 at 1.8 GHz
- Memory and flash: 8 GB DDR4, 16 GB eMMC
- Packet buffer: 8 MB
- MAC table capacity: 16,000
- IPv4 unicast routes: 2,048
- IPv6 unicast routes: 1,024
- Dimensions (H x W x D): 4.39 x 44.2 x 32.7 cm
- Weight: 4.45 kg
- Operating temperature: 0 to 45 C up to 5,000 ft
- Airflow: front and side to back
- Mounting: 19 in. EIA rack or equipment cabinet, horizontal surface mounting only
FAQs
Q: Does this switch provide PoE?
A: No. All 48 Gigabit ports are non-PoE and the switch has a fixed internal 200W AC power supply that powers the switch only.
Q: Does it need a licence to run AOS-CX?
A: AOS-CX software, including NAE, is included with the switch. Aruba NetEdit needs a separate licence, and Aruba Central management needs its own subscription.
Q: Which optics and cables work with the uplink ports?
A: The 1/10G SFP/SFP+ uplinks work with J4858D, J4859D, J4860D and J8177D for 1G, and J9150D, J9151E, J9153D and JL563A for 10G. DAC cables J9281D (1m) and J9283D (3m) are also supported.
Q: How many switches can be stacked together?
A: Up to 8 members can be joined in a VSF stack, with stacking done over the uplink ports.
Q: Which rack kits suit this switch?
A: The Aruba X414 1U Universal 4-post kit (J9583B) and the HPE X410 1U Universal 4-post kit (J9583A) are listed for this model.
