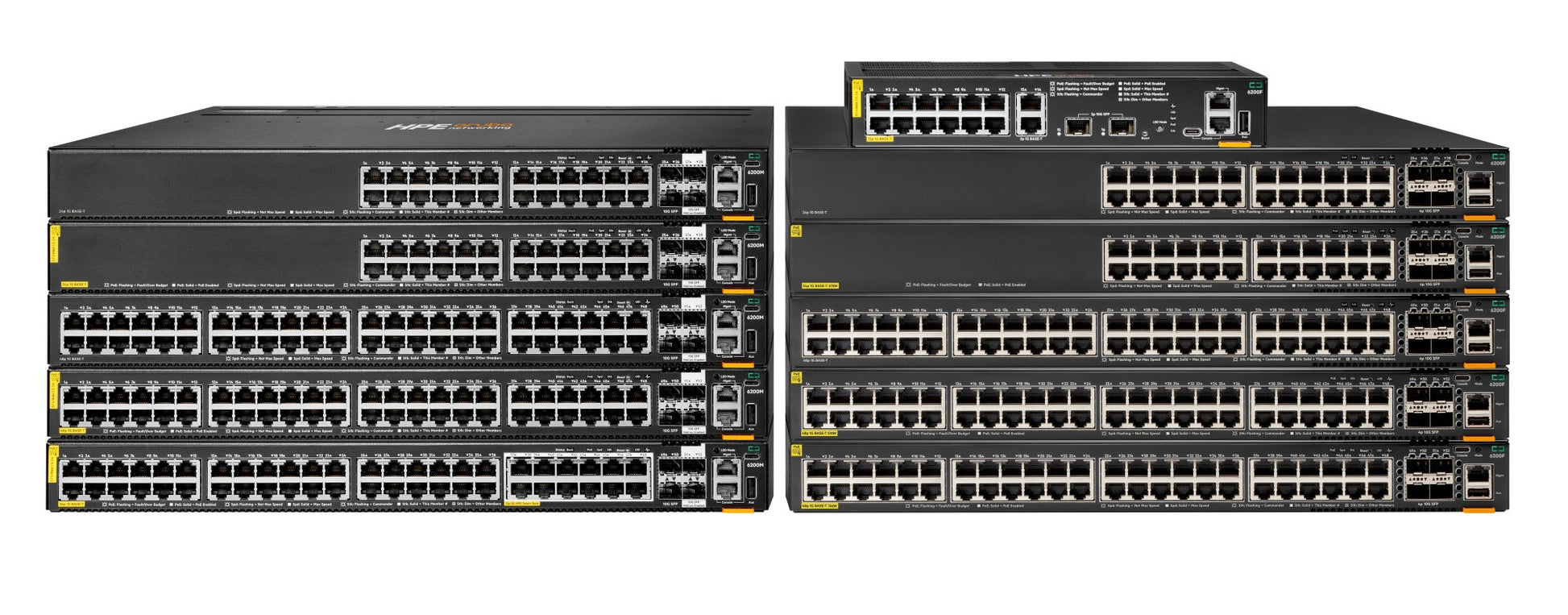

Aruba JL724A | CX 6200F 24-Port Gigabit Switch, No PoE, 4x 10G SFP+

SKU:JL724A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba CX 6200F 24G 4SFP+ is a fixed-configuration, stackable access switch from the Aruba CX 6200 series. It runs AOS-CX and is aimed at enterprise branch offices, campuses and SMB networks that need cloud-manageable 1G access with 10G uplinks and no PoE requirement.

It provides 24 x 10/100/1000BASE-T ports and 4 x 1/10G SFP/SFP+ uplink ports, with 128 Gbps switching capacity and up to 95.2 Mpps throughput. This is the non-PoE model with a fixed 200W power supply, in contrast to the JL725A with Class 4 PoE at 370W and the 48-port JL726A. Layer 2+ switching with static Layer 3 routing and ACL support is built in, and the base AOS-CX feature set is included with no separate licence needed.

Up to 8 members of the 24 and 48-port 6200F and 6200M switches can be joined in a VSF stack, with a stacking distance of up to 10 km using long range transceivers. A USB-C console, dedicated OOBM port and USB-A host port are provided, and the Aruba CX Mobile App can manage the switch over a Bluetooth dongle.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs AOS-CX with a cloud-manageable, stackable access design
- VSF stacking of up to 8 members, over up to 10 km with long range transceivers
- Layer 2+ switching with static Layer 3 routing
- ACL support for access control at the network edge
- Aruba CX Mobile App management over Bluetooth dongle for zero-touch deployment
- Aruba Dynamic Segmentation for simplified, secure access
- Dedicated OOBM port, USB-C console and USB-A host port

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 24x 10/100/1000BASE-T
- Uplinks: 4x 1/10G SFP/SFP+
- PoE capability: No PoE
- Management ports: 1x USB-C console, 1x OOBM, 1x USB Type-A host
- CPU: Quad Core ARM Cortex A72 at 1.8 GHz
- Memory: 8 GB DDR4
- Flash: 16 GB eMMC
- Packet buffer: 8 MB
- Switching capacity: 128 Gbps
- Throughput: Up to 95.2 Mpps
- Latency (64-byte): 2.28 µs at 1 Gbps, 1.46 µs at 10 Gbps
- Stack size: Up to 8 members
- Stacking bandwidth: 40 Gbps
- Max stacking distance: Up to 10 km with long range transceivers
- MAC table capacity: 32,768
- IPv4 unicast routes: 2,048
- IPv6 unicast routes: 1,024
- IPv4 host table (ARP): 8,192
- Power supply: Fixed 200W
- Input voltage: 100-127 VAC / 200-240 VAC, 50/60 Hz
- Power consumption (230 VAC): 49 W idle, 59 W at 100% traffic
- Airflow: Fixed fans, front and side to back
- Dimensions (H x W x D): 4.39 x 44.2 x 32.7 cm
- Weight: 4.36 kg

FAQs

Q: Does the JL724A need a separate software licence?
A: No. The base AOS-CX software feature set is included with the switch, so no separate licence is needed.

Q: Does this switch provide PoE?
A: No. The JL724A has a fixed 200W internal power supply and no PoE. For PoE, the JL725A is the 24-port Class 4 PoE model with a 370W budget.

Q: What can I stack it with?
A: It forms a VSF stack of up to 8 members with other 24 and 48-port Aruba 6200F and 6200M switches. Long range transceivers allow stacking distances of up to 10 km.

Q: What do the SFP+ uplink ports support?
A: The 4 SFP/SFP+ ports take 1G and 10G transceivers, so they can be used for uplinks or for stacking over fibre.

Q: How does it differ from the JL725A and JL726A?
A: The JL724A is the 24-port non-PoE model with a fixed 200W supply. The JL725A is a 24-port Class 4 PoE model with 370W, and the JL726A is a 48-port model.
