Aruba

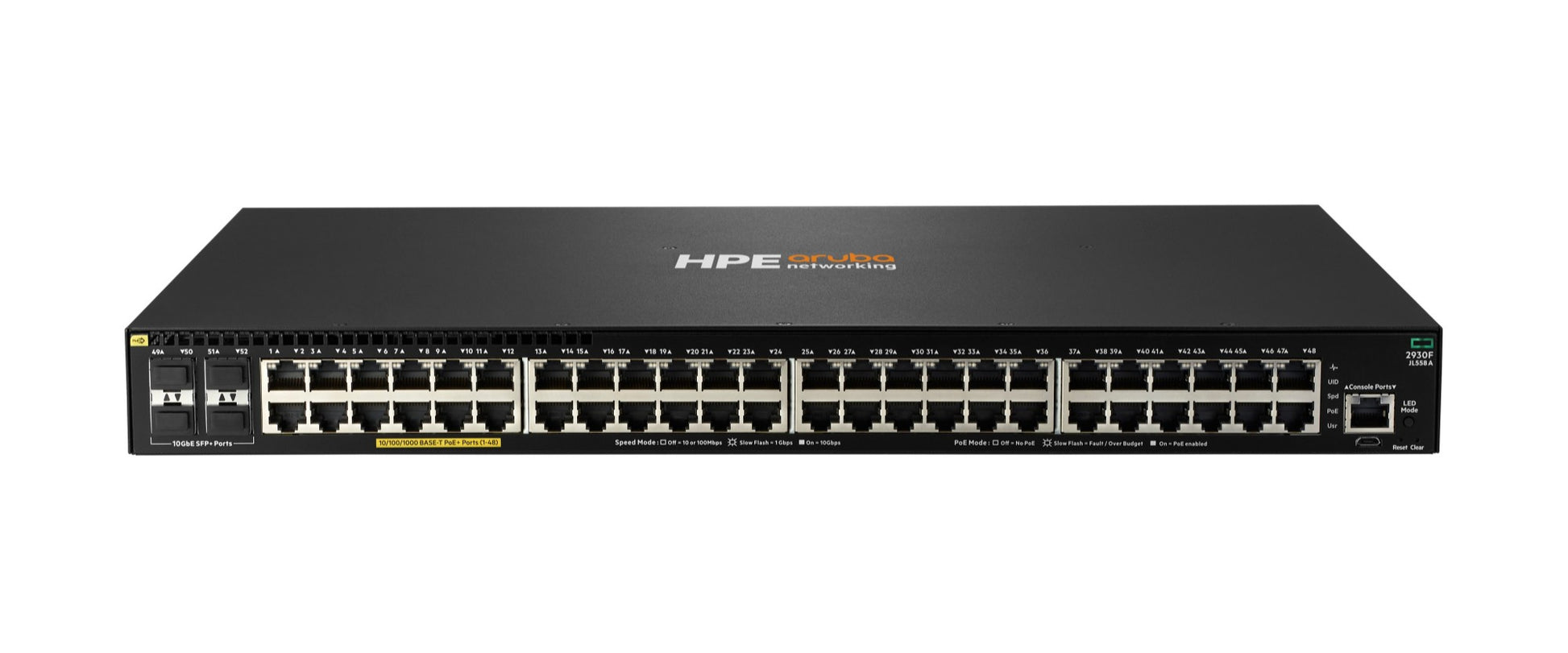

Aruba JL558A | 2930F 48-Port Gigabit PoE+ Switch, 740W, 4x SFP+

SKU:JL558A

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Aruba 2930F JL558A is a fixed-configuration Layer 3 managed access switch built for enterprise edge, SMB and branch offices, and digital workplaces with large numbers of mobile users. It suits PoE+ powered access points, IP phones and cameras at the access layer.

It provides 48 autosensing 10/100/1000 RJ-45 ports with IEEE 802.3at PoE+ and a 740 W PoE+ budget, plus four 1/10GbE SFP+ uplink ports. Switching capacity is 176 Gbps with throughput up to 112 Mpps. Routing covers static, RIP and Access OSPF, and Aruba Virtual Switching Framework (VSF) stacking supports up to 8 members. The switch runs its standard Layer 3 Lite feature set with no separate licence needed to operate.

The SFP+ ports accept 1G SFP and 10G SFP+ transceivers. The switch can be managed through the CLI, web GUI, SNMP, AirWave or Aruba Central, and it works with ClearPass Policy Manager for wired and wireless policy.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Layer 3 switching with static, RIP and Access OSPF routing
- VSF stacking for up to 8 members acting as a single switch
- Dynamic Segmentation, ACLs and robust QoS
- REST APIs and OpenFlow support for software-defined networking
- Zero Touch Provisioning and optional Aruba Central cloud management
- Consistent wired and wireless experience with Aruba AirWave and ClearPass Policy Manager
- Management via CLI, web GUI, SNMP, AirWave and Aruba Central

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x 10/100/1000 RJ-45 autosensing with IEEE 802.3at PoE+
- Uplink ports: 4 x 1/10GbE SFP+ (PHY-less)
- PoE budget: 740 W PoE+
- Switching capacity: 176 Gbps
- Throughput: up to 112 Mpps
- Routing: Layer 3 managed (static, RIP, Access OSPF)
- Stacking: Aruba Virtual Switching Framework (VSF), up to 8 members
- Console: 1 dual-personality (RJ-45 or USB micro-B) serial port
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash storage: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress, 7.785 MB egress)
- Latency (1000 Mb): under 3.8 µs (64-byte packets)
- Latency (10 Gbps): under 1.6 µs (64-byte packets)
- Duplex: 10BASE-T/100BASE-TX half or full, 1000BASE-T full only
- Input voltage: 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power rating: 980 W
- Idle power: 49.9 W
- Maximum heat dissipation: 420.9 BTU/hr (444.1 kJ/hr)
- Form factor: 1U rack-mountable

FAQs

Q: Does this switch need a licence to operate?
A: No. It runs with its standard Layer 3 Lite feature set (static, RIP, Access OSPF) and needs no separate licence. Aruba Central cloud management is optional and needs a separate subscription.

Q: How much PoE power does it provide?
A: It provides a 740 W PoE+ budget across its 48 ports using IEEE 802.3at. It runs from an internal power supply on 100-127 / 200-240 VAC.

Q: What can I connect to the SFP+ uplink ports?
A: The four SFP+ ports accept 1G SFP and 10G SFP+ transceivers, so they can be used for either 1GbE or 10GbE uplinks.

Q: Can I stack it with other switches?
A: Yes. It supports Aruba Virtual Switching Framework (VSF) stacking with other 2930F switches, with up to 8 members.

Q: How can I manage it?
A: You can manage it through the CLI, web GUI or SNMP, or centrally with Aruba AirWave or Aruba Central. It also works with ClearPass Policy Manager.
