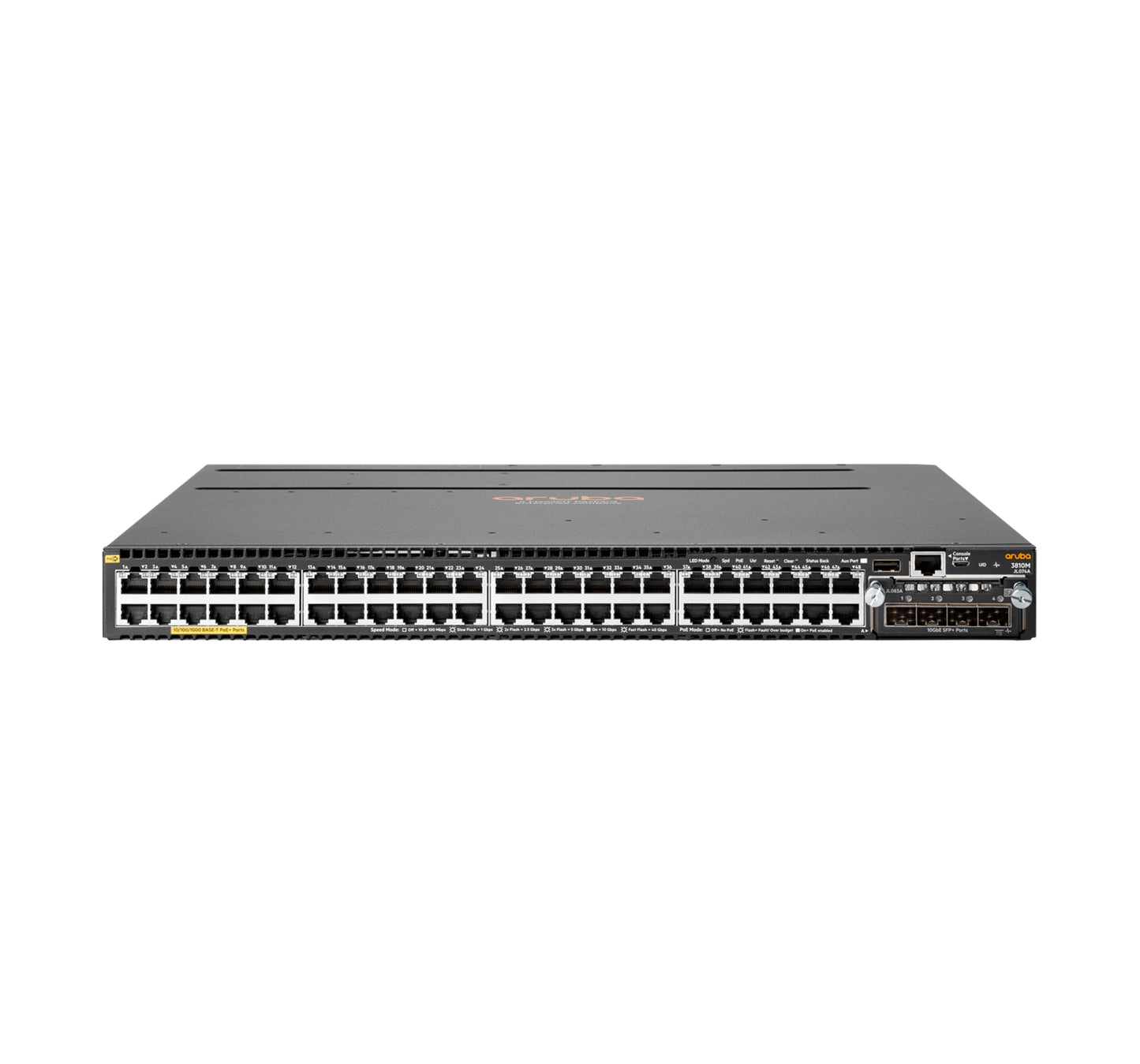

Aruba JL428A | 3810M 48-Port Gigabit PoE+ Switch, 680W, 4x 10G SFP+
SKU:JL428A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba 3810M 48-port Gigabit PoE+ switch is a stackable, Layer 3 managed 1U campus access switch built for enterprise, SMB and branch networks. It suits sites that need to power IP phones, wireless access points and IoT or security cameras over PoE+, with high-speed uplinks for wireless aggregation.
This model provides 48 autosensing 10/100/1000 PoE+ RJ-45 ports (IEEE 802.3at) and a 4-port SFP/SFP+ uplink module supporting 1G and 10G. The 680W PoE power supply sets the PoE budget, and a second power supply is supported for redundancy. Switching capacity is 320 Gbps with a 338 Gbps switch fabric and throughput of up to 190.5 Mpps. Virtual stacking supports up to 10 switches, and one open stacking module slot is available. Core switching and Layer 3 features need no separate software licence.
It works with Aruba X372 power supplies, 3810M modules and standard 1G SFP and 10G SFP+ transceivers, and can be managed through ClearPass, AirWave or Aruba Central.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 3 features with static, RIP and OSPF routing plus IPv6 support
- Virtual stacking of up to 10 switches
- MACsec encryption on ports 1-48
- OpenFlow support for SDN applications
- Management through ClearPass Policy Manager, AirWave and Aruba Central
- Redundant power supply option with a second supported supply
- Energy-efficient design with an 80 PLUS Silver power supply
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Fixed ports: 48 x 10/100/1000 PoE+ RJ-45 (IEEE 802.3at)
- Uplinks: 4 x 1G/10G SFP/SFP+ (JL083A module)
- PoE budget: 680W (Aruba X372 54VDC 680W, JL086A)
- Power supplies: 1 required, maximum 2
- Open module slots: 1 stacking module slot
- Serial console: 1 RJ-45 serial console port
- Processor and memory: Dual ARM Cortex A9 @ 1 GHz, 2 GB DDR3 SDRAM
- Packet buffer: 13.5 MB
- Latency: 1000 Mb < 2.8 us; 10 Gbps < 1.8 us; 40 Gbps < 1.5 us
- Throughput: up to 190.5 Mpps (64-byte packets)
- Routing/switching capacity: 320 Gbps
- Switch fabric: 338 Gbps
- Routing table: 10000 IPv4 entries, 5000 IPv6 entries
- MAC address table: 64000 entries
- Stacking: virtual stacking, up to 10 switches
- Form factor: 1U rack-mountable
- Dimensions (W x D x H): 44.25 x 43.13 x 4.39 cm
- Weight: 6.18 kg
- Input voltage: 100-240 VAC
- Operating temperature: 0 to 45 C
- Operating humidity: 15% to 95% at 40 C, noncondensing
- Storage temperature: -40 to 70 C
- Environmental: ENERGY STAR qualified, 80 PLUS Silver power supply
FAQs
Q: Does the JL428A need a software licence?
A: No separate licence is needed for core switching and Layer 3 features. Management through Aruba Central or AirWave needs separate subscriptions or licences.
Q: How much PoE power does it provide?
A: The 680W power supply sets the PoE budget, with PoE+ (802.3at) available on all 48 ports. A second X372 power supply is supported for redundancy.
Q: Which transceivers and modules does it support?
A: It accepts 1G SFP and 10G SFP+ transceivers in the 4-port uplink module (JL083A). It also supports 3810M modules and Aruba X372 power supplies (JL086A 680W, JL087A 1050W).
Q: Can it be stacked with other 3810M switches?
A: Yes. It supports virtual stacking of up to 10 switches and has one open stacking module slot.
Q: How does this model differ from other 3810M 48-port switches?
A: This SKU has 48 PoE+ ports, a 680W PoE power supply and a 4x SFP+ uplink module.
