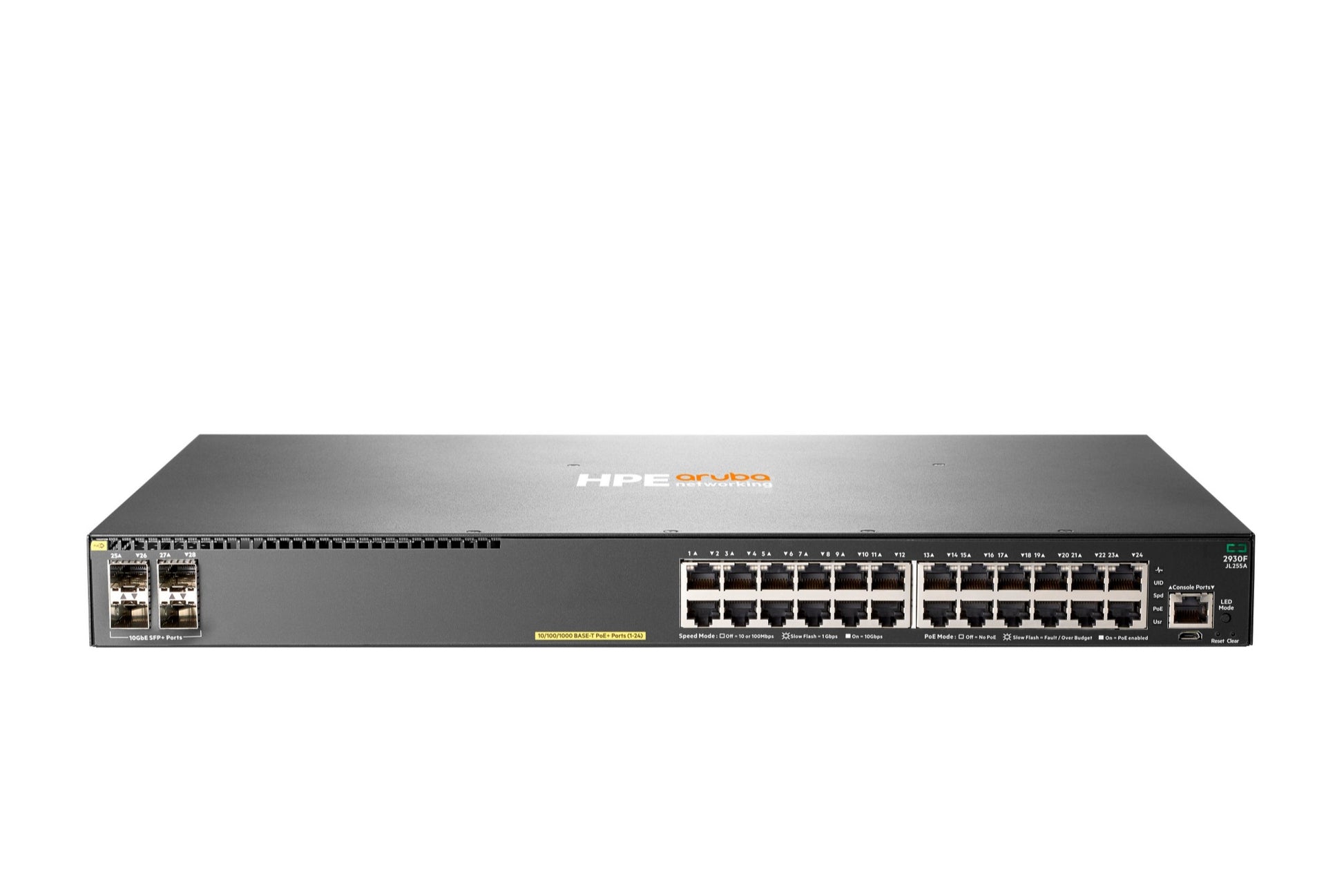

Aruba JL255A | 2930F 24-Port PoE+ Switch, 370W, 4x 10G SFP+
SKU:JL255A
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description
The Aruba 2930F 24G PoE+ 4SFP+ is a fixed-port Layer 3 managed access switch for campus and branch networks. It suits digital workplaces that need to power IP phones, wireless access points and cameras over Ethernet, with 10G uplinks back to the core or distribution layer.
The switch provides 24 autosensing 10/100/1000 RJ-45 PoE+ ports (IEEE 802.3at) with a 370 W PoE+ budget, plus 4 SFP+ ports that accept 1G SFP or 10G SFP+ transceivers. Switching capacity is 128 Gbps with throughput of up to 95.2 Mpps, and latency is under 3.8 µs at 1 Gbps. Layer 3 features include static routing and RIP, and VSF stacking is supported. This SKU includes the standard lifetime software feature set, so no subscription is needed to operate it.
It mounts in 1U of rack space and uses an internal AC power supply. It is managed with Aruba AirWave, IMC, ClearPass or Aruba Central, and the Aruba J9583A (HPE X410 1U Universal 4-post) rackmount kit is available for installation.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Layer 3 managed with static routing and RIP
- VSF stacking for simplified multi-switch management
- Wired and wireless management with Aruba AirWave and ClearPass Policy Manager
- Zero Touch Provisioning and cloud management through Aruba Central
- OpenFlow support for SDN applications
- Aruba ProVision ASIC with low latency and increased packet buffering
- Management through CLI, web browser, SNMP, Telnet, RMON1 and FTP
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 24x 10/100/1000 RJ-45 PoE+ (IEEE 802.3at)
- Uplink ports: 4x SFP+ 1/10GbE
- PoE budget: 370W PoE+
- Console: 1 dual-personality serial port (RJ-45 or USB micro-B)
- Processor: Dual Core ARM Cortex A9 at 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer: 12.38 MB (4.5 MB ingress, 7.785 MB egress)
- Switching capacity: 128 Gbps
- Throughput: up to 95.2 Mpps
- Latency (1000 Mb): under 3.8 µs
- Latency (10 Gbps): under 1.6 µs
- Input voltage: 100-127 / 200-240 VAC, 50/60 Hz
- Maximum power rating: 445 W
- Idle power: 36.8 W
- Maximum heat dissipation: 258 BTU/hr
- Operating humidity: 15 to 95% at 40 C, non-condensing
- Storage temperature: -40 to 70 C
- Airflow direction: Side-to-side
- Dimensions (W x D x H): 44.25 x 30.42 x 4.39 cm (1U)
- Weight: 3.9 kg
FAQs
Q: Does the JL255A need a software licence or subscription?
A: No. It includes the standard lifetime software feature set and needs no subscription to operate. Aruba Central cloud management is optional and licensed separately.
Q: How much PoE power does this switch provide?
A: It has a 370 W PoE+ budget shared across its 24 IEEE 802.3at ports. The maximum power rating of the unit is 445 W.
Q: What can be fitted in the 4 SFP+ uplink slots?
A: The SFP+ slots accept 1G SFP and 10G SFP+ transceivers, so they can serve as 1G or 10G uplinks.
Q: Which rack mount kit is used with this switch?
A: The HPE X410 1U Universal 4-post Rackmount Kit, J9583A, is the matching rack mount option for this 1U switch.
Q: Can it be stacked?
A: Yes. It supports VSF stacking, which lets multiple switches be managed as a single logical unit.
