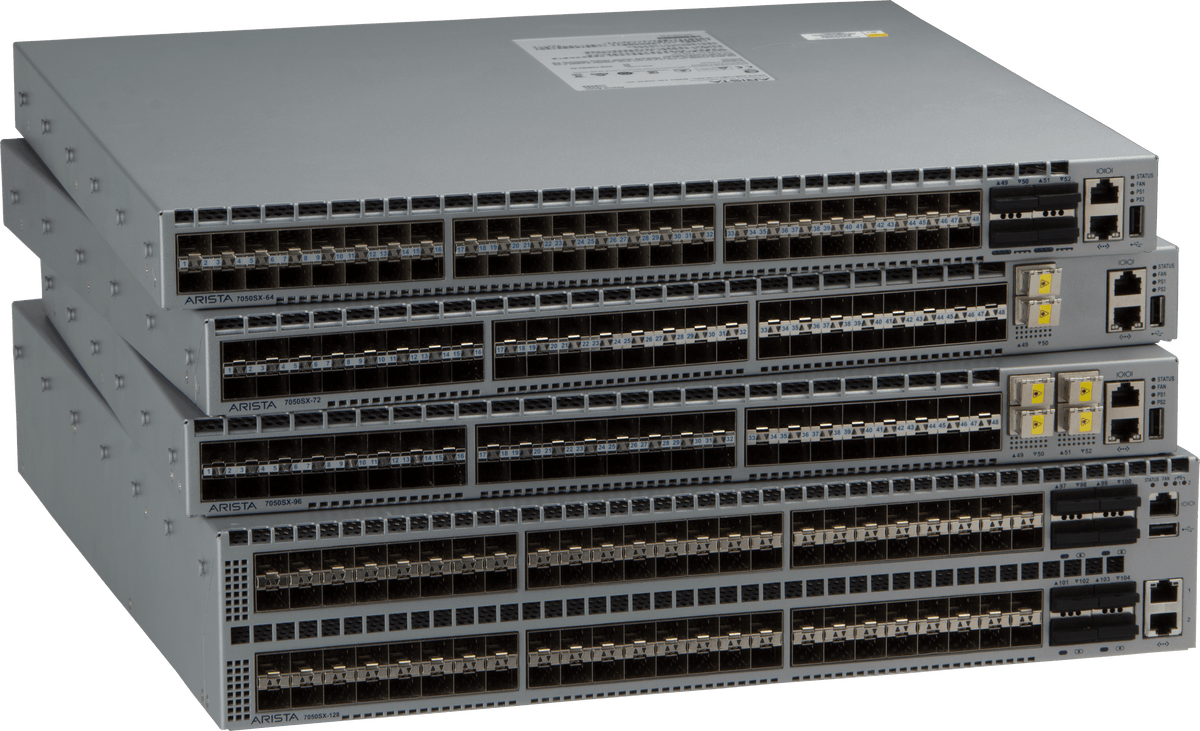

• Stacked arista dcs-7050sx2-72q-r network switches with metallic gray chassis and black ports for 10g and 40g connectivity
1 1

Arista

Arista DCS-7050SX2-72Q-R | 7050X2 48-Port 10G SFP+ Switch, 6x 40G, Rear-to-Front

DCS-7050SX2-72Q-R

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 7050X2 DCS-7050SX2-72Q-R is a 1RU fixed-configuration data centre leaf switch built for 10GbE server access with 40GbE uplinks. It suits top-of-rack deployments in data centre, cloud, big data and virtualised networks, and fits two-tier leaf/spine designs.

It provides 48 SFP+ ports running at 1/10GbE and 6 QSFP+ 40GbE ports, with wire-speed Layer 2 and Layer 3 forwarding at 1.44 Tbps and 1080 Mpps. Latency is from 550 ns, with a 16MB packet buffer using Dynamic Buffer Allocation. This SKU has rear-to-front airflow and ships with 2 hot-swap AC power supplies in a 1+1 redundant arrangement and 2 C13-C14 cords, plus 4 hot-swap N+1 fans. Typical power draw is 127W, with a 251W maximum. It runs Arista EOS and sits in EOS Feature License Group 2, with optional licences such as LIC-FIX-2-E for enhanced Layer 3 routing available separately.

The QSFP+ ports accept 40GBASE-SR4, XSR4, LR4, ER4, CR4 and AOC, as well as QSFP+ to 4x SFP+ breakout. The SFP+ ports accept 10GBASE-CR, AOC, SR, LR, ER, ZR and DWDM, 1GbE SX/LX and 100/1000BASE-T. Spare PSUs are PWR-500AC-R and spare fans are FAN-7000-R.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wire-speed Layer 2 and Layer 3 forwarding
- Dynamic Buffer Allocation for bursty data centre traffic
- Multi-chassis LAG (MLAG) for active/active Layer 2 multi-pathing
- VXLAN, OpenFlow, DirectFlow and eAPI support
- LANZ microburst detection, sFlow and DANZ advanced mirroring
- Zero Touch Provisioning and CloudVision support
- Single EOS image with Linux shell access and Python/C++ extensibility
- Hot-swap, reversible PSUs and fans with Smart System Upgrade and live software patching

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 48 x SFP+ (1/10GbE) and 6 x QSFP+ (40GbE)
- Throughput: 1.44 Tbps
- Packet forwarding: 1080 Mpps
- Latency: 550 ns
- Packet buffer: 16MB with Dynamic Buffer Allocation
- CPU: Quad-core x86
- System memory: 4GB
- Flash storage: 4GB
- Management ports: 1 x 10/100/1000, 1 x RS-232 serial (RJ-45), 1 x USB
- Power supplies: 2 x hot-swap AC (1+1 redundant), PWR-500AC-R
- Power inlet: 100-240VAC, 50/60Hz, IEC C13, 94% Platinum efficiency
- Power cords: 2 x C13-C14
- Fans: 4 x hot-swap (N+1 redundant)
- Airflow: Rear-to-front
- Power consumption: 127W typical, 251W maximum
- MAC addresses: 288K (UFT mode)
- IPv4 hosts: 208K
- IPv4 unicast routes: 144K
- IPv6 hosts: 104K
- ECMP: 128-way, 2K groups
- ACLs: 11K
- Dimensions (W x H x D): 48.3 x 4.4 x 40.6 cm (1RU)
- Operating temperature: 0 to 40 C
- Minimum EOS version: 4.18.0

FAQs

Q: Which EOS licences does this switch use?
A: It runs Arista EOS and falls under EOS Feature License Group 2. Optional licences such as LIC-FIX-2-E for enhanced Layer 3 (BGP, OSPF, ISIS, PIM, NAT), LIC-FIX-2-V for VMTracer and VXLAN, and LIC-FIX-2-Z for monitoring and automation are sold separately.

Q: What power supplies does it use?
A: It uses 2 hot-swap PWR-500AC-R AC power supplies in a 1+1 redundant arrangement, rated 100-240VAC at 50/60Hz with an IEC C13 inlet. A DC option, PWR-500-DC-R, exists for DC feeds.

Q: What airflow direction does this SKU use?
A: The -R suffix denotes rear-to-front airflow. Spare fans for this airflow direction are FAN-7000-R and the matching spare PSU is PWR-500AC-R.

Q: What optics and cables work in the ports?
A: The 48 SFP+ ports accept 10GBASE-CR, AOC, SR, SRL, LR, LRL, ER, ZR and DWDM, 1GbE SX/LX and 100/1000BASE-T. The 6 QSFP+ ports accept 40GBASE-SR4, XSR4, LR4, ER4, CR4, AOC and QSFP+ to 4x SFP+ breakout.

Q: What is the minimum EOS version?
A: The minimum supported EOS version is 4.18.0.
