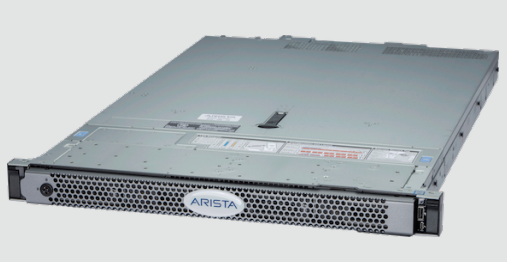

• Arista dca-200-veos physical appliance network switch with metallic gray chassis and perforated front panel rack mount
1 1

Arista

Arista DCA-200-VEOS | vEOS Physical Appliance, 4x 10G SFP+, Rack Mount

DCA-200-VEOS

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Arista DCA-200-VEOS is a rack-mountable physical appliance designed to host vEOS Router and CloudEOS virtual machines. Built on a KVM hypervisor platform, the Model 200 features four 10G SFP+ data ports and dual 1G management interfaces, delivering flexible network virtualization for enterprise and data center environments. The appliance enables scalable deployment of virtual routing instances with configurable CPU, memory, and interface resources tailored to specific performance requirements.

Features

KVM hypervisor platform for hosting vEOS Router and CloudEOS virtual machines
- Flexible VM resource allocation with configurable CPU cores, memory, and interfaces
- SRIOV NIC support for virtual function assignment to VMs
- Per-interface VLAN tagging for traffic isolation and broadcast domain separation
- NUMA-aware resource allocation for optimized VM performance
- Link Aggregation Control Protocol (LACP) support on management interfaces
- Bonded management interfaces (device0, cluster0) with Linux bridge connectivity
- Python-based launcher script for rapid VM provisioning and lifecycle management
- Query commands for monitoring VM resource utilization and interface mappings
- iDRAC (IPMI) support for remote management and troubleshooting
- Redundant power supply configuration support
- Hot-swappable components for serviceability
- Integration with Arista EOS for consistent network operating system experience
- Support for IPsec tunnels in vEOS Router instances
- Compatible with CloudVision for centralized management and automation

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 1U rack-mountable appliance
- Hypervisor: KVM (Kernel-based Virtual Machine)
- Data Interfaces: 4x 10G SFP+ ports (two 2x10G NIC cards)
- Management Interfaces: 2x 1G RJ45 ports with LACP bonding support
- Remote Management: iDRAC (IPMI) interface
- CPU Allocation: Configurable cores per VM instance (up to 20 total cores, 18 available for VMs)
- NUMA Optimization: CPU and memory allocated per NUMA node for performance
- Virtual Interfaces: Up to 32 virtual functions per physical interface
- VLAN Support: Per-interface VLAN tagging for broadcast domain separation
- Operating Temperature: 5°C to 35°C (41°F to 95°F) at up to 3,048m altitude
- Management: CLI, Web GUI, launcher script for VM provisioning

FAQs

Q: What is the Arista DCA-200-VEOS used for?
A: The DCA-200-VEOS is a physical appliance that hosts Arista vEOS Router and CloudEOS virtual machines. It provides network virtualization capabilities for enterprise networks, data centers, and cloud environments, allowing flexible deployment of virtual routing instances with customizable resources.

Q: Does the DCA-200-VEOS include vEOS software licenses?
A: No, the vEOS subscription license is not included with the DCA-200-VEOS appliance and must be purchased separately. The appliance provides the physical hardware platform only.

Q: How many virtual machines can I run on the DCA-200-VEOS?
A: The number of VMs depends on resource allocation. The appliance has 20 total CPU cores with 18 available for VMs (2 reserved for the hypervisor). Each VM can be configured with variable CPU cores, memory, and interfaces based on performance requirements and NUMA optimization constraints.

Q: What connectivity options are available?
A: The DCA-200-VEOS provides four 10G SFP+ ports for high-speed data traffic, two 1G management ports with LACP bonding capability, and an iDRAC interface for out-of-band remote management.

Q: Is the DCA-200-VEOS compatible with other Arista products?
A: Yes, the DCA-200-VEOS is designed to integrate seamlessly with Arista switching, routing, and management platforms, including CloudVision for centralized management and automation of network virtualization deployments.
