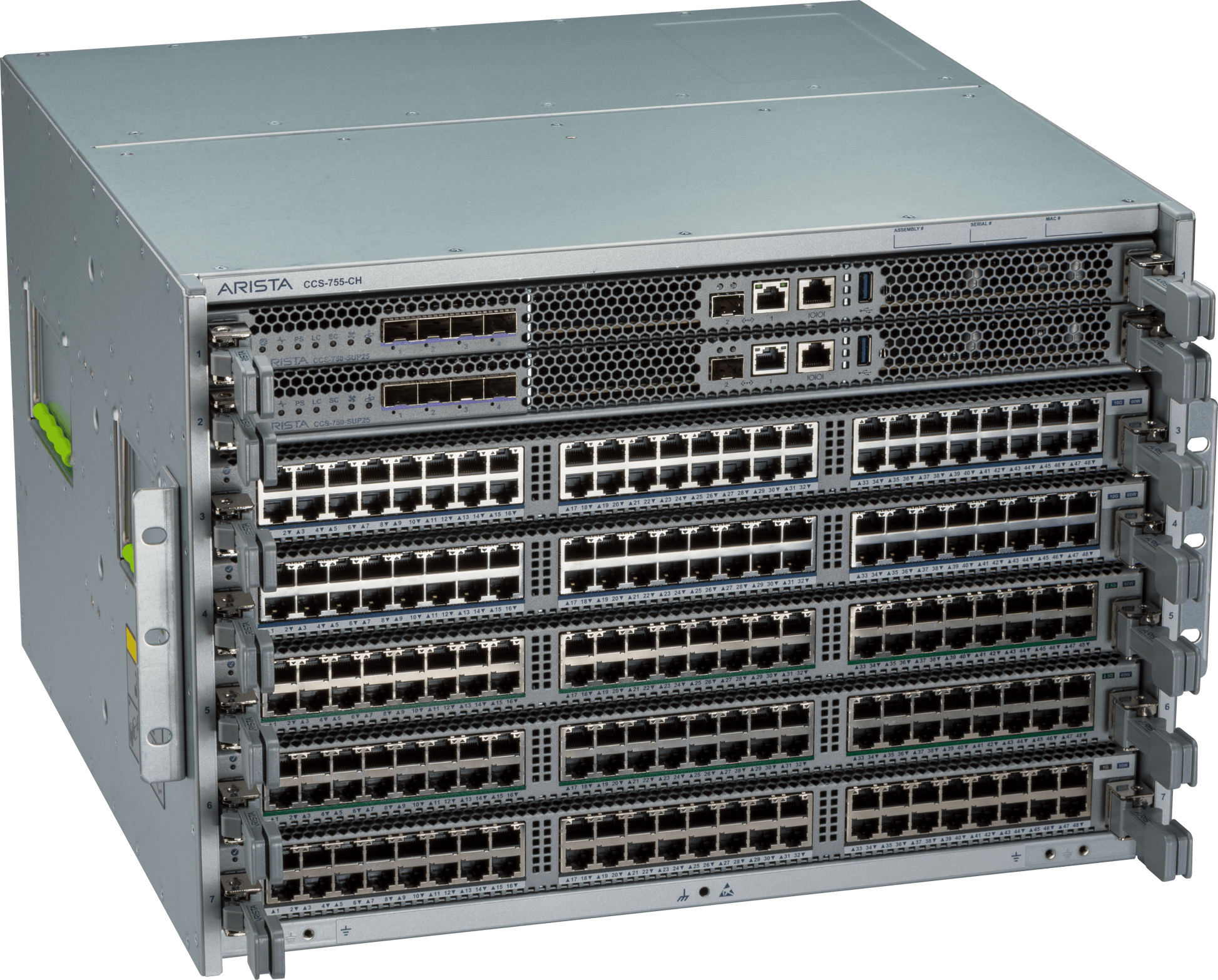

• Arista CCS-758-ch enterprise-grade metallic gray 8-slot modular network switch chassis with multiple black ethernet ports
1 1

Arista

Arista CCS-758-CH | 750X 8-Slot Modular Switch Chassis, 10 RU

CCS-758-CH

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista CCS-758-CH is an 8-slot modular campus switch chassis designed for high-density enterprise and data center deployments. This 10 RU chassis supports up to 8 line cards delivering up to 384 PoE+ ports, plus 2 supervisor slots and 10 power supply bays for full redundancy. Built for demanding campus networks requiring WiFi 6 support, high availability, and scalable Layer 2/Layer 3 architectures with centralized switch card design and hot-swappable components.

Features

Modular 8-slot architecture supporting up to 384 high-speed PoE+ ports
- Centralized switch card design with 1.6 Tbps switching capacity per card
- Dual redundant supervisor modules with quad-core CPU, 16GB RAM, and 120GB SSD
- Active-standby switch card redundancy with hitless failover and SSO
- Hot-swappable line cards, switch cards, supervisors, PSUs, and fan modules
- Supports 10/25G SFP+ and 40/100G QSFP+ supervisor uplinks (model dependent)
- Full 802.3bt PoE++ support up to 90W per port on compatible line cards
- Advanced Layer 3 routing: BGP, OSPF, VXLAN, EVPN, MLAG, multicast
- MACsec encryption for secure communications (EOS 4.28.1F+)
- CloudVision integration for network automation, telemetry, and visibility
- Compact 10 RU form factor with flexible 2-post or 4-post rack mounting
- Redundant N+N AC power architecture with up to 10 PSU slots
- Fully shared buffer architecture eliminating oversubscription
- Front-to-back or back-to-front airflow options
- Runs Arista EOS with optional Enhanced (E) and Flex-route (FLX) licensing

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Form Factor: 10 RU modular chassis (439.4mm H x 441mm W / 17.3 x 17.36 inches)
- Slot Configuration: 8 line card slots, 2 supervisor slots, 10 power supply slots
- Maximum Port Density: Up to 384 ports (8 x 48-port line cards)
- Architecture: Centralized switch card design with redundant switch cards, supervisors, and power supplies
- Switching Capacity: Up to 1.6 Tbps per switch card
- MAC Address Table: 160K MAC addresses, 160K IPv4 hosts
- Supervisor Module: Quad-core CPU, 16GB memory, 120GB SSD for control and management plane
- Power Supply: Supports PWR-3351-AC-RED AC power supplies with N+N redundancy
- Mounting: 2-post or 4-post rack mount (forward/backward orientation), multiple mounting positions
- Hot-Swappable: Line cards, switch cards, supervisors, power supplies, and fan modules
- Management: EOS CLI, web GUI, SNMP, CloudVision
- High Availability: Dual supervisor SSO, active-standby switch card redundancy, hitless failover

FAQs

Q: What line cards are compatible with the CCS-758-CH chassis?
A: The CCS-758-CH supports all Arista 750X series line cards including 1G, 2.5G, 5G, and 10G PoE+ options such as CCS-750X-48TP-LC, CCS-750X-48THP-LC, CCS-750X-48ZP-LC, CCS-750X-48ZXP-LC, and CCS-750X-48SX-LC. Each line card provides 48 ports with PoE support.

Q: How many power supplies are required for the CCS-758-CH?
A: The minimum number of power supplies depends on the configuration. The chassis supports up to 10 PWR-3351-AC-RED power supplies for full N+N redundancy. Arista recommends consulting their power calculator to determine the exact PSU requirements based on your line card and PoE configuration.

Q: Does the CCS-758-CH require separate switch cards and supervisor modules?
A: Yes, the chassis requires separate components: switch cards (CCS-758-X3-SC), supervisor modules (such as CCS-750-SUP25 or CCS-750-SUP100), line cards, fan modules, and power supplies. Bundles are available that include pre-configured components.

Q: What software features does the 750X series support?
A: The 750X series runs Arista EOS with support for advanced Layer 2/3 routing (BGP, OSPF, multicast), MLAG, VXLAN, BGP-EVPN segmentation, 802.3bt PoE++, MACsec security, and CloudVision automation. Feature licensing includes EOS Enhanced (E) and Flex-route (FLX) options.

Q: Can the CCS-758-CH support WiFi 6 access point deployments?
A: Yes, the CCS-758-CH is specifically designed for WiFi 6 deployments with full 90W 802.3bt PoE++ support per port on compatible line cards, providing the power budget needed for the latest high-performance wireless access points and IoT devices.
