Arista CCS-720XP-48TXH-2C-S-2F | 720XP 48-Port mGig 90W PoE Switch, 2x 1050W AC, Front-to-Rear
SKU:CCS-720XP-48TXH-2C-S-2F
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

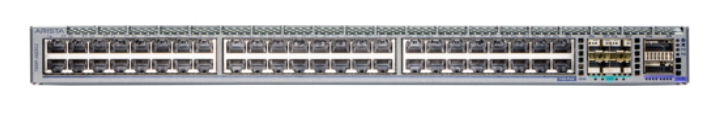

The Arista 720XP-48TXH-2C-S is a fixed-configuration Layer 3 campus access switch from the Cognitive Campus 720XP family. It suits user edge deployments with high-power PoE devices, IoT endpoints and multi-gigabit Wi-Fi access points, and runs Arista EOS with CloudVision management.
There are 48 multi-gigabit RJ45 ports running from 100M to 10G, each delivering up to 90W of 802.3bt PoE. Uplinks are 4 x 1G/10G/25G SFP28 and 2 x 100G QSFP. The switch provides 2240 Gbps of switching bandwidth, 1160 Mpps forwarding, a 16 MB packet buffer, 8 GB of system memory and 16 GB of flash.
This SKU is supplied with 2 x 1050W AC power supplies and front-to-rear airflow, giving a typical PoE budget of 1775 W. It supports PWR-1021-AC, PWR-2021-AC and PWR-521-DC power supplies, and a wide range of 1G, 10G, 25G and 100G optics and cables. The 720XP-48TXH-2C-S sits in EOS licence group G2 and CloudVision licence group G2.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- 802.3af/at/bt PoE delivering up to 90W per RJ45 port
- Arista EOS single-binary network OS with Stateful Fault Containment and Repair, Linux shell access and OpenConfig extensibility
- 4096 VLANs, IPv4/v6 VRFs, VXLAN and EVPN L2/L3 segmentation
- Layer 3 routing with OSPF, BGP, IS-IS, RIPv2, 64-way ECMP, PBR and NAT
- sFlow, IPFIX, FlowTracker and LANZ for traffic and flow monitoring
- N+1 redundant power and cooling, active/active MLAG and hitless upgrades with SSU
- Zero Touch Provisioning and CloudVision management with streaming telemetry
- 802.1X access control and LLDP device identification
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Ports: 48 x 100M-10G mGig RJ45
- PoE: 802.3bt, up to 90W per port
- Uplinks: 4 x 1G/10G/25G SFP/SFP28
- Uplinks: 2 x 100G QSFP
- Switching bandwidth: 2240 Gbps
- Throughput (FDX): 780 (1560) Gbps
- Forwarding rate: 1160 Mpps
- Latency (RJ-45): 1.2 microseconds
- Packet buffer: 16 MB
- CPU: Dual Core x86
- System memory: 8 GB
- System flash: 16 GB
- Management ports: 1 x 100M/1G, 1 x console, 1 x USB
- Airflow: Front-to-rear
- Power supplies: 2 x 1050W AC (PWR-1021-AC)
- Power consumption (excluding PoE): 168 W typical, 199 W maximum
- PoE budget with default power supplies: 1775 W typical, 1744 W minimum
- Fans: 3 x FAN-7000-F, N+1 redundant
- Dimensions (W x H x D): 44.0 x 4.4 x 37.5 cm, 1RU
- Weight: 6 kg
- Operating temperature: 0 to 40 C
- Minimum EOS: 4.30.2
FAQs
Q: Which licence group does this switch fall under?
A: The 720XP-48TXH-2C-S is in EOS licence group G2 (LIC-FIX-G2) and CloudVision licence group G2. Optional licences include LIC-FIX-G2-E, LIC-FIX-G2-FLX-L and LIC-FIX-G2-V2.
Q: How much PoE power is available with the default power supplies?
A: With two 1050W AC power supplies the available PoE budget is 1775 W typical and 1744 W minimum. Each port can deliver up to 90W under 802.3bt.
Q: Which power supplies does it support?
A: It accepts up to two power supplies from PWR-1021-AC (1050W AC), PWR-2021-AC (2000W AC) and PWR-521-DC. Dual 2000W AC supplies raise the PoE budget to 3632 W typical.
Q: What optics can be used in the uplink ports?
A: The SFP28 ports take 1G, 10G and 25G optics and cables, and the QSFP ports take 100G optics and cables such as 100GBASE-SR4, LR4, CWDM4 and CR4, per the Arista transceiver matrix.
Q: What airflow does this SKU use?
A: This SKU uses front-to-rear airflow, with three N+1 redundant FAN-7000-F fans.
