Arista

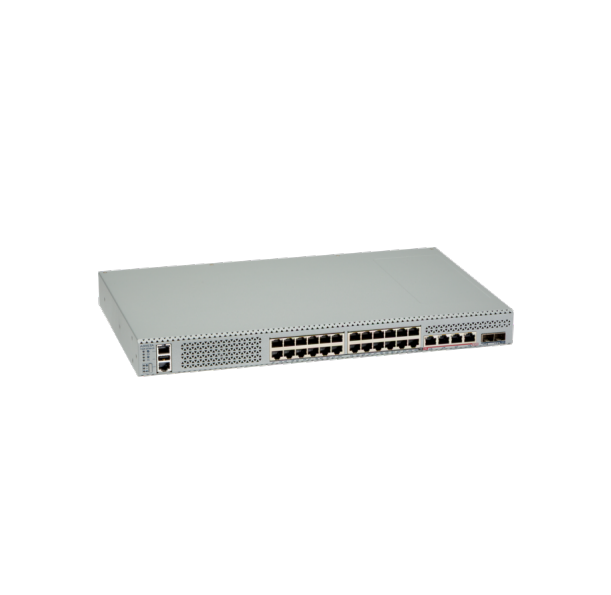

Arista CCS-710XP-28TNH-2S-F | 710XP 24-Port PoE+ Switch, 4x 5G 90W PoE, 460W AC

CCS-710XP-28TNH-2S-F

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Arista 710XP is a fan-equipped campus PoE leaf switch with 24 x 1G 30W PoE ports, 4 x 5G 90W PoE ports and 2 x 10G SFP+ uplinks. It is powered by a fixed internal 460W AC supply with a 360W PoE budget and uses front-to-rear airflow, suiting access-layer deployments that power Wi-Fi access points, IP cameras and multigigabit endpoints. Running Arista EOS with Zero Touch Provisioning and CloudVision management, it provides secure, programmable campus access in a compact one-rack-unit chassis.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Runs Arista EOS, the same operating system used across Arista routing and switching products
- Zero Touch Provisioning with on-premises or cloud management via CloudVision
- Secureboot system with Hardware Root of Trust
- 802.1Q and VXLAN/EVPN segmentation
- Persistent PoE on reboot and priority power assignment
- Real-time telemetry via CloudVision and sFlow
- Full access to the Linux shell and tools, extensible with bash, python, C++ and Go
- Mode button for user reset

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 24 x 10M-1GbE RJ45 PoE ports at 30W
- 4 x 100M-5GbE RJ45 PoE ports at 90W (802.3bt)
- 2 x 1/10G SFP+ uplinks
- Throughput (FDX): 128 Gbps, 95 Mpps, 1.8 microsecond latency (RJ-45)
- CPU: Quad Core ARM, 8 GB system memory, 20 GB flash, 1.5 MB packet buffer
- Fixed internal 460W AC power supply, 360W PoE power budget
- Power input 100-240V, 50/60 Hz, maximum power excluding PoE 70W
- Front-to-rear airflow, fan-equipped
- Dimensions 439.9 x 43.5 x 279 mm, weight 3.89 kg
- Operating temperature 0 to 40°C, operating altitude up to 3,000 m
- Table sizes: 16K MAC addresses, 8K/4K IPv4/v6 hosts, 2K/512 IPv4/v6 routes, 64-way ECMP, 1K/512 ingress/egress ACLs
- 1 x RJ45 Ethernet management port, 1 x USB port, 1 x console port
- Two-post rack mount kit and CBL-00100 console cable included

FAQs

Q: How many PoE devices can this switch power?
A: It provides 24 ports at up to 30W and 4 multigigabit ports at up to 90W (802.3bt), drawing from a 360W PoE budget shared across all ports.

Q: What uplink options does the 710XP provide?
A: It has 2 x 1/10G SFP+ uplink ports for connecting to a distribution or core layer using fibre or direct attach cables.

Q: Does this model have a redundant or removable power supply?
A: No. It has a fixed internal 460W AC power supply and is fan-equipped with front-to-rear airflow.

Q: Which operating system and management options are supported?
A: The switch runs Arista EOS and can be managed on-premises or through CloudVision, with Zero Touch Provisioning for automated deployment.

Q: What is included for rack installation and console access?
A: A two-post rack mount kit and a CBL-00100 console cable are included, and the chassis measures 439.9 x 43.5 x 279 mm.
