• Meraki MS120-48-HW 48-port 1G cloud-managed switch with rack mount
1 1

Meraki

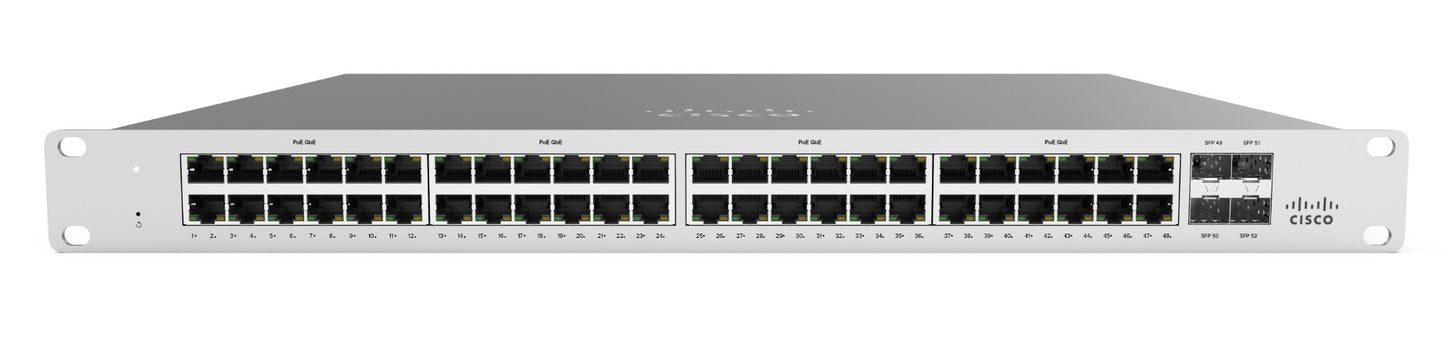

Meraki MS120-48-HW | MS120 48-Port Gigabit Switch, 4x 1G SFP, Non-PoE

MS120-48-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS120-48 is a cloud-managed Layer 2 access switch from the Meraki MS120 series, built for branch and campus deployments that need simple wired access without PoE. It suits PCs, printers and access points powered by separate injectors, all managed centrally through the Meraki dashboard.

It provides 48 x 1GbE RJ45 access ports and 4 x 1GbE SFP uplink ports, with a switching capacity of 104 Gbps. This is a non-PoE model, so it provides no PoE budget. Power comes from a fixed internal supply, drawing 16 W at idle and 36 W at maximum load. It mounts in 1U of rack space and operates from 0 to 45 C.

The switch needs a Meraki MS120-48 Enterprise licence to operate and stay connected to the Meraki dashboard, and the licence term is purchased separately. The 4 x 1GbE SFP uplink ports accept 1G SFP optics, and an internet connection is required for cloud management.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Cisco Meraki dashboard
- Remote packet capture tools via the Meraki dashboard
- Automatic firmware upgrades
- SNMP and Syslog integration
- IPv4/IPv6 Access Control List (ACL) support
- 802.1Q VLAN tagging
- DHCP snooping
- 802.1X authentication
- LED status indicators and front-panel reset button

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Access ports: 48 x 1GbE RJ45
- Uplink ports: 4 x 1GbE SFP
- Dedicated management interface: 1
- PoE/PoE+: No (non-PoE model)
- Switching capacity: 104 Gbps
- Power supply: Fixed internal
- Power load (idle/max): 16 W / 36 W
- Mounting: 1U rack mount
- Dimensions (h x w x d): 4.4 x 44 x 25 cm (1.73 x 17.32 x 10 in)
- Weight: 4.06 kg (8.97 lb)
- Operating temperature: 0 to 45 C (32 to 113 F)
- Humidity: 5% to 95%

FAQs

Q: Does the MS120-48 need a licence to operate?
A: Yes. It requires a Meraki MS120-48 Enterprise licence to operate and stay connected to the Meraki dashboard. The licence term is purchased separately.

Q: Does this switch provide PoE?
A: No. The MS120-48 is a non-PoE model with no PoE budget. Devices such as access points need a separate PoE injector or another PoE source.

Q: What can I use in the SFP uplink ports?
A: The 4 x 1GbE SFP uplink ports accept 1G SFP optics, such as Meraki 1G SFP modules.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: Is this a Layer 2 or Layer 3 switch?
A: It is a Layer 2 cloud-managed access switch, intended for access-layer deployments in branch and campus networks.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
