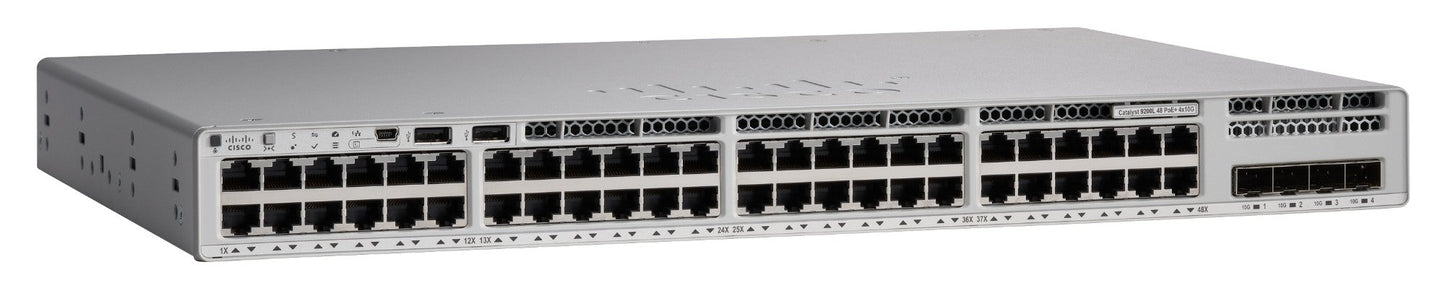

• Meraki C9200L-48P-4G-M silver Catalyst 9500 switch with Ethernet ports
1 1

Meraki

Meraki C9200L-48P-4G-M | Catalyst 9200L-M 48-Port Gigabit PoE+ Switch, 740W, 4x 1G SFP

C9200L-48P-4G-M

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Cisco C9200L-48P-4G-M is a cloud-managed Layer 3 access switch combining the powerful Catalyst 9200L hardware with Meraki dashboard simplicity. Featuring 48 Gigabit Ethernet PoE+ ports with 740W budget, 4x 1G SFP uplinks, and 104 Gbps switching capacity, this switch delivers enterprise-grade performance for branch offices and distributed deployments. Managed entirely through the Meraki cloud platform, it provides zero-touch provisioning, simplified operations, and advanced security features including Adaptive Policy segmentation.

Features

Meraki cloud management with zero-touch provisioning and centralized dashboard control
- Powered by Cisco IOS XE for faster boot times, greater stability, and deeper feature customization
- StackWise-80 technology: Stack up to 5 switches as a single logical unit with 80 Gbps bandwidth
- Layer 3 routing: Static routing, OSPFv2, EIGRP stub, RIP, multicast routing (PIM-SM)
- Adaptive Policy with security group-based segmentation using over-the-wire tags (Advanced license)
- IEEE 802.1X authentication with RADIUS, MAB, hybrid authentication modes
- Port security with sticky MAC and MAC allow-listing
- DHCP snooping, Dynamic ARP Inspection, IPv4/IPv6 ACLs
- MACsec encryption support for secure communications
- 802.1Q VLAN support with up to 4,094 VLANs
- 802.1s Multiple Spanning Tree Protocol (MSTP), interoperable with RSTP, STP, PVST
- 802.3ad Link Aggregation (LACP) with up to 8 ports per aggregate, multi-chassis support on stacks
- IGMP snooping for efficient multicast filtering
- Energy Efficient Ethernet (IEEE 802.3az) for optimized power consumption
- Per-port PoE power sensing and control for intelligent power management
- Dual redundant fixed fans for high availability
- Hot-swappable redundant power supply support
- Blue beacon LEDs (front and back) for easy physical identification
- Virtual stacking for unified management of thousands of ports across multiple switches
- Integrated telemetry and analytics through Meraki dashboard
- Fast stack convergence for improved resiliency

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

48x 10/100/1000 Mbps Gigabit Ethernet PoE+ ports (IEEE 802.3at, up to 30W per port)
- 4x 1G SFP fixed uplinks
- 740W PoE budget with single power supply (expandable to 1440W with optional secondary PWR-C5-1KWAC)
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 Mpps
- MAC address table: 16,000 entries
- Memory: 2GB DRAM, 4GB Flash
- Layer 3 routing: Static routing, OSPFv2, multicast routing (PIM-SM)
- StackWise-80 support: Up to 5 switches with 80 Gbps stacking bandwidth (requires C9200L-STAK-KIT-M sold separately)
- Dual redundant fixed fans
- Hot-swappable dual power supply capability
- Dimensions: 1.73 x 17.5 x 12.9 inches (4.4 x 44.5 x 32.9 cm), 1U rack mount
- Weight: 10.58 lb (4.80 kg)
- Operating temperature: -5°C to 45°C (up to 5,000 ft)
- Power supply: PWR-C5-1KWAC (included)
- Management: Meraki cloud dashboard, IOS XE powered
- Certifications: FCC Part 15 Class A, EN 55032 Class A, UL/IEC 60950-1/62368-1, Energy Star certified

FAQs

Q: What licensing is required for the C9200L-48P-4G-M?
A: This switch requires a Meraki Catalyst 9200L-M license (Enterprise or Advanced tier) purchased separately on a per-device, per-year basis. Licenses are available in 1, 3, or 5 year terms. The Advanced license tier is required for features like Adaptive Policy.

Q: Can I expand the PoE budget beyond 740W?
A: Yes, by installing an optional secondary PWR-C5-1KWAC power supply, the total PoE budget increases to 1440W, providing full 30W PoE+ capability across all 48 ports simultaneously while maintaining redundancy.

Q: Does this switch include stacking capability out of the box?
A: No, the C9200L series does not include stacking ports by default. You must purchase a C9200L-STAK-KIT-M for each switch you plan to stack. The kit includes two stacking adapters and a 50cm stacking cable. Stacking supports up to 5 switches with 80 Gbps bandwidth.

Q: Can the C9200L-48P-4G-M be converted from cloud to on-premises management?
A: Yes, the switch can be migrated from Meraki cloud management to on-premises management with Cisco Catalyst Center or CLI at any point during its lifecycle, providing operational flexibility and investment protection.

Q: Is this switch compatible with standard Cisco C9200L models?
A: The -M suffix indicates Meraki cloud management. While the hardware is compatible with standard C9200L models, mixed stacking between cloud-managed (C9200L-M) and on-prem managed (C9200L) switches requires all devices to run the same management mode. You cannot mix C9200L with modular C9200 switches in a stack.
