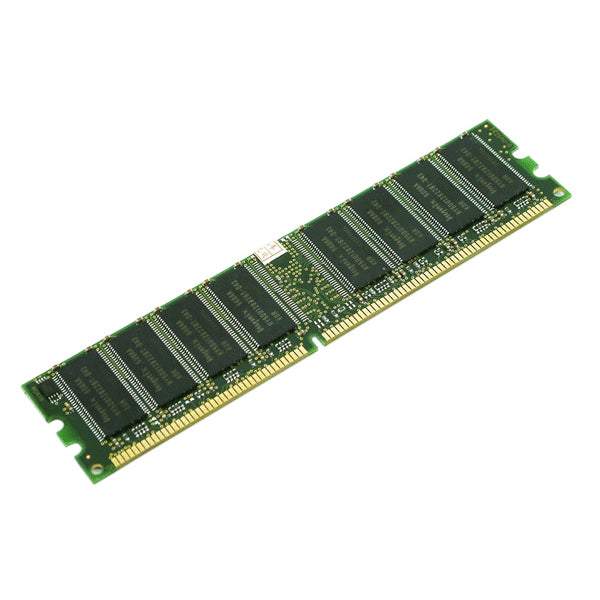

• Cisco UCS-MR-X32G2RW 32GB DDR4 RDIMM green and black memory stick
1 1

Cisco

Cisco UCS-MR-X32G2RW | UCS 32GB DDR4-3200 RDIMM, 2Rx4, 8Gb DRAM, 1.2V

UCS-MR-X32G2RW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

This 32GB DDR4-3200 registered ECC DIMM is a Cisco UCS memory module for server memory upgrades and expansion. It is a Cisco-qualified option for UCS C-Series rack servers and B-Series blade servers, and the HyperFlex equivalent is sold under the HX-MR-X32G2RW part number. It suits virtualisation, database and general data-centre workloads on M5 and M6 generation systems.

The module runs at 3200 MT/s (PC4-25600) in a 288-pin RDIMM form factor. It is dual rank x4 (2Rx4, listed by Cisco as DRx4) and built from 8Gb DRAM devices, operating at 1.2V. Registered ECC design provides server-class reliability. The 32GB capacity can be mixed with 16GB and 64GB RDIMMs in a balanced configuration as described in the Cisco M5 memory guide.

It is listed as a memory option in the Cisco UCS C240 M6 spec sheet and the C220, C240 and B200 M5 memory guide, and is also listed for the UCS C3260 and C125 M5 as well as C220, C225, C240 and C245 M6 servers. Power is drawn from the server DIMM slot, so no separate power supply is needed.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Registered DIMM with ECC for server-class reliability
- DDR4-3200 speed for UCS M5 (Cascade Lake) and M6 (Ice Lake) generation servers
- Cisco-qualified memory for UCS C-Series and B-Series servers
- HyperFlex equivalent available as HX-MR-X32G2RW
- Can be mixed with 16GB and 64GB RDIMMs in a balanced configuration, per the Cisco M5 memory guide

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Capacity: 32GB
- Technology: DDR4 SDRAM
- Speed: 3200 MT/s (PC4-25600)
- Form factor: RDIMM, registered ECC, 288-pin
- Rank and organisation: Dual rank x4 (2Rx4, listed by Cisco as DRx4)
- DRAM density: 8Gb
- Voltage: 1.2V
- Ranks per DIMM: 2
- 3200 MHz operation: Supported
- Cisco description: 32GB RDIMM DRx4 3200 (8Gb)
- UPC: 889728247818

FAQs

Q: Which Cisco servers is this memory listed for?
A: It is listed as a memory option in the Cisco UCS C240 M6 spec sheet and in the C220, C240 and B200 M5 memory guide. The UCS C3260 and C125 M5 as well as C220, C225, C240 and C245 M6 servers also list it.

Q: Does it need a separate power supply?
A: No. It is a 1.2V DDR4 RDIMM powered directly from the server DIMM slot.

Q: Can I mix it with other DIMM capacities?
A: The Cisco M5 memory guide allows it to be mixed with 16GB and 64GB RDIMMs in a balanced configuration.

Q: Is there a HyperFlex equivalent part number?
A: Yes. The HyperFlex equivalent is HX-MR-X32G2RW, which has the same 32GB DDR4-3200 2Rx4 specification.

Q: What DRAM and rank configuration does this module use?
A: It is dual rank x4 (2Rx4, listed by Cisco as DRx4) and is built from 8Gb DRAM devices.
