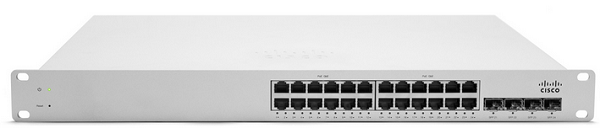

• Meraki MS220-24-HW silver switch with black ports and buttons
1 1

Meraki

Meraki MS220-24-HW | L2 24x 1G, 4x 1G SFP uplinks, non-PoE, Enterprise cloud-managed license

MS220-24-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

Cloud-managed Layer 2 access switch with 24x 1G access ports and 4x 1G SFP uplinks to aggregate edge devices with reliable fiber connectivity. Delivers enterprise L2, QoS, and security features via an intuitive cloud dashboard for streamlined operations.

Features

- 24x 1G access ports for high-density edge connectivity
- 4x 1G SFP uplinks for fiber aggregation
- Enterprise-grade L2, QoS, and security capabilities
- Cloud-managed with virtual stacking and zero-touch provisioning
- Advanced access security with 802.1X, MAB, and DHCP protection
- Traffic optimization via IGMP snooping and QoS
- Remote troubleshooting with built-in packet capture
- Efficient 1U rack-mount design

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Ports: 24x 10/100/1000BASE-T (RJ45)
- Uplinks: 4x 1G SFP (fiber) uplink ports
- PoE: None (non-PoE)
- Layer 2: 802.1Q VLANs (up to 4K), RSTP/MSTP, storm control, port isolation
- Aggregation: LACP (802.3ad) link aggregation
- QoS: 802.1p and DSCP trust, per-port rate limiting
- Multicast: IGMP snooping
- Security: 802.1X and MAB, DHCP snooping, dynamic ARP inspection, port security, ACLs
- Management: Cloud-managed dashboard, virtual stacking (configuration at scale), remote packet capture, zero-touch provisioning
- Performance: Switching capacity up to ~52 Gbps; forwarding up to ~77 Mpps
- MAC table: 16K entries (typical)
- Jumbo frames: Supported
- Hardware: Rack-mount 1U; variable-speed fans; internal AC power
- Operating temperature: 0–45°C (typical)

FAQs

Q: Is PoE supported on this model?
A: No. This variant is non-PoE. Choose the -24P model for PoE+.

Q: Do the SFP ports support 10G?
A: No. They are 1G SFP ports only.

Q: Is a cloud license required?
A: Yes. An active Enterprise cloud-managed license is required for operation and support.

Q: Does it support Layer 3 routing?
A: No. It is a Layer 2 access switch.

Q: Can I stack these switches?
A: Physical stacking is not supported; virtual stacking is available for centralized configuration.

Q: Are SFP transceivers included?
A: No. SFP modules are sold separately.
