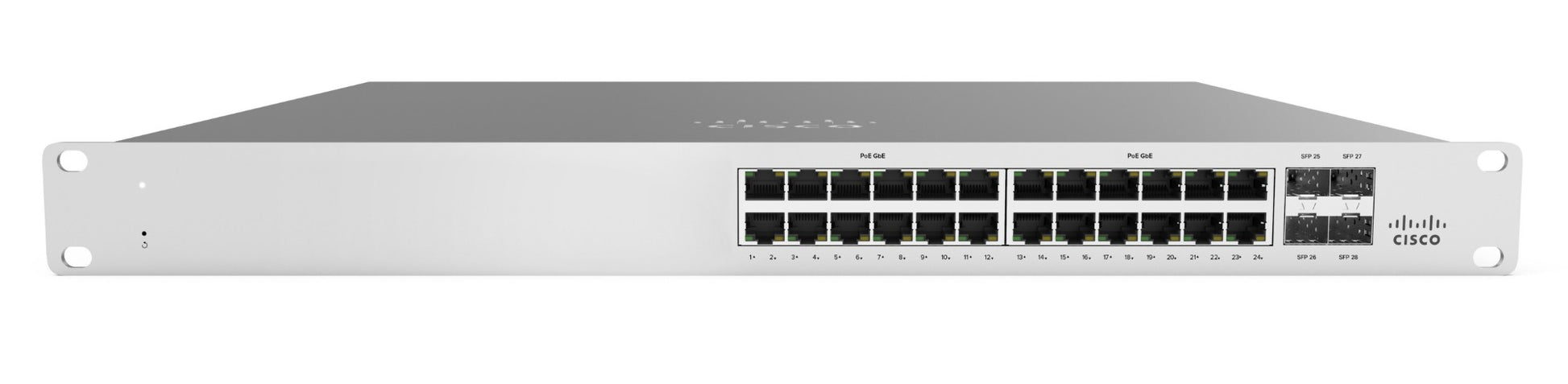

• Meraki MS125-24P-HW 24-port 1G PoE+ cloud-managed switch
1 1

Meraki

Meraki MS125-24P-HW | MS125 24-Port PoE+ Switch, 370W, 4x 10G SFP+

MS125-24P-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS125-24P is a cloud-managed Layer 2 access switch from the Meraki MS125 series. It is aimed at small branch and office deployments, and at converged voice, video and data environments that need PoE power for phones, access points and cameras. The switch is configured and monitored from the Meraki dashboard.

It provides 24 x 10/100/1000BASE-T RJ45 ports with PoE/PoE+, a 370W PoE budget with up to 30W per port, and 4 x 10G SFP+ uplinks. Switching capacity is 128 Gbps with a forwarding rate of 95.23 Mpps. A dedicated RJ45 management port is included. The -HW SKU is hardware only: a Meraki MS125-24 Enterprise licence (1, 3, 5, 7 or 10 years) is sold separately and is required for cloud management.

The SFP+ uplinks accept Meraki-supported SFP+ optics such as the MA-SFP-10GB series, and the switch supports Virtual Stacking for configuration changes across switches without physical stacking. It uses a fixed internal AC power supply and mounts in 1RU of rack space.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki dashboard with zero-touch provisioning and automatic firmware and configuration updates
- Virtual Stacking for switch port configuration changes without physical stacking
- PoE/PoE+ for powering access points, phones and cameras
- QoS and voice VLAN support for converged voice, video and data
- CDP/LLDP neighbour discovery
- Port mirroring and IGMP snooping
- LACP link aggregation
- 802.1X, MAB and hybrid authentication with RADIUS server monitoring
- Integrated Layer 7 application and user fingerprinting

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Model: MS125-24P-HW
- Downlink ports: 24 x 10/100/1000BASE-T RJ45 with auto-negotiation and auto-MDIX, PoE/PoE+
- Uplink ports: 4 x 10G SFP+
- Management port: 1 x RJ45
- Switching capacity: 128 Gbps
- Forwarding rate: 95.23 Mpps
- MAC forwarding entries: 16K
- VLANs supported: 4094
- Jumbo frame support: 9578 bytes
- Available PoE/PoE+ power: 370W
- Per-port PoE: up to 30W
- Power supply: Fixed internal
- Power input: 100-240V AC, 50-60Hz
- Power load (idle / full load): 25 / 426.1W
- Fans: Built-in
- Dimensions (H x W x D): 4.40 x 44 x 25 cm (1.73 x 17.32 x 9.84 in)
- Weight: 4.20 kg (9.26 lb)
- Operating temperature: 0 to 45 C (32 to 113 F)
- Humidity: 5 to 95% RH
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- Form factor: 1RU rack-mountable

FAQs

Q: Does the MS125-24P-HW include a licence?
A: No. The -HW SKU is hardware only. A Meraki MS125-24 Enterprise licence (1, 3, 5, 7 or 10 years) is sold separately and is required for the switch to be cloud-managed.

Q: How much PoE power does it provide?
A: The switch has a 370W PoE/PoE+ budget shared across its 24 Gigabit ports, with up to 30W available per port.

Q: What optics work in the SFP+ uplink ports?
A: The 4 x 10G SFP+ uplinks accept Meraki-supported SFP+ optics, for example the MA-SFP-10GB series.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.

Q: What power supply does it use?
A: It has a fixed internal AC power supply that accepts 100-240V at 50-60Hz. Idle draw is about 25W and maximum draw is about 426W.
