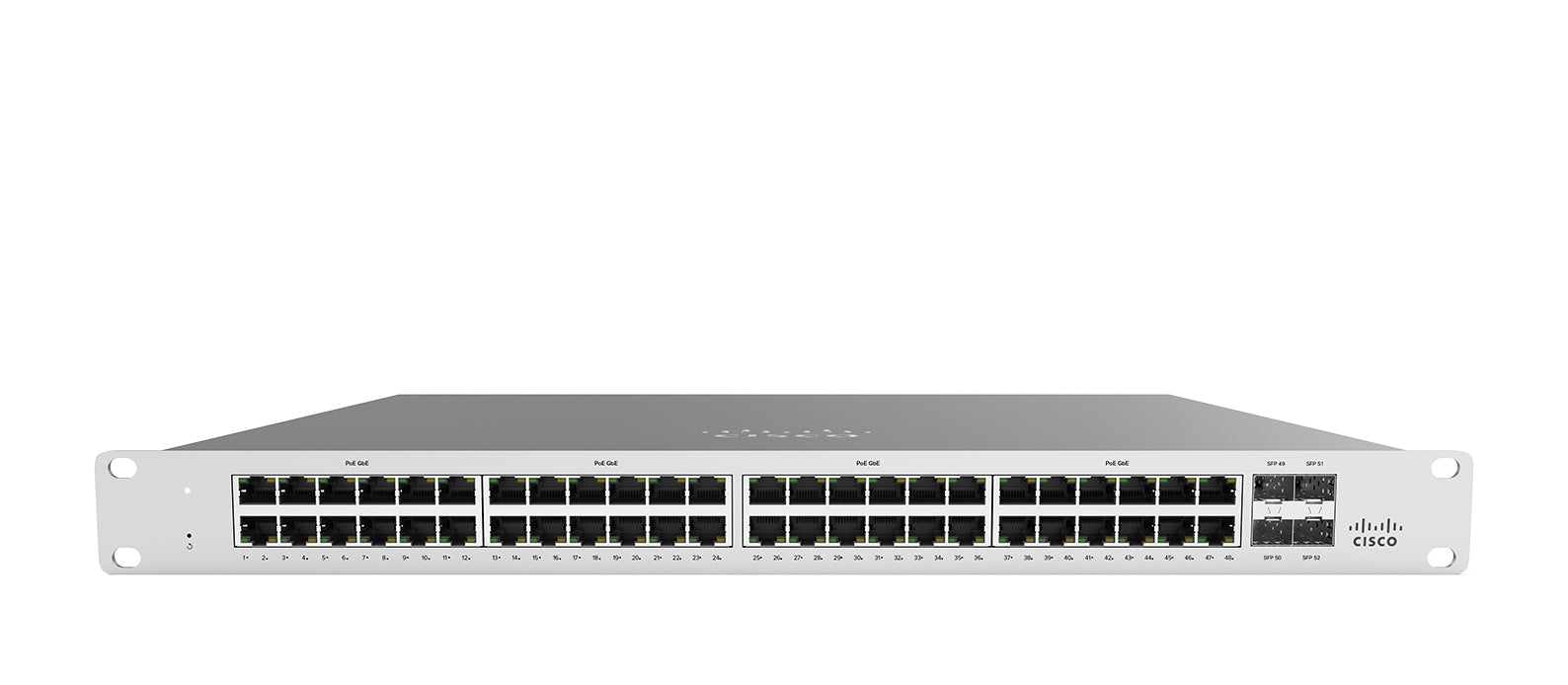

• Meraki MS120-48LP-HW silver Cisco switch with PoE+ ports
1 1

Meraki

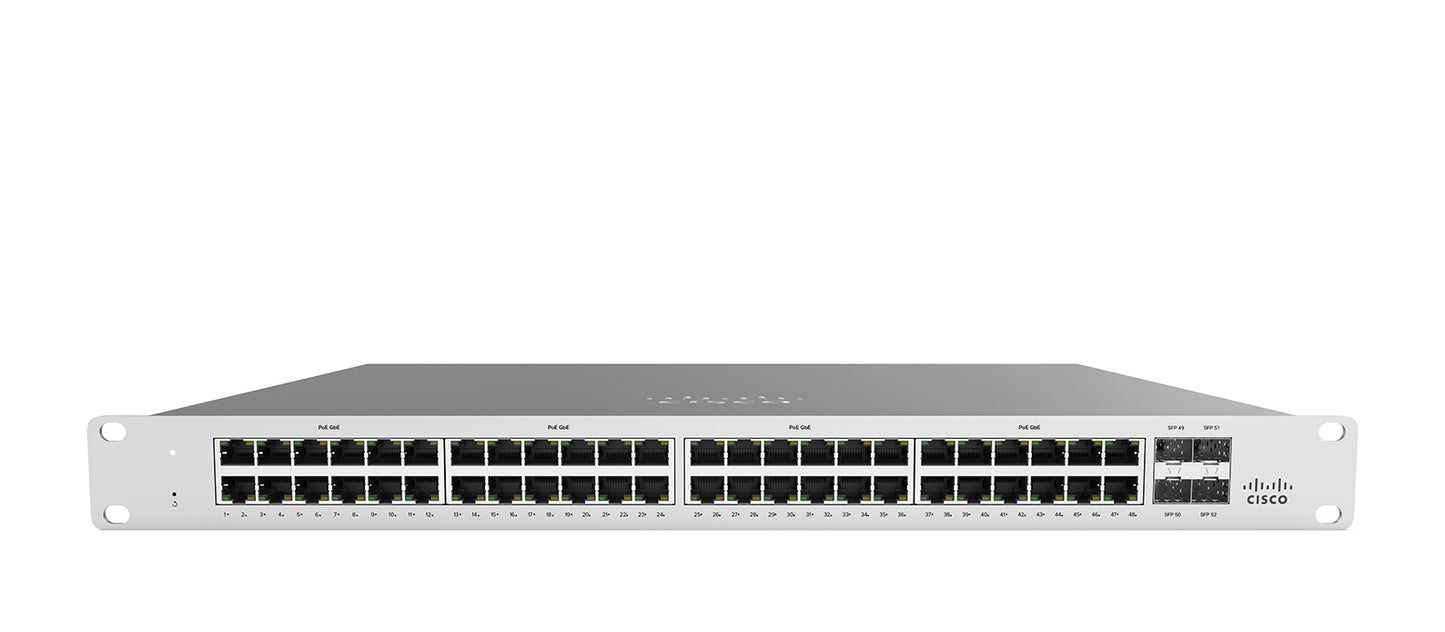

Meraki MS120-48LP-HW | MS120 48-Port Gigabit PoE+ Switch, 370W, 4x 1G SFP

MS120-48LP-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MS120 48-port switch is a Layer 2 cloud-managed access switch built for small branch and campus deployments. It is managed through the Meraki Dashboard and suits sites that need Gigabit access switching with PoE+ for wireless access points, IP phones and cameras.

This LP model provides 48 x 10/100/1000BASE-T RJ45 ports with a 370 W PoE budget, supporting 802.3af at up to 15.4 W per port and 802.3at at up to 30 W per port, with dynamic power allocation. Four 1G SFP uplink ports handle the upstream connection, and a dedicated RJ45 management port is fitted. Switching capacity is 104 Gbps with a forwarding rate of 77.38 mpps. Power comes from a fixed internal AC supply, and the fanless design keeps the unit quiet in the 1U chassis.

The -HW part number is the hardware-only SKU. It requires a Meraki per-device Enterprise cloud licence to operate in Dashboard, purchased separately (LIC-MS120-48LP-xYR). Stacking is virtual and configured through Dashboard, with no physical stacking ports.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Meraki cloud management with zero-touch provisioning
- Virtual stacking supports thousands of switch ports in one logical stack
- Dynamic PoE power allocation for access points, phones and cameras
- PoE available on all 48 ports
- 802.1X RADIUS, MAC-based authentication, port security, DHCP snooping, BPDU guard and IPv4 ACLs
- Remote packet capture, cable testing and link failure detection
- LLDP/CDP, IGMP snooping, port mirroring and RSTP
- Role-based access control and multi-factor authentication for Dashboard

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Interfaces: 48 x 10/100/1000BASE-T RJ45 with auto negotiation and auto-MDIX
- Uplinks: 4 x 1G SFP
- Management port: 1 x RJ45
- PoE budget: 370 W (802.3af/802.3at)
- PoE per port: 15.4 W (802.3af), 30 W (802.3at)
- Switching capacity: 104 Gbps
- Forwarding rate: 77.38 mpps
- Power supply: Fixed internal AC
- Power input: 100-240 VAC, 47-63 Hz
- Jumbo frame: 9578 bytes
- VLANs: 802.1Q, up to 4,094
- MAC address table: 32K entries
- Link aggregation: 802.3ad, up to 8 ports per aggregate
- QoS: 802.1p, 8 queues (6 configurable for DSCP-to-CoS mapping)
- Stacking: Virtual stacking only
- Routing: DHCP relay
- Dimensions (H x W x D): 4.4 x 44 x 34 cm (1.73 x 17.32 x 13.39 in)
- Weight: 5.70 kg (12.70 lb)
- Mounting: 1U rack-mountable, 2-post front mounting, or desktop
- Cooling: Fanless
- Humidity: 5 to 95% non-condensing

FAQs

Q: Does this switch need a licence?
A: Yes. It requires a Meraki per-device Enterprise cloud licence to operate in Dashboard. The -HW SKU is the hardware only and the licence is purchased separately (LIC-MS120-48LP-xYR).

Q: How much PoE power does it provide?
A: The switch has a 370 W PoE budget shared across its ports, delivering up to 15.4 W per port on 802.3af and 30 W per port on 802.3at. Power is allocated dynamically to connected devices.

Q: Can it be stacked?
A: It supports virtual stacking only, managed through Meraki Dashboard. There are no physical stacking ports.

Q: What can connect to the SFP uplink ports?
A: The four SFP uplink ports are 1G, so they take Meraki-compatible 1G SFP modules.

Q: How does the LP model differ from other MS120-48 variants?
A: The LP model offers a 370 W PoE budget from a fixed internal power supply, with 4 x 1G SFP uplinks. Higher-budget variants provide more PoE power.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
