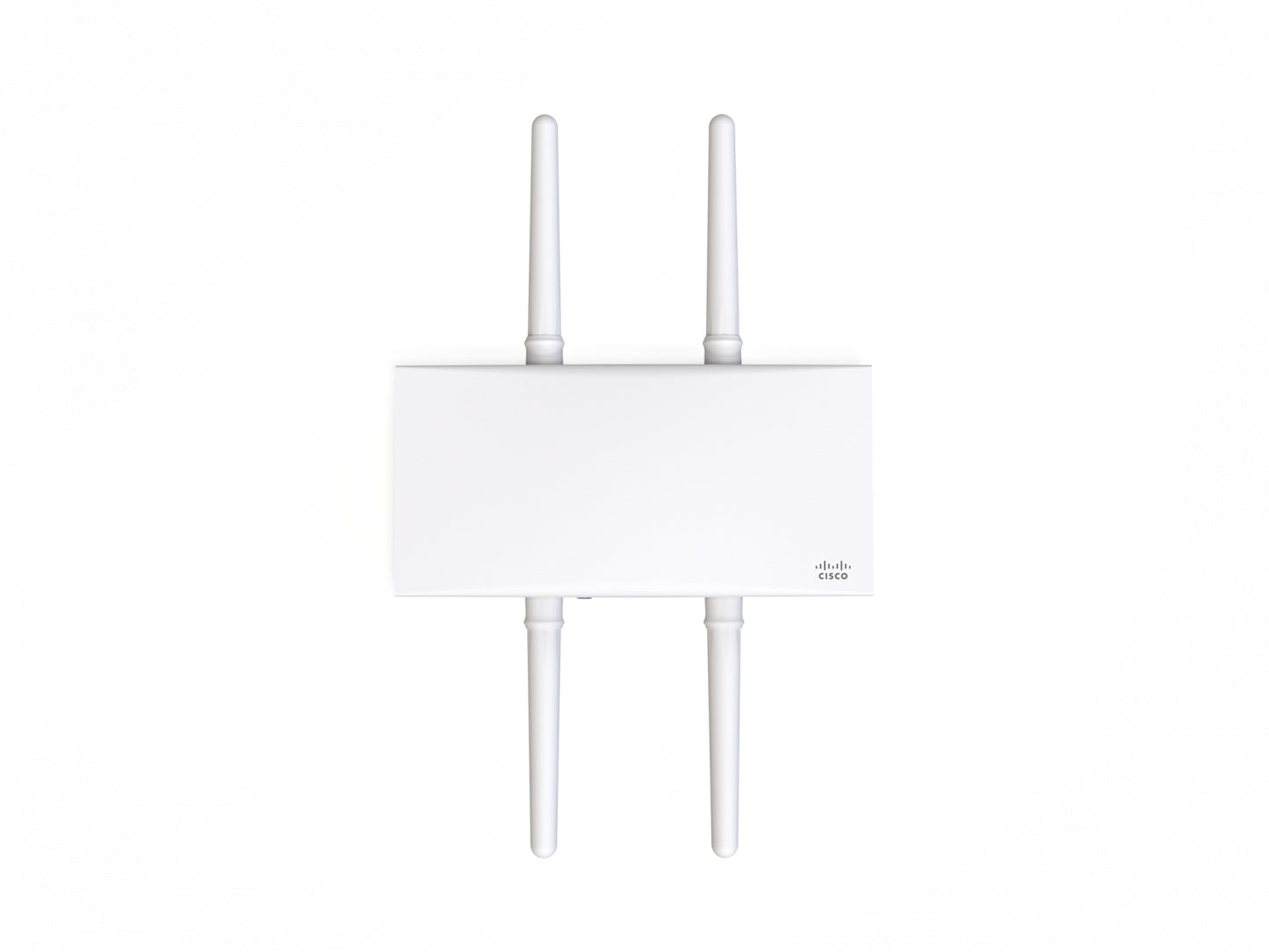

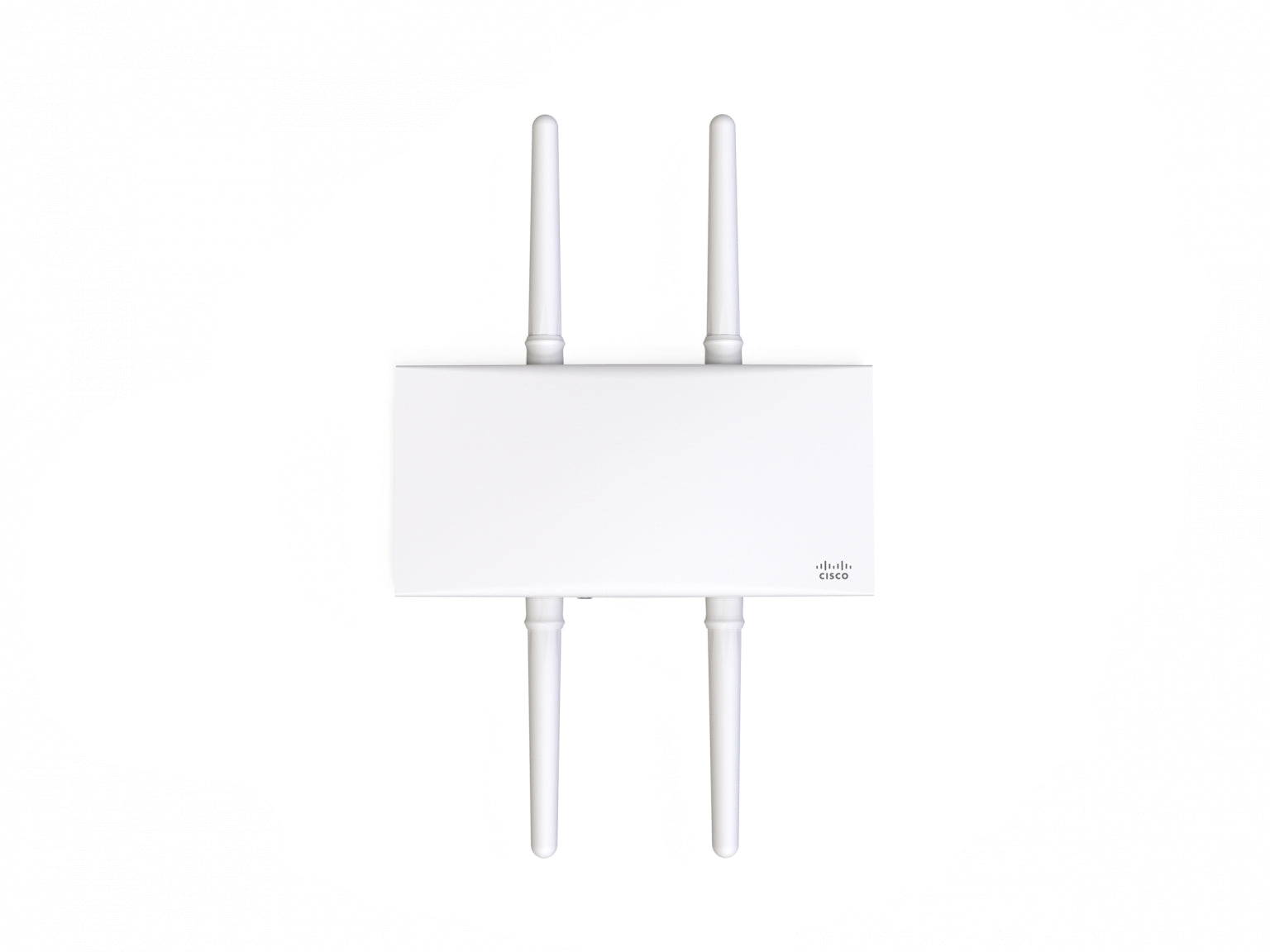

• White Meraki MR86-HW outdoor Wi-Fi 6 router with antennas
1 1

Meraki

Meraki MR86-HW | Meraki MR86 Wi-Fi 6 Outdoor Access Point, 3.55Gbps, 2.5G

MR86-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MR86 is a rugged outdoor Wi-Fi 6 access point engineered for high-density deployments in challenging environments. With IP67-rated weatherproofing and 4x4:4 MU-MIMO radios delivering up to 3.55 Gbps aggregate throughput, it provides enterprise-grade performance for stadiums, campuses, warehouses, and industrial sites. Cloud-managed through the Meraki Dashboard with integrated security scanning, Bluetooth, and multigigabit uplink support.

Features

Wi-Fi 6 (802.11ax) with OFDMA and MU-MIMO for efficient multi-client transmission
- 4x4:4 dual-concurrent radios with up to 3.55 Gbps aggregate frame rate
- IP67-rated ruggedized outdoor enclosure for extreme weather and industrial environments
- Dedicated third radio for real-time WIDS/WIPS, rogue AP containment, and automated RF optimization
- Integrated Bluetooth Low Energy radio for beaconing and IoT device scanning
- Multigigabit Ethernet uplink (2.5 Gbps) for future-proof bandwidth
- Cloud-based centralized management via Meraki Dashboard with zero-touch provisioning
- Automatic firmware updates and RF optimization delivered via the cloud
- Advanced security with AES hardware encryption, 802.1X, WPA2/WPA3, and Active Directory integration
- Application-aware traffic shaping and per-device/per-user bandwidth controls
- Guest access with one-click isolation and customizable splash pages
- Network-wide visibility, real-time alerts, and remote troubleshooting tools
- Enhanced mesh support for wireless bridging between access points
- PCI compliance reporting for secure retail and payment environments
- External antenna support for customizable coverage patterns

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wi-Fi Standard: 802.11ax (Wi-Fi 6), dual-band 2.4 GHz and 5 GHz
- Radio Configuration: 4x4:4 MU-MIMO with 4 spatial streams per radio
- Aggregate Throughput: Up to 3.55 Gbps dual-radio frame rate (2.4 GHz: 574 Mbps, 5 GHz: 2402 Mbps)
- Uplink: 1x multigigabit Ethernet port (100/1000/2500BASE-T RJ45)
- Power: 802.3at PoE+ (30W max, 42.5-57V)
- Additional Radios: Dedicated dual-band WIDS/WIPS scanning radio (third radio), integrated Bluetooth Low Energy radio (fourth radio)
- Channel Width: 20/40 MHz (802.11n), 20/40/80 MHz (802.11ac/ax)
- Environmental Rating: IP67-rated for dust, moisture, shock, and vibration resistance
- Dimensions: 11.81 x 6.02 x 2.16 inches (30.0 x 15.3 x 5.5 cm), excluding cable gland, mounts, and antennas
- Management: Cloud-managed via Meraki Dashboard (requires Meraki license)
- Antennas: External, sold separately (supports omnidirectional and directional options)

FAQs

Q: Does the MR86-HW include antennas?
A: No, antennas are sold separately. The MR86 supports external antennas with various radiation patterns including omnidirectional for open coverage and directional for focused deployments.

Q: Is a Meraki license required to operate the MR86?
A: Yes, all Cisco Meraki access points require an active cloud management license to function. Licenses are available in 1, 3, 5, 7, and 10-year terms and provide cloud management, automatic firmware updates, and enterprise support.

Q: What makes the MR86 suitable for outdoor deployments?
A: The MR86 is IP67-rated and tested for dust, moisture, shock, vibration, and extreme temperatures. Its rugged design is ideal for outdoor campuses, stadiums, industrial sites, warehouses, and other harsh environments.

Q: What is the purpose of the third and fourth radios?
A: The dedicated third radio provides 24/7 wireless intrusion detection/prevention (WIDS/WIPS) and real-time RF spectrum analysis without impacting client throughput. The fourth radio is a Bluetooth Low Energy beacon for location-based services and IoT device visibility.

Q: Can the MR86 support high-density environments?
A: Yes, with Wi-Fi 6 features like MU-MIMO, OFDMA, beamforming, and up to 3.55 Gbps aggregate throughput, the MR86 is designed for high-density deployments with multiple concurrent clients demanding bandwidth-intensive applications.
