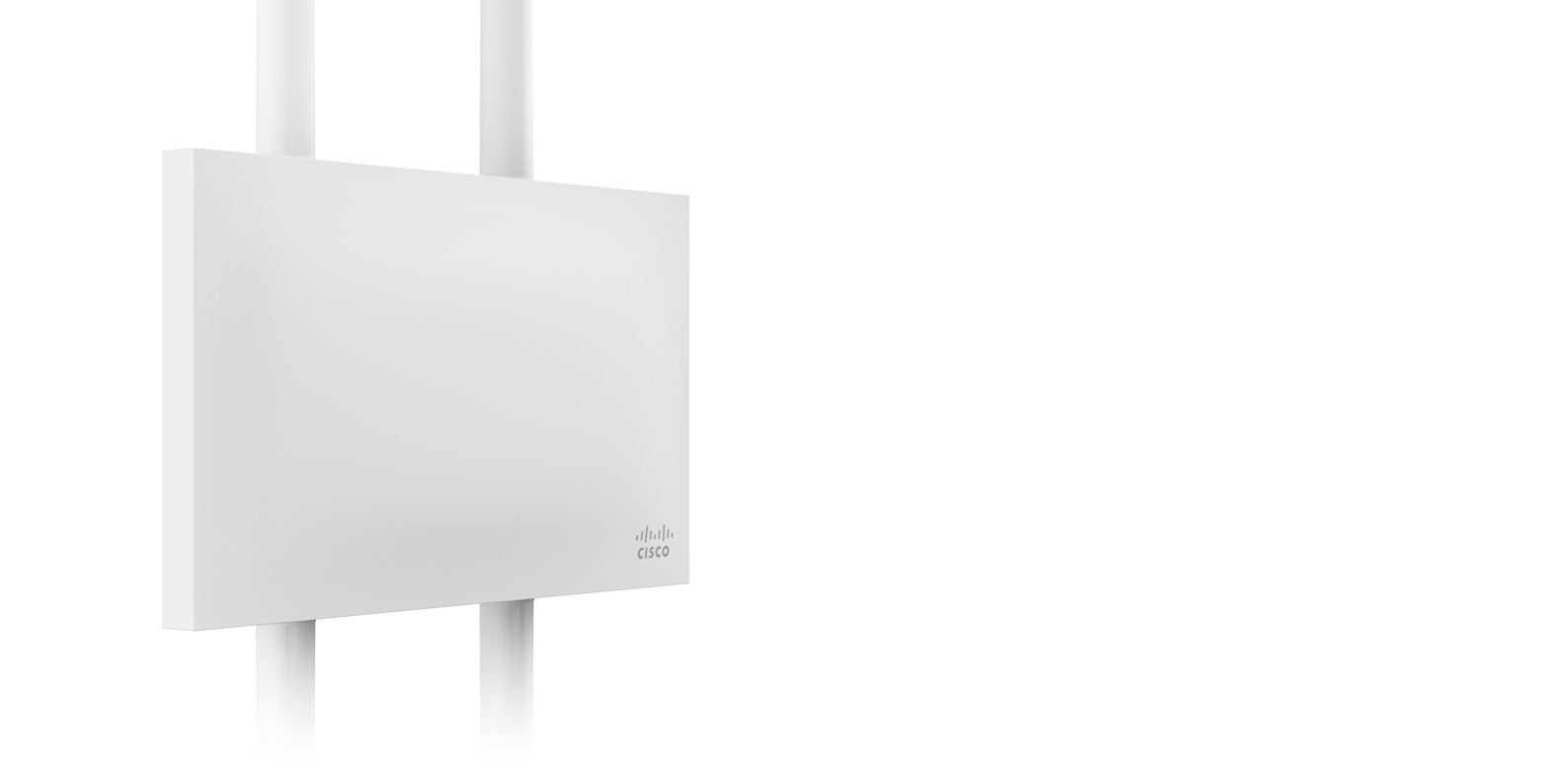

• White Cisco Meraki MR74-HW outdoor Wi-Fi 5 access point with dual antennas
1 1

Meraki

Meraki MR74-HW | Meraki MR74 Wi-Fi 5 Outdoor Access Point, IP67 Rated

MR74-HW

POA
POA
POA
Sale Sold out
Taxes included. Shipping calculated at checkout.

Description

The Meraki MR74-HW is a rugged outdoor Wi-Fi 5 access point designed for harsh outdoor and industrial environments. Featuring four radios including dual-band 2x2 MIMO 802.11ac Wave 2 with 1.3 Gbps aggregate throughput, a dedicated WIDS/WIPS radio for real-time security monitoring, and integrated Bluetooth Low Energy for location services. IP67-rated with extended temperature range and 100% cloud-managed through the Meraki Dashboard for simplified deployment and ongoing management.

Features

Four-radio architecture: 2.4 GHz client radio, 5 GHz client radio, dedicated WIDS/WIPS scanning radio, and BLE radio
- 2x2:2 MIMO 802.11ac Wave 2 with MU-MIMO support for simultaneous multi-client transmission
- 1.3 Gbps aggregate dual-band data rate with concurrent 2.4 GHz and 5 GHz operation
- Dedicated dual-band third radio for real-time WIDS/WIPS, automated RF optimization, and spectrum analysis
- Integrated Bluetooth Low Energy (BLE) radio for location analytics, asset tracking, and beacon functionality
- IP67-rated ruggedized enclosure designed for outdoor and industrial environments
- Extended operating temperature range: -40°C to 55°C (-40°F to 131°F)
- 100% cloud-managed via intuitive Meraki Dashboard with zero-touch provisioning
- Application-aware Layer 7 traffic shaping and QoS per SSID, user group, or individual user
- Integrated stateful Layer 3-7 firewall with identity-based group policies
- Advanced security: WPA2-Enterprise with 802.1X, AES hardware encryption, Active Directory integration
- Air Marshal automatic rogue AP detection and containment
- Fast roaming support with 802.11k (neighbor reports), 802.11r (fast transition), and 802.11v (BSS transition)
- Band steering to optimize client distribution between 2.4 GHz and 5 GHz bands
- Transmit beamforming and enhanced receive sensitivity for extended range and client density
- Automatic firmware updates and security patches delivered seamlessly from the cloud
- VLAN tagging (802.1Q) and WMM QoS support
- One-click guest isolation and customizable captive portal with Facebook Wi-Fi integration
- Gigabit Ethernet port with 802.3af PoE support
- Comprehensive network analytics, reporting, and real-time alerts

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

Wireless Standard: 802.11ac Wave 2 (Wi-Fi 5), backward compatible with 802.11a/b/g/n
- Radio Configuration: Four radios - 2.4 GHz 802.11b/g/n, 5 GHz 802.11a/n/ac, dedicated dual-band WIDS/WIPS and spectrum analysis, Bluetooth Low Energy
- MIMO: 2x2:2 MIMO with two spatial streams
- Data Rate: 1.3 Gbps aggregate dual-band (867 Mbps @ 5 GHz, 400 Mbps @ 2.4 GHz)
- Channel Width: 20/40 MHz (2.4 GHz), 20/40/80 MHz (5 GHz)
- Advanced Features: MU-MIMO, transmit beamforming, band steering, 802.11k/r/v fast roaming
- Interfaces: 1x 100/1000 Mbps Gigabit Ethernet auto-crossover port, 4x N-type female antenna connectors
- Power: 802.3af PoE (24-57V), 13.87W maximum consumption
- Environmental Rating: IP67 (dust-tight and water immersion protected)
- Operating Temperature: -40°C to 55°C (-40°F to 131°F)
- Dimensions: 256 x 158 x 83 mm (10.1 x 6.22 x 3.3 inches)
- Weight: 1.4 kg (3.1 lbs)
- Management: 100% cloud-managed via Meraki Dashboard
- Security: WPA2-Enterprise with 802.1X, AES hardware encryption, real-time WIDS/WIPS via dedicated radio, integrated stateful Layer 3-7 firewall
- Mounting: Wall and pole mount hardware included (antennas sold separately)
- Certifications: Tested for salt spray, vibration, shock, extreme thermal conditions, and dust

FAQs

Q: Does the MR74-HW include antennas?
A: No, the MR74-HW does not include antennas. It features four external N-type female connectors that support Meraki outdoor antennas such as the MA-ANT-20 (omni), MA-ANT-25 (patch), or MA-ANT-27 (sector) antennas, which must be ordered separately based on your deployment needs.

Q: What license is required to operate the MR74-HW?
A: The MR74-HW requires a Meraki Enterprise license subscription to operate. The license enables cloud management via the Meraki Dashboard and includes features such as advanced security, application visibility and control, network analytics, and enterprise support. Licenses are available in 1, 3, 5, 7, and 10-year terms.

Q: What makes the MR74 suitable for outdoor and industrial deployments?
A: The MR74 features IP67 environmental rating making it fully sealed against dust and water immersion, extended operating temperature range from -40°C to 55°C, and ruggedized construction tested for salt spray, vibration, shock, and extreme conditions. This makes it ideal for outdoor campus areas, stadiums, warehouses, and harsh industrial environments.

Q: How does the dedicated third radio benefit wireless network performance?
A: The MR74's dedicated dual-band scanning radio provides 24x7 real-time wireless intrusion detection and prevention (WIDS/WIPS), RF spectrum analysis, and automated channel and power optimization without impacting client data throughput. This ensures maximum security and performance as the scanning occurs independently from client-serving radios.

Q: Can the MR74 be deployed without on-site IT staff?
A: Yes, the MR74 is 100% cloud-managed and self-configuring. Once connected to power and network, it automatically provisions itself through the Meraki cloud. Remote deployment, configuration, monitoring, and troubleshooting can all be performed through the browser-based Meraki Dashboard from anywhere, with automatic firmware updates delivered over the cloud.
