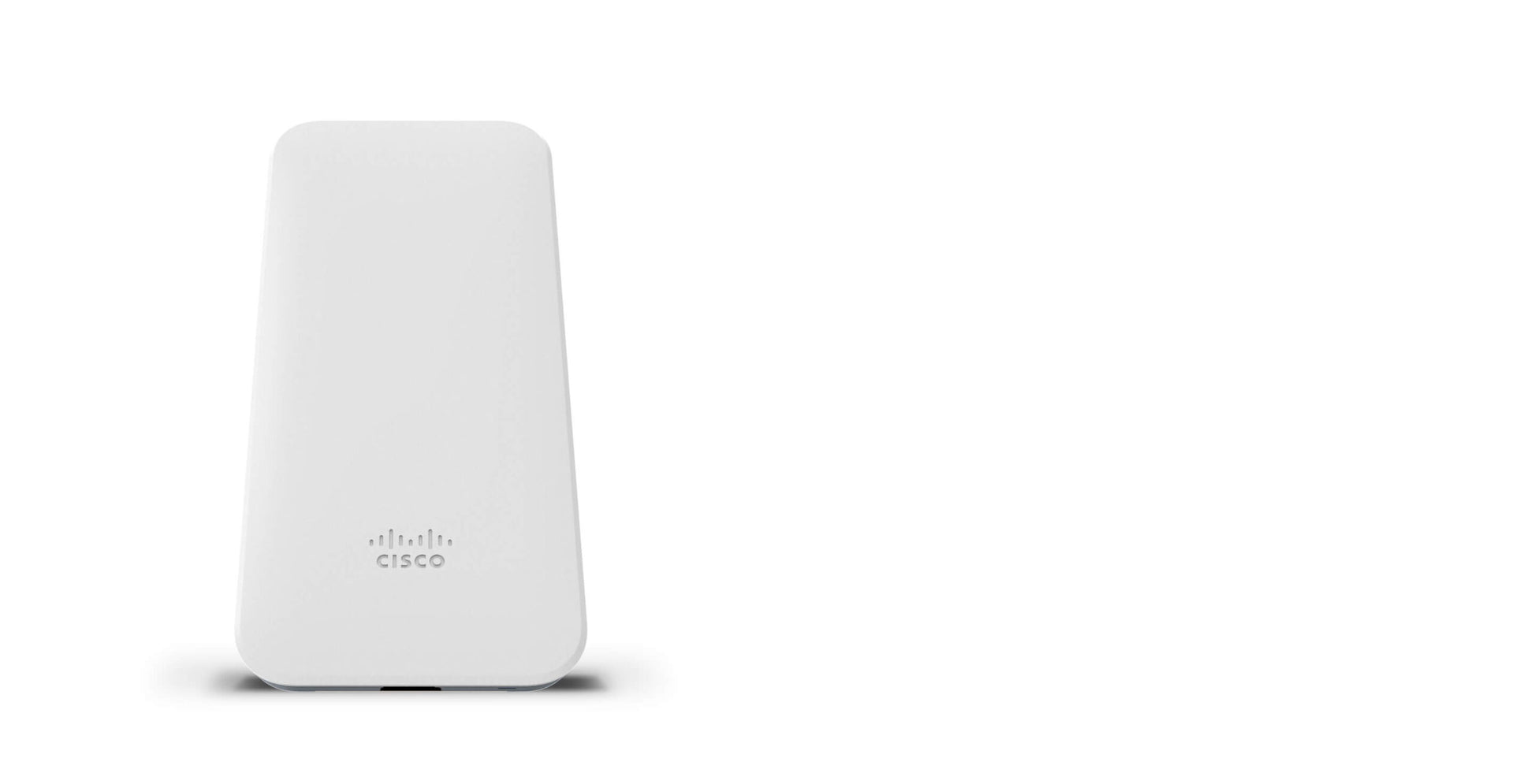

• Cisco Meraki MR70E-HW outdoor Wi-Fi 5 access point, white plastic
1 1

Meraki

Meraki MR70E-HW | MR70 Wi-Fi 5 Outdoor Access Point, IP67

MR70E-HW

Stock Status: Enquire

Request Quote
Sale Sold out
Shipping calculated at checkout.
20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MR70 is a dual-band, cloud-managed Wi-Fi 5 (802.11ac Wave 2) outdoor access point with 2x2:2 MU-MIMO and up to 1.3 Gbps aggregate data rate. It is built for basic, rapid outdoor and low-density deployments in an IP67-rated enclosure with integrated omnidirectional antennas. A single Gigabit Ethernet port provides both data and 802.3af PoE power, and the unit mounts to a wall, solid ceiling or pole with the included cradle.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Application-aware traffic shaping with integrated Layer 7 packet inspection
- Integrated enterprise security and guest access
- Built-in WIPS for threat detection and remediation
- Self-configuring, plug-and-play deployment with cloud management
- Self-healing automatic mesh capability
- Integrated location analytics and heat map
- Opportunistic security and RF scanning

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Wi-Fi 5 (802.11ac Wave 2), dual-band 2.4 GHz and 5 GHz
- 2x2:2 MU-MIMO, up to 1.3 Gbps aggregate data rate
- 5 GHz radio with 80 MHz channel widths; 2.4 GHz radio with 40 MHz channel widths
- Integrated omni-directional antennas (4.5 dBi at 2.4 GHz, 4.7 dBi at 5 GHz); external antennas not supported
- 1 x 100/1000 BASE-T Ethernet (RJ45) port, 802.3af/802.3at PoE
- Operates at full power with 802.3af PoE; 11 W maximum power consumption
- IP67 environmental rating
- Operating temperature -20 °C to 55 °C; humidity 5% to 95%
- Dimensions 245 x 115 x 30 mm; weight 0.45 kg
- Mounts to wall, solid ceiling or pole using the included mount cradle
- EN50155:2017 (Railway) and RoHS compliant

FAQs

Q: Does the MR70 support external antennas?
A: No. The MR70 uses integrated omni-directional antennas (4.5 dBi at 2.4 GHz and 4.7 dBi at 5 GHz) and does not support external antennas.

Q: How is the MR70 powered?
A: It is powered over its single Gigabit Ethernet port using 802.3af or 802.3at PoE. It operates at full power on 802.3af and draws 11 W maximum.

Q: What environmental conditions can it handle?
A: The MR70 has an IP67 rating and operates from -20 °C to 55 °C with 5% to 95% humidity, making it suited to outdoor installation.

Q: What mounting options are available?
A: The included mount cradle allows installation on a wall, solid ceiling or pole.

Q: Which Wi-Fi standard and radio configuration does it use?
A: It is a dual-radio Wi-Fi 5 (802.11ac Wave 2) access point with 2x2:2 MU-MIMO, offering up to 1.3 Gbps aggregate data rate across the 2.4 GHz and 5 GHz bands.
