Meraki MA-MNT-MV-49 | MV Wall Arm Mount Bracket for MV84X Camera
SKU:MA-MNT-MV-49
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

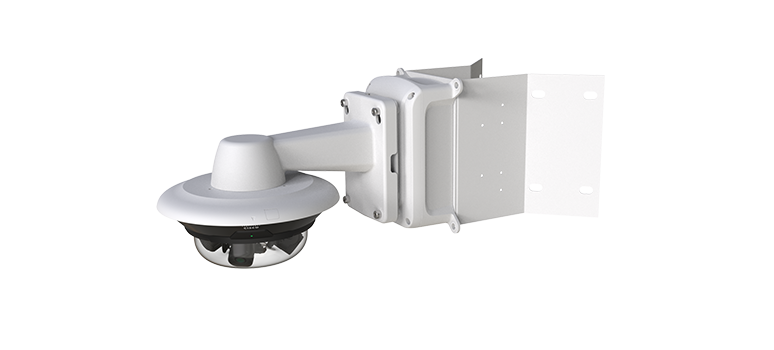

The MA-MNT-MV-49 is a wall arm mount bracket for the Meraki MV84X multi-imager smart camera. It extends the camera outward and downward from a vertical surface, giving a clear downward-facing view when side-mounting on a wall, indoors or outdoors.
The bracket has a cable opening so the camera's Ethernet cable can be routed through the wall. A wall mount alignment sticker helps mark the pilot holes and the cable cutout, with a recommended 9.5 mm (3/8 in) pilot hole drill bit. The mounting hardware set covers 4 x 10x76 mm expansion screws with 19 mm flat washers, plus 3 x M6x15 screws with 13 mm flat washers and 10.5 mm spring washers.
This mount is specific to the MV84X. It also serves as the arm component in other MV84X configurations: it works with the MA-MNT-MV-79 Corner Mount Adapter to keep the camera facing downward on a corner, and pairs with the MA-MNT-MV-59 Junction Box and MA-MNT-MV-69 Pole Mount Adapter where the install calls for them.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- Extends the camera outward and downward from a vertical surface for a clear downward-facing view
- Cable passes through an opening in the wall mount bracket
- Alignment sticker simplifies marking pilot holes and the cable cutout
- Can be combined with the MA-MNT-MV-59 Junction Box where the mount cannot sit flush to the wall
- Can be combined with the MA-MNT-MV-69 Pole Mount Adapter for pole installations
- Used alongside the MA-MNT-MV-79 Corner Mount Adapter for corner installations
- Suitable for indoor or outdoor side-of-wall installs
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: Wall arm mount bracket
- Compatible camera: Meraki MV84X
- Use case: Wall arm mounting
- Cable routing: Through the wall opening in the bracket
- Expansion screws: 4 x 10x76 mm
- Flat washers: 4 x 19 mm
- M6x15 screws: 3
- Flat washers for M6 screws: 3 x 13 mm
- Spring washers: 3 x 10.5 mm
- Recommended pilot hole drill bit: 9.5 mm (3/8 in)
- Installation aid: Wall mount alignment sticker for pilot holes and cable cutout
- Powered: No, passive accessory
FAQs
Q: Which Meraki camera does this mount fit?
A: It is designed for the Meraki MV84X multi-imager camera. Other MV generations use different wall brackets, so do not assume it fits other MV models.
Q: Does this mount need a licence or power?
A: No. It is a passive mounting accessory with no licence or power requirement. The MV84X camera it holds is powered via PoE and requires a Meraki MV licence.
Q: Can it be used on a corner or a pole?
A: Yes, as part of a combination. For corner installs it is used with the MA-MNT-MV-79 Corner Mount Adapter, which keeps the camera facing downward. For pole installs it can be combined with the MA-MNT-MV-69 Pole Mount Adapter.
Q: What if the mount cannot sit flush to the wall?
A: It can be combined with the MA-MNT-MV-59 Junction Box for installs where a flush fit is not possible.
Q: How is the camera cable routed?
A: The Ethernet cable passes through an opening in the bracket and into the wall. The alignment sticker marks both the pilot holes and the cable cutout.
