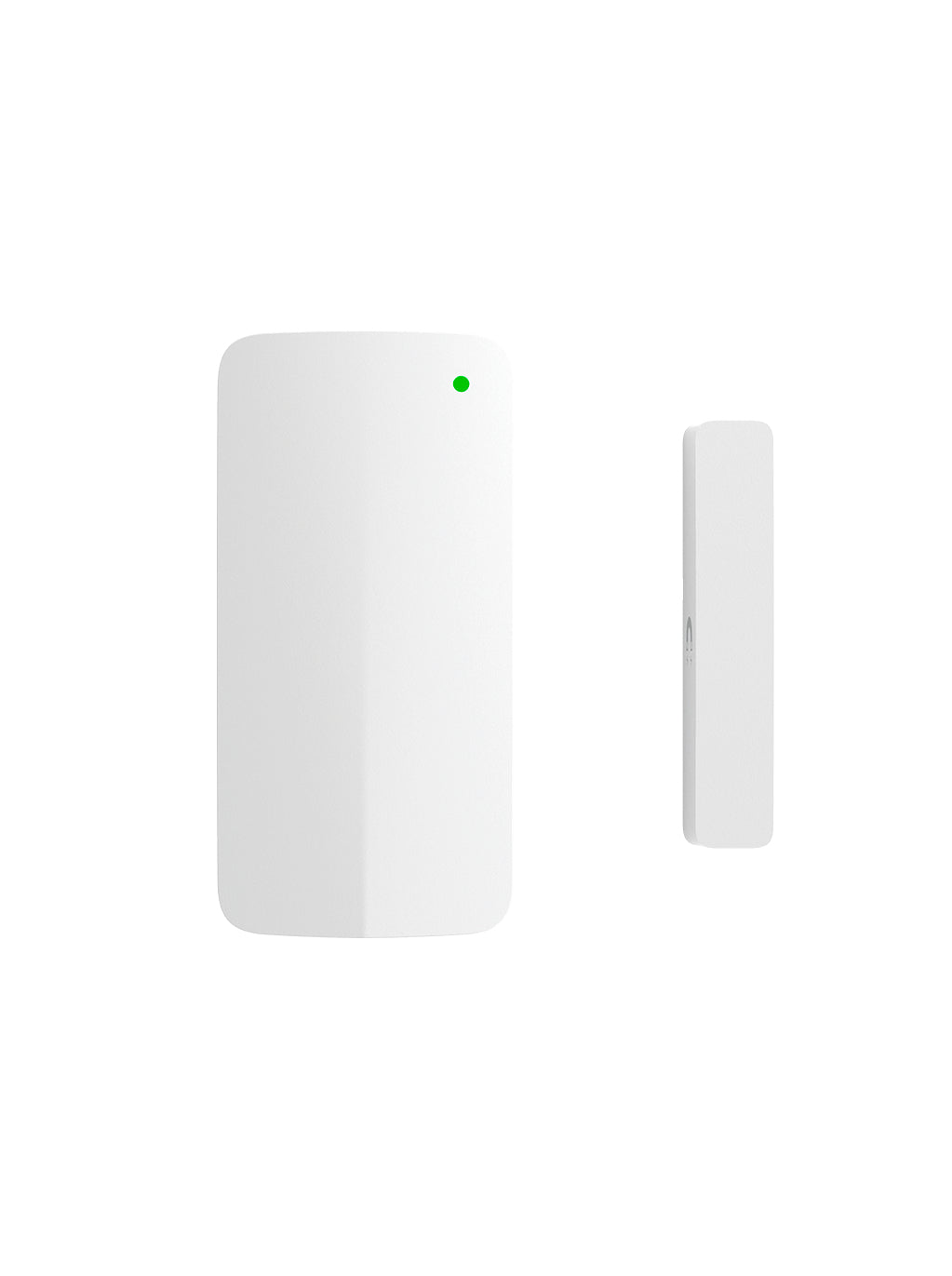

• Meraki MT20-HW door window sensor with green light sleek design
1 1

Meraki

Meraki MT20-HW | MT Cloud-Managed Door Open/Close Sensor, Bluetooth

MT20-HW

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Meraki MT20 is a battery-powered, cloud-managed indoor open/close sensor from the Meraki MT sensor family. It uses a magnet and a Hall effect sensor to detect when doors, gates and cabinets are opened or closed. That makes it suited to catching intrusions in restricted areas, flagging doors left ajar, and tracking access trends such as back-entrance traffic.

The sensor communicates over Bluetooth Low Energy 4.2 in the 2.400-2.4835 GHz band. It runs on a single user-replaceable AA battery rated for up to five years, polls every 20 minutes or immediately on a state change, and stores 4,000 data points onboard, about five days at the default rate. The main unit measures 81.2 x 39.7 x 19.5 mm and operates from 0 to 55 C at up to 95% relative humidity. This is the hardware only SKU. Each MT sensor needs a Meraki MT licence (LIC-MT-XY, 1, 3, 5 or 7 years) to operate.

It connects through a Meraki MR access point or MV smart camera in range, which acts as the gateway, and is managed from the Meraki dashboard. APIs and webhooks allow integration with third-party alerting and analytics tools.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Cloud-managed through the Meraki dashboard, with no on-premises server required
- Tamper detection reporting
- Connects automatically to MR access points and MV smart cameras in the network
- Flexible alerting via email, SMS and push notifications
- Trust Anchor module authenticates the device and encrypts all communications
- Five-year battery life on one user-replaceable AA battery
- Advanced telemetry data
- APIs and webhook alerts for third-party alerting and data analysis
- Mounts on doors, gates, cabinets and more

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Sensor type: Open/close sensor, intrusion detection using a magnetic field via a Hall effect sensor
- Wireless: Bluetooth Low Energy
- IEEE standard: 802.15.1 (Bluetooth Low Energy 4.2)
- Operating frequency: 2.400-2.4835 GHz
- Power: One AA battery, user-replaceable
- Battery life: Up to five years
- Data polling frequency: Every 20 minutes, or immediately upon state change
- Onboard data storage: 4,000 data points (about five days at the default sampling rate)
- Compatible gateways: Meraki MR access points and MV smart cameras
- Security: Bluetooth Low Energy messages encrypted and authenticated using Cisco Trust Anchor technology
- Operating temperature: 0 to 55 C (32 to 131 F)
- Relative humidity: 0 to 95%
- Dimensions, main device (L x W x H): 81.2 x 39.7 x 19.5 mm
- Dimensions, magnet cover (L x W x H): 59.5 x 12 x 13.35 mm
- Interfaces: Multicolour multifunction status LED, general purpose button, reset button, battery compartment
- Licence: Meraki MT licence (LIC-MT-XY) required

FAQs

Q: Does the MT20 need a licence?
A: Yes. Each Meraki MT sensor needs a Meraki MT Enterprise License and Support licence (LIC-MT-XY, where X is 1, 3, 5 or 7 years) to operate. The licence is separate from the MT20-HW hardware. Every dashboard organisation includes five free MT licences to get started.

Q: What does the MT20 connect to?
A: It connects over Bluetooth to a Meraki MR access point or MV smart camera in range, which acts as its gateway. No separate gateway device is needed.

Q: How is the MT20 powered?
A: It runs on a single user-replaceable AA battery rated for up to five years of life. It needs no external power or PoE.

Q: How often does the sensor report?
A: It polls every 20 minutes, or immediately when the door state changes. It also stores 4,000 data points onboard, about five days at the default rate.

Q: Can I claim it on my Meraki dashboard?
A: Yes. Every Meraki device XS Network Tech supplies can be claimed on your Meraki dashboard.
