Meraki MA-MNT-MV-31 | MV22 Series Wall-Mount L-Bracket Camera Mount
SKU:MA-MNT-MV-31
Stock Status: Enquire
Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.
Description
Description

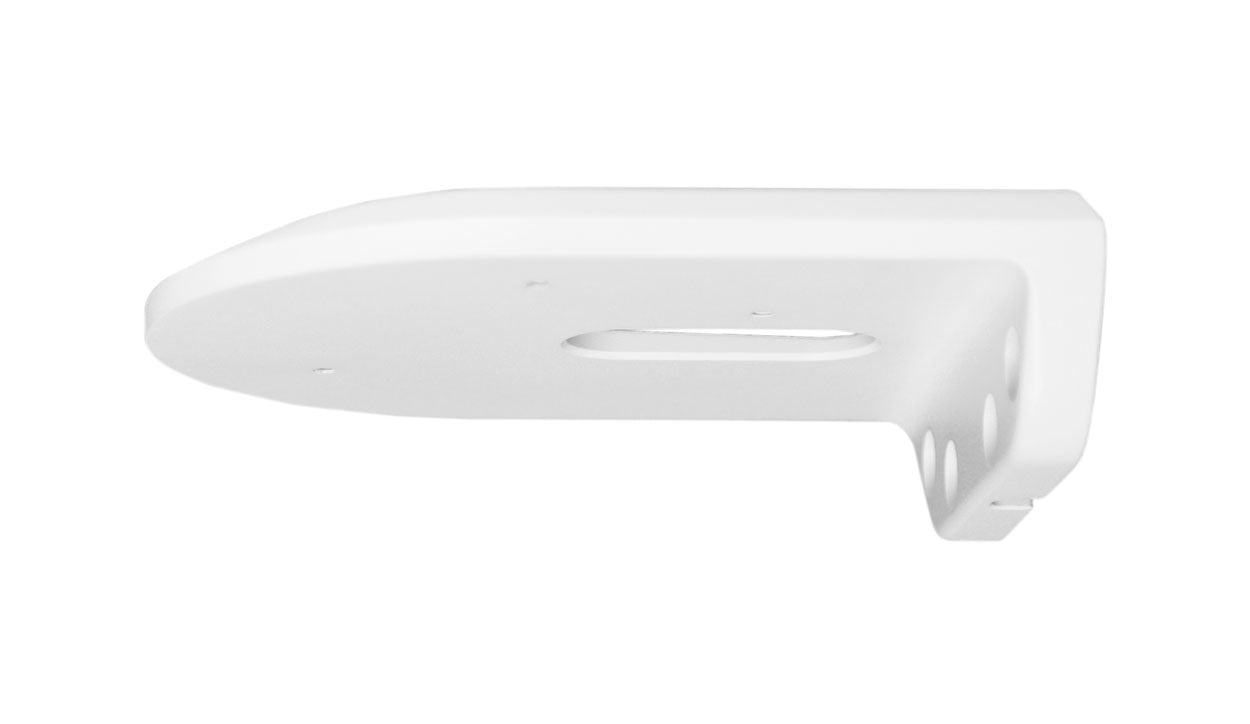

This L-shaped wall-mount bracket is built for Meraki MV22 series indoor dome cameras. It holds the camera perpendicular to the mounting surface so the lens faces downward, which suits offices, retail floors and other indoor spaces where a wall is the only practical fixing point.
The bracket measures 48.0 mm x 130.0 mm x 156.2 mm and weighs 0.503 kg. It is a passive accessory with no power requirement of its own. The MV22 camera it carries is powered over PoE, for example with the MA-INJ-4 802.3at PoE injector. No licence is needed for the bracket itself, although the MV cameras it mounts require a Meraki MV licence.
This bracket fits the MV22 and MV22X only. Third-generation cameras such as the MV13, MV23, MV33, MV63, MV73 and MV93 use the MA-MNT-MV-38 L-bracket instead.
Enquire with XS Network Tech for new or used pricing and availability.
Features
Features
- L-shaped design lets MV22 series cameras face downward while mounted to a wall
- Compact wall mount holds the camera perpendicular to the mounting surface
- Compatible with MV22 and MV22X cameras
- Passive accessory with no power or licence requirement of its own
Warranty
Warranty
All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.
All technical data should be verified on the manufacturer data sheets.
View full details
What is the difference between add to cart and request a quote?
Add to Cart lets you purchase in-stock products immediately at listed pricing.
Request a Quote is for customised pricing, volume-based deals, or orders that need a tailored response.
specs-tabs
Collapsible content
Technical Specifications
FAQs
Technical Specifications
- Type: L-shaped wall-mount bracket
- Compatible with: MV22, MV22X
- Dimensions (L x W x D): 48.0 x 130.0 x 156.2 mm
- Weight: 0.503 kg
- Ordering ID: MA-MNT-MV-31
- Power: Not applicable, passive mounting accessory
FAQs
Q: Which Meraki cameras does this bracket fit?
A: It fits the MV22 and MV22X indoor dome cameras only. Third-generation cameras such as the MV13, MV23, MV33, MV63, MV73 and MV93 use the MA-MNT-MV-38 L-bracket instead.
Q: Does the bracket need a licence?
A: No. The bracket is a passive accessory, but the MV camera mounted on it requires a Meraki MV licence.
Q: How is the camera powered when wall mounted?
A: The bracket needs no power. The MV22 camera is powered over PoE, for example with the MA-INJ-4 802.3at PoE injector.
Q: Which way does the camera face on this bracket?
A: The L-shaped design holds the camera perpendicular to the wall so that it faces downward.
