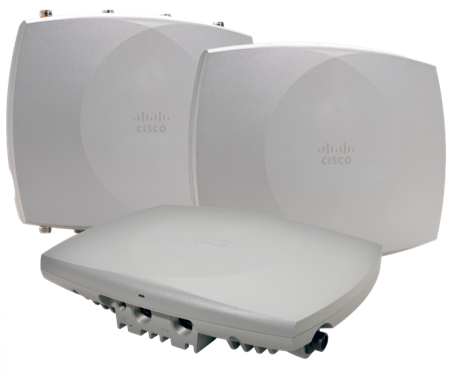

Cisco CW9177I | Wi-Fi 7 Tri-Band 4x4 Outdoor Access Point, 10G, IP67

SKU:CW9177I

Request Quote
Sale Sold out
Shipping calculated at checkout.

Stock Status: Enquire

20-min response

Need a quote or bulk pricing? Answered within 20 minutes, Sydney business hours.

Description

The Cisco CW9177I is an outdoor tri-radio, tri-band Wi-Fi 7 (802.11be) access point from the Cisco Wireless 9177 range, built with internal omnidirectional antennas. It suits stadiums, campuses, industrial sites, ports, rail yards and smart city deployments, and its built-in BLE and GNSS/GPS support asset tracking and location services. The IP66/IP67-rated enclosure operates from -40 to 65 C.

The radios run 4x4 MU-MIMO with up to 12 spatial streams across 2.4 GHz, 5 GHz and 6 GHz, with antenna gain of 4/6/6 dBi on those bands. PHY data rates reach up to 18 Gbps in tri-radio mode, with 320 MHz channels on 6 GHz. Uplinks are one 100M/1G/2.5G/5G/10G Multigigabit RJ-45 port and one 1/10G SFP/SFP+ port. A dedicated scanning radio provides CleanAir Pro interference detection. Full 4x4 operation needs 802.3bt PoE, with a maximum draw of 45.1 W, or a DC power adapter can be used.

The same unified hardware can be managed from the Meraki Dashboard (MR 32.2.x or later) or on-premises with Catalyst 9800 controllers. It requires a Cisco Networking Subscription licence. Mounting options include CW-MNT-STRAND1A, CW-MNT-HORZ2 and MA-MNT-MR-16, with CW-SFP-KIT1, CW-ACC-CVR2 and CW-ACC-KIT2 available as accessories.

Enquire with XS Network Tech for new or used pricing and availability.

Features

- Wi-Fi 7 with Multi-Link Operation, 4096 QAM, preamble puncturing and OFDMA
- Tri-radio, tri-band design with up to 12 spatial streams
- Dedicated scanning radio with CleanAir Pro interference detection on 2.4, 5 and 6 GHz
- Integrated BLE radio for asset tracking, wayfinding and analytics
- Built-in GNSS/GPS for Automated Frequency Coordination and regulatory-domain selection
- Cisco Ultra-Reliable Wireless Backhaul (URWB) capability
- AP Power Save mode switches radios off during off-hours to reduce power use
- Client steering moves 6 GHz-capable clients onto the 6 GHz radio
- Unified hardware managed from the Meraki cloud or on-premises with Catalyst 9800 controllers

Warranty

All products sold by XS Network Tech include a 12-month warranty on both new and used items. Our in-house technical team thoroughly tests used hardware prior to sale to ensure enterprise-grade reliability.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Wi-Fi standard: Wi-Fi 7 (802.11be), tri-radio, tri-band
- Bands: 2.4 GHz, 5 GHz, 6 GHz (or 2.4 GHz plus dual 5 GHz)
- MIMO: 4x4 MU-MIMO, up to 12 spatial streams
- Peak PHY data rate: up to 18 Gbps in tri-radio mode
- Channel widths: 20/40/80/160/320 MHz on 6 GHz, 20/40/80/160 MHz on 5 GHz, 20 MHz on 2.4 GHz
- Antennas: internal omnidirectional, 4 dBi (2.4 GHz), 6 dBi (5 GHz), 6 dBi (6 GHz)
- Uplink port: 1x 100M/1G/2.5G/5G/10G Multigigabit Ethernet (RJ-45)
- Fibre port: 1x 1/10G SFP/SFP+
- Console: RJ-45 management console port
- Power input: 802.3bt PoE, 802.3at PoE+ or DC power adapter
- Maximum PoE draw: 45.1 W on 802.3bt (4x4, 10G uplink)
- Power on 802.3at: 30 W maximum, reduced 2x2 tri-band operation
- Operating temperature: -40 to 65 C excluding solar load
- Ingress protection: IP66/IP67
- Wind resistance: up to 161 km/h sustained, 266 km/h gusts
- Dimensions: 352.2 x 270 x 76.2 mm without mounting brackets
- Weight: 4.11 kg
- Transmit power: up to 26 dBm (398 mW)
- Security: WPA2/WPA3, 802.1X, Enhanced Open/OWE

FAQs

Q: Does the CW9177I need a licence?
A: Yes. It requires a Cisco Networking Subscription licence. One unified licence type covers cloud (Meraki), on-premises or hybrid management.

Q: What PoE does the CW9177I need?
A: Full 4x4 operation needs 802.3bt PoE, with a maximum draw of 45.1 W. On 802.3at PoE+ it falls back to 2x2 tri-band at up to 30 W, and 802.3af is for staging only with radios off. A DC power adapter can also be used. Enable LLDP or CDP for correct power negotiation.

Q: What software and controllers does it work with?
A: It runs Meraki MR 32.2.x or later for cloud management, or Cisco IOS XE 26.2.1 or 26.1.3 or later for on-premises use. It works with Catalyst 9800 Series controllers and Catalyst 9000 switches with Embedded Wireless Controller in SDA mode.

Q: Which mounting kits and accessories work with the CW9177I?
A: The supported mounting kits are CW-MNT-STRAND1A, CW-MNT-HORZ2 and MA-MNT-MR-16. Accessories include CW-SFP-KIT1 (SFP gland kit), CW-ACC-CVR2 (paintable cover) and CW-ACC-KIT2 (RJ45 gland, ground lug, DC plug, conduit adapter).

Q: How does the CW9177I differ from the CW9177D and CW9177E?
A: The CW9177I has internal omnidirectional antennas. External antennas apply to the CW9177E model only.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
